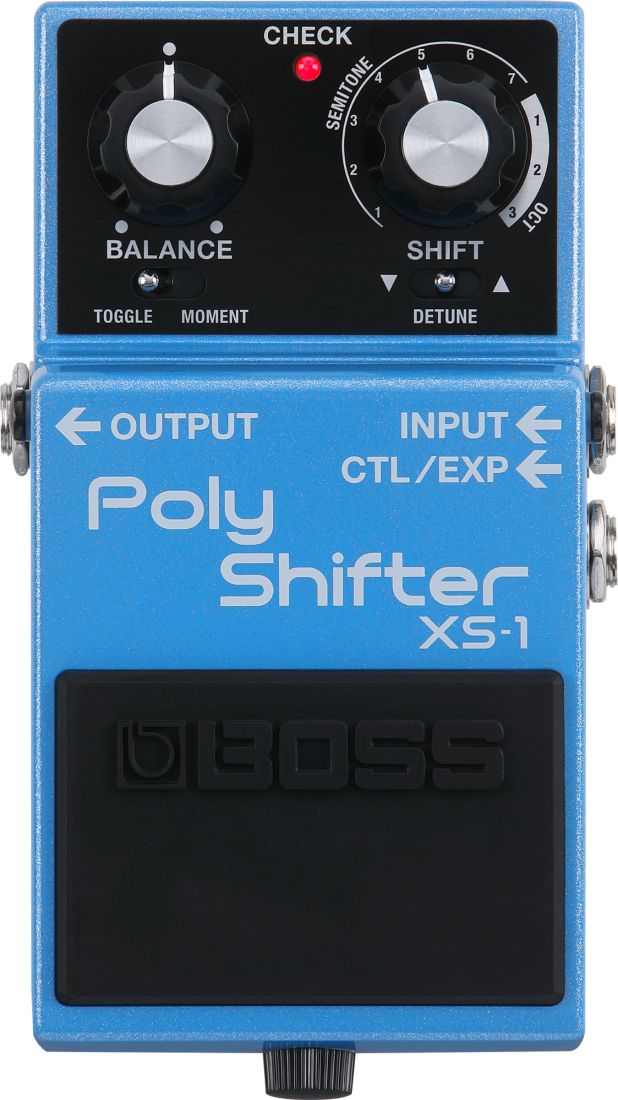

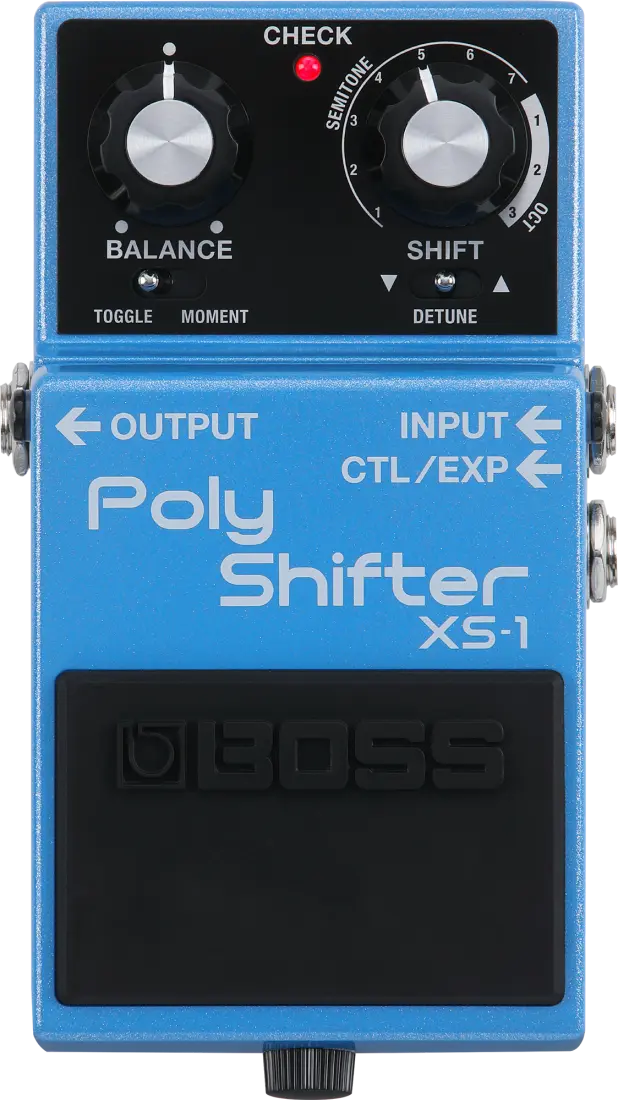

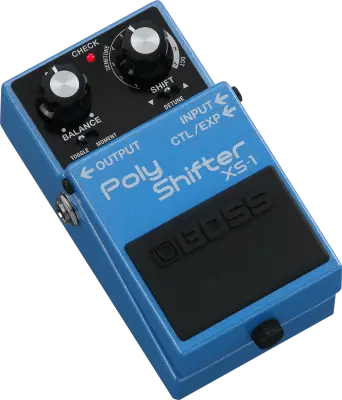

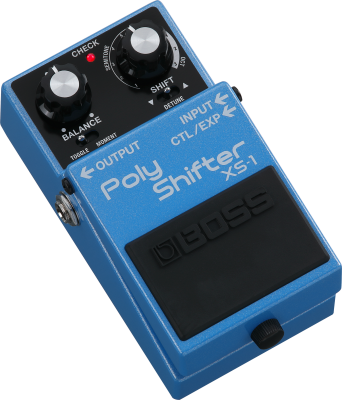

BOSS XS-1 Poly Shifter
Additional Photos:
Features
• Instant retuning capability without pausing your creativity• Brand-new algorithm leverages ultra-fast attack, preserving clarity, technique, and instrument character
• Polyphonic pitching delivers stunning, glitch-free performance, even when playing full chords or fast melodic lines
• Since it's a natural-sounding pitch shifter, it pairs well with other effects
• Fully supports bass frequencies
• Durable design ensures stable operation for gigging
• Natural pitch shifting with in a range of six octaves (three up to three down)
• Shift knob allows users to quickly select between 1-7 semitone or 1-3 octave intervals
• Detune mode adds depth and richness to your tones like doubling effect
• Shift Up function delivers convenient capo-style operation for changing key in a song or for tapping style performance
• Emulate bass instruments on guitar by shifting down one octave
• Craft harmonized solos and effects using semitone shifts
• The Balance knob allows quick, easy adjustment between the wet and dry signals
• The Shift knob provides effortless control over the pitch shift amount
• The Shift switch toggles the pitch between up, down, or slightly detuned (20 cents)
• The Toggle/Moment switch selects between latching the effect on/off or activating it only while the onboard footswitch is pressed
• External footswitches allow to control over two different settings, so that you can control three different tunings in total
• Expression pedal allows to control the pitch shift in real-time like dynamic pitch bending effect
Specifications
AD conversion- 24 bits + AF method
- AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.
DA conversion
- 32 bits
Sampling Frequency
- 48 kHz
Nominal input level
- -20 dBu
Maximum Input Level
- +7 dBu
Input impedance
- 1 MΩ
Nominal output level
- -20 dBu
Maximum output Level
- +7 dBu
Output impedance
- 1 kΩ
Recommended load impedance
- 10 kΩ or greater
Bypass
- Buffered bypass
Controls
- BALANCE knob
- SHIFT knob
- PEDAL MODE switch
- SHIFT DIRECTION switch
- Pedal switch
Indicator
- CHECK indicator (Used for check battery)
Connectors
- INPUT jack: 1/4-inch phone type
- OUTPUT jack: 1/4-inch phone type
- CTL/EXP jack: 1/4-inch TRS phone type
- DC IN jack
Power supply
- AC adaptor
- Alkaline battery (6LR61 or 6LF22, commercially available) x 1
Current draw
- 120 mA
Dimensions
- 73 x 129 x 59 mm (2-7/8 x 5-1/8 x 2-3/8")
Weight (including battery)
- 410 g (15 oz)
