Ortofon Stylus 20 Replacement
Great Additions
Description

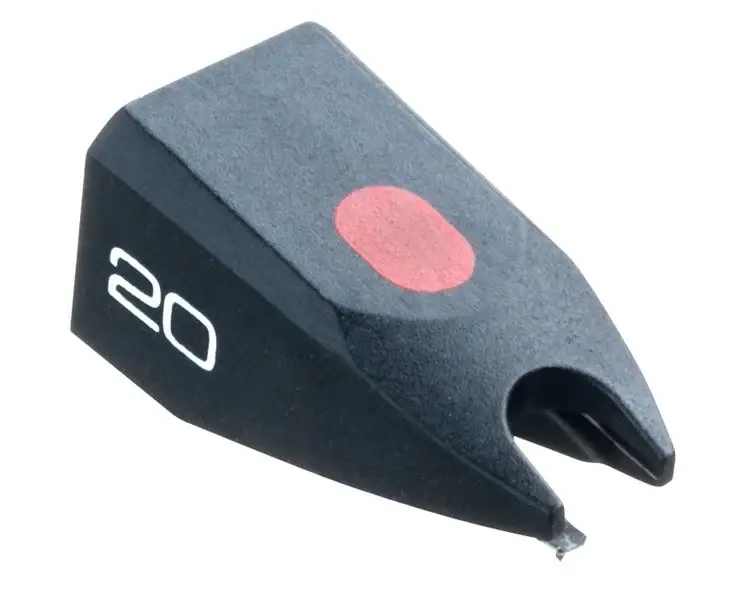

Ortofon stylus 20.
Recommended for the following cartridges: Super OM 20, OM 20, OMP 20, OMB 20, LM 20, Concorde 20, LM 20H, TM 20U, and TM 20H.
Tracking ability at 315 Hz: 70 um
Compliance, dynamic, lateral: 25 um/mN
Stylus tip radius: r/R 8/18 um
Tracking force range: 1.25-1.75 g (12.5-17.5 mN)
Tracking force, recommended: 1.5 g (15 mN)
Tracking angle: 20°
Stylus colour: Black
Recommended for the following cartridges: Super OM 20, OM 20, OMP 20, OMB 20, LM 20, Concorde 20, LM 20H, TM 20U, and TM 20H.
Specifications
Frequency response 20 Hz - 20 kHz: 20-20.000 Hz + 2 / - 3 dBTracking ability at 315 Hz: 70 um
Compliance, dynamic, lateral: 25 um/mN
Stylus tip radius: r/R 8/18 um
Tracking force range: 1.25-1.75 g (12.5-17.5 mN)
Tracking force, recommended: 1.5 g (15 mN)
Tracking angle: 20°
Stylus colour: Black
Q & A
There are currently no questions for this product.
Reviews
There are currently no reviews for this product. Be the first to write one!
Reserve in Store
| Product | SKU | Qty |
|---|---|---|
| Stylus 20 Replacement | 830840 |
