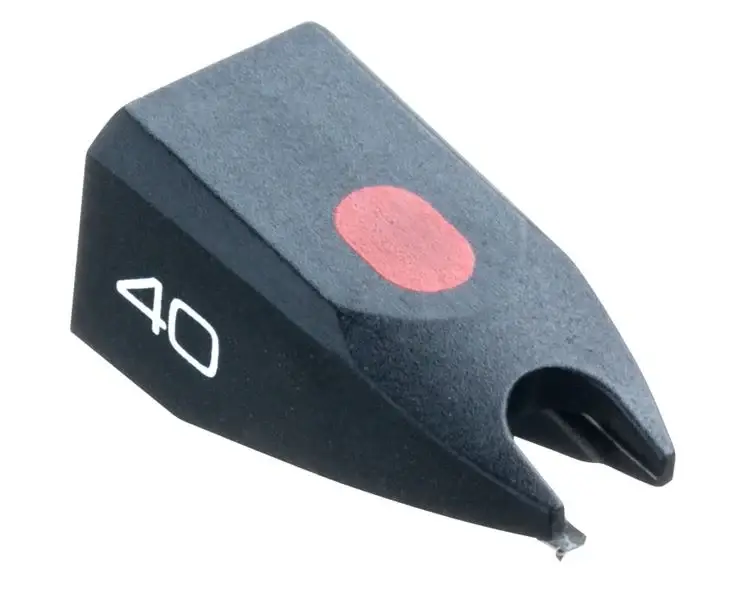

Ortofon Stylus 40 Replacement
Ortofon stylus 40.
Recommended for the following cartridges:
OM 40, OM 40 GOLD.
Tracking ability at 315 Hz: 80 um
Compliance, dynamic, lateral: 22 um/mN
Stylus type: Nude FG 70
Stylus tip radius: r/R 5/70 um
Tracking force range: 1.25-1.75 g (12.5-17.5 mN)
Tracking force, recommended: 1.5 g (15 mN)
Tracking angle: 20°
Cartridge weight: stylus = 1 g
Recommended for the following cartridges:
OM 40, OM 40 GOLD.
Specifications
Frequency response 20 Hz - 20 kHz: 2 / - 3 dBTracking ability at 315 Hz: 80 um
Compliance, dynamic, lateral: 22 um/mN
Stylus type: Nude FG 70
Stylus tip radius: r/R 5/70 um
Tracking force range: 1.25-1.75 g (12.5-17.5 mN)
Tracking force, recommended: 1.5 g (15 mN)
Tracking angle: 20°
Cartridge weight: stylus = 1 g
