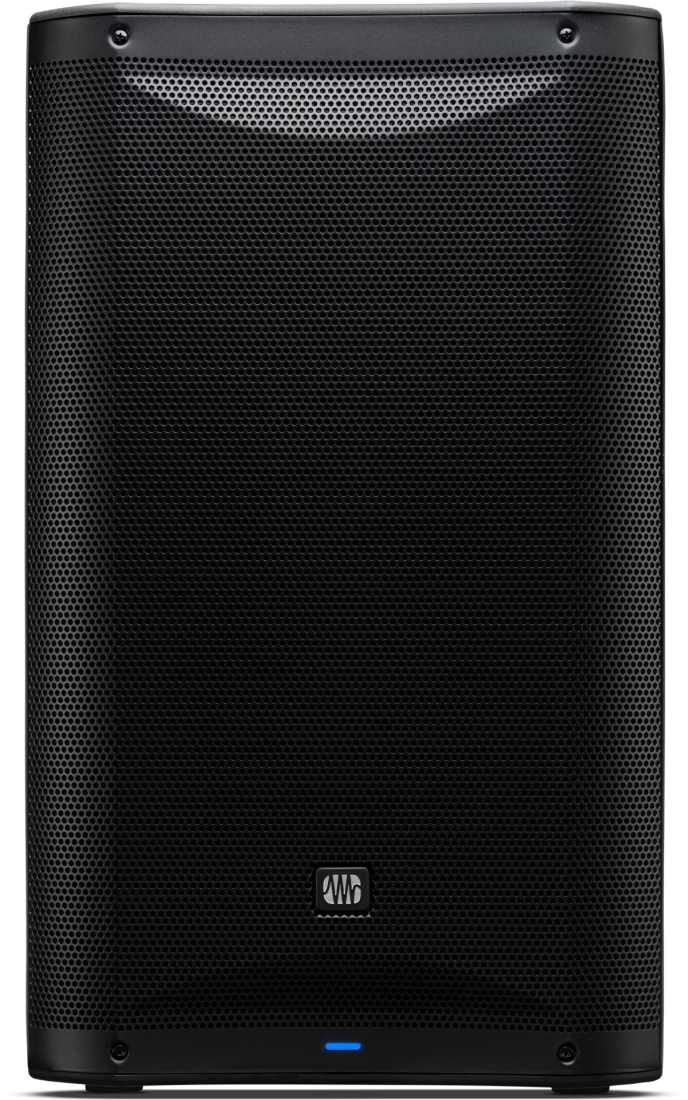

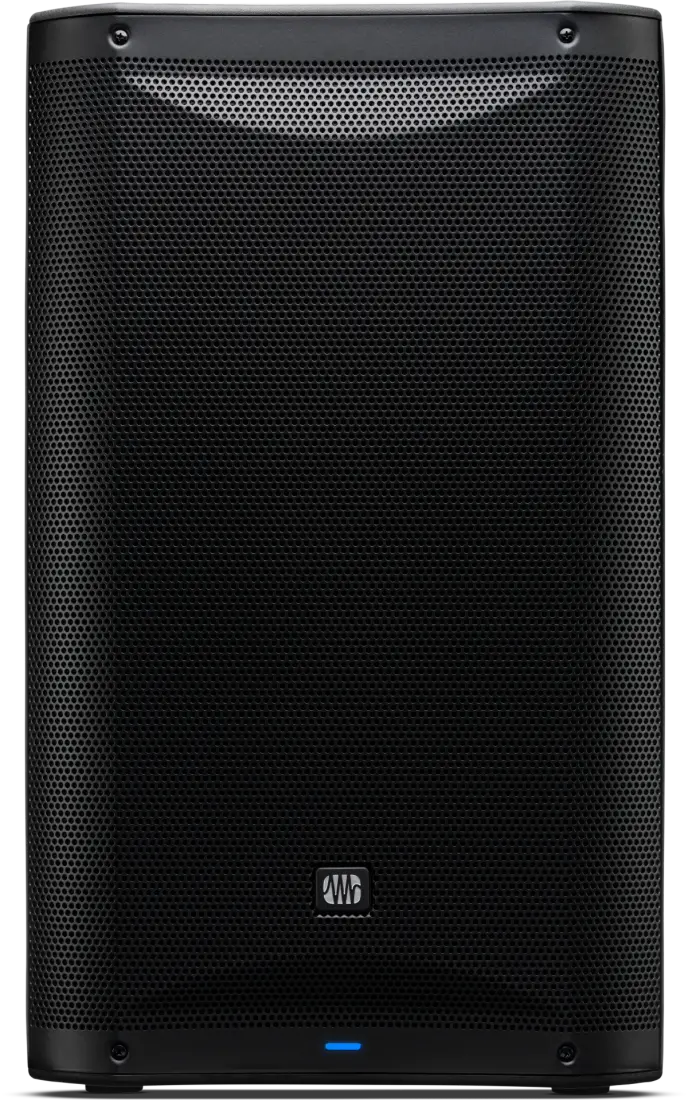

PreSonus AIR XD 12 2-Way Active Sound-Reinforcement Loudspeaker
Additional Photos:
A large, full-color LCD screen provides clear metering and easy access to onboard system tuning, EQ, and more. Choose from presets tailored for front-of-house, monitor wedges, music playback, speech clarity, or enhanced low-end warmth. Adjustable treble and bass controls offer 10 dB boost or cut to fine-tune your sound, while location presets optimize performance for stand, bracket, or flown applications.
Connectivity is versatile, with two mic/line combo inputs, an auxiliary input, and a mix output for flexible integration. The built-in Bluetooth module delivers fast, reliable wireless streaming and includes TWS Bridge Mode to pair two speakers for true stereoideal for weddings, parties, corporate events, and more.
The multi-angle cabinet features nonskid rubber feet on the bottom for front-of-house use and on the side for wedge monitoring. Rig it using M10 fly points, ground-stack it for portable setups, mount on a tripod, or place atop an AIR-series subwoofer using an optional pole. The integrated dual-position pole mount lets you position the speaker level or at a 7.5° downward tilt.
With professional-grade features, exceptional sound quality, and flexible connectivity, the AIR XD 12 is a versatile choice for both mobile and installed sound applications requiring power, clarity, and portability.
Features
• Custom 12-inch low-frequency driver with enlarged 2.56" voice coil for extended low-end response down to 40 Hz• 1.35" High-frequency compression driver with PEEK diaphragm for clear, detailed, and durable highs
• 1,500W Class D bi-amplification for clean, efficient power and up to 132 dB SPL
• Onboard DSP with performance presets, 10 dB EQ, and tuning modes for speech, music, FOH, or monitor use
• Full-color 2.6" LCD for fast, intuitive metering and system control
• Built-in Bluetooth with TWS Bridge Mode for true wireless stereo pairing
• Integrated 3-channel mixer with combo mic/line and aux inputs for flexible connectivity
• 90° horizontal dispersion and 60° vertical dispersion
• Frequency Response: 51 Hz to 20 kHz (-3 dB), 48 Hz to 20 kHz (-10 dB)
• Rugged, portable enclosure with ergonomic handles and multiple mounting options: flown, pole-mounted, ground-stacked, or floor wedge
Specifications
ElectronicsInputs: Four - (2 x XLR/TRS Mic/Line Combo, 1 x 1/8 TRS Stereo, Bluetooth Stereo)
Auxiliary Input: 1/8 in (3.5 mm) Stereo
Line Out: One - 1 x XLR Mix Out
Channels: Three
Connectivity: Bluetooth
Voltage: 120V
Power Consumption: 3.3A (230V-50 Hz), 6.6A (120V)
Bluetooth: Bluetooth® V5.0
Performance
Peak SPL: 132 dB
Total Power Output: 1500 Watts
Inputs
Line Input Connection Type: XLR/TRS Mic/Line Combo
Line Inputs Impedance: 30K ohm
Line Inputs Maximum Level: +14dBu
Microphone Preamp Input Impedance: 30K ohm
Outputs
Line Outputs Connection Type: XLR Male, Balanced
Speakers
Crossover Frequency: 1.6 kHz
Speaker Type: Active 2-Way
Coverage Pattern: 90 degree (H) x 60 degree (V)
Hardware
Cabinet Material: H-PP Molded
Handle: 1 Top, 1 Side
Audio Controls: Gain, Volume, Hi/Lo EQ
Cooling: Passive radiator
Grille Material: 1.2 mm Steel
Pole Socket: Dual Position (0°, 7.5°)
