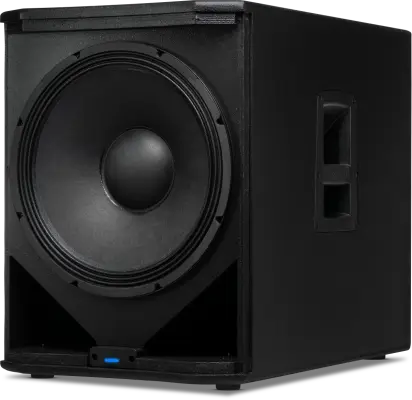

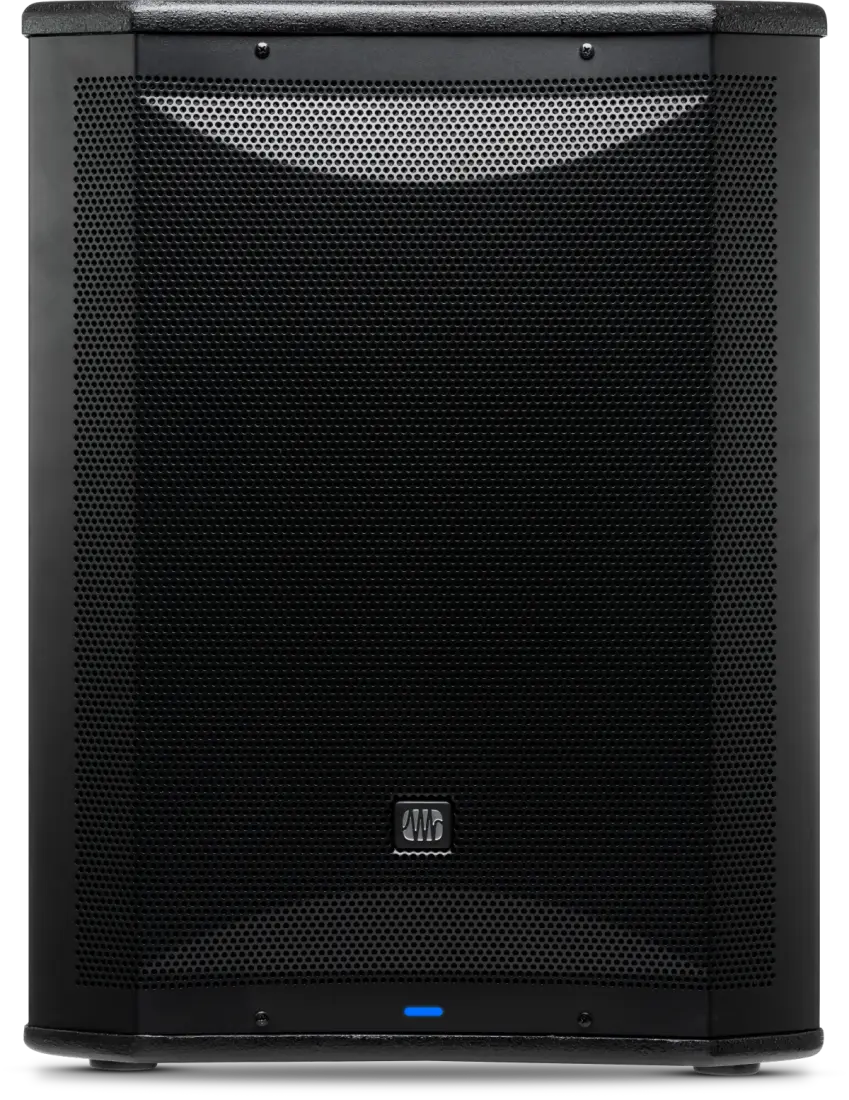

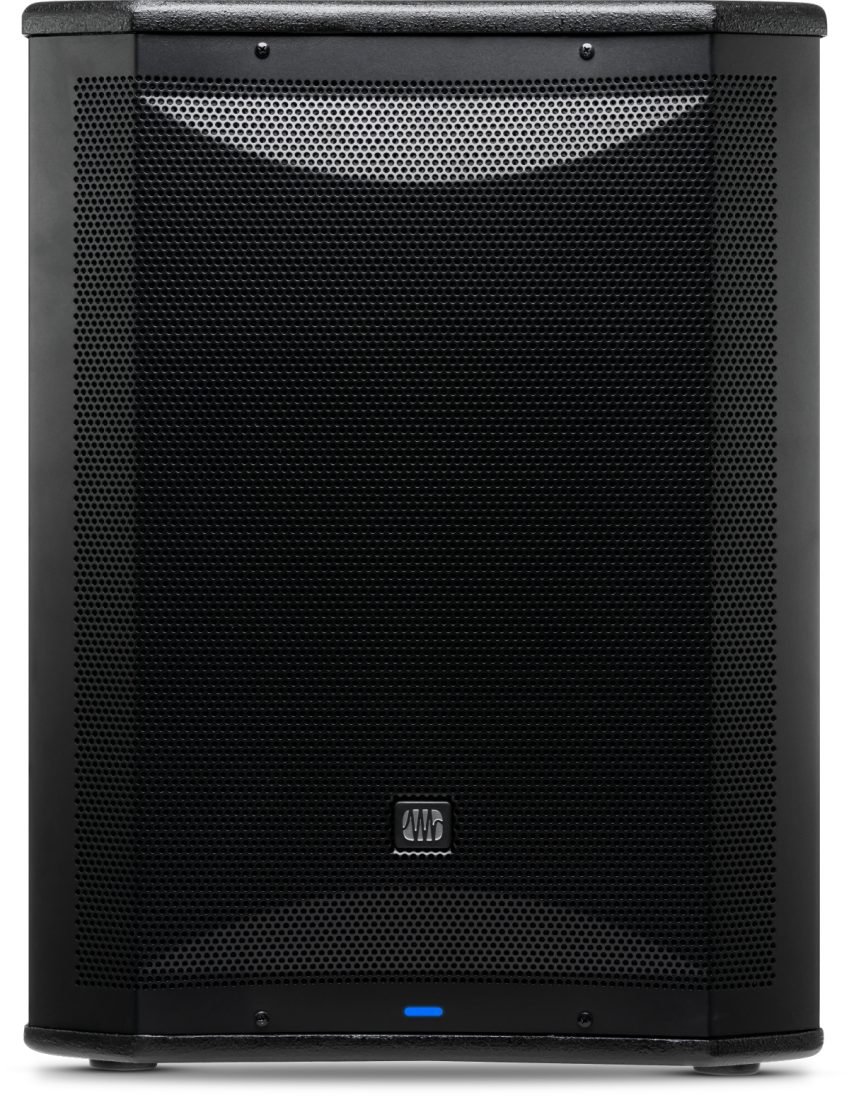

PreSonus AIR XD Sub 15 1 x 15” Active Extended Definition Subwoofer
Additional Photos:
Advanced onboard DSP makes system integration fast and easy. A variable lowpass filter (60 Hz150 Hz) lets you fine-tune the crossover point for a seamless transition to your tops, while custom presets optimize performance with AIR XD full-range loudspeakers. An onboard alignment delay and array presets simplify the setup of ground-stacked and end-fire subwoofer arrays. A vibrant full-color display provides intuitive control and precise metering.
Connectivity is flexible, with two mic/line combo inputs and direct outputs to accommodate a wide range of signal paths. Integrated Bluetooth with TWS Bridge Mode allows you to pair with a second speaker for wireless stereo playbackideal for mobile DJs, weddings, corporate events, and more.
Despite its high output, the AIR XD Sub 15 is compact, lightweight, and road-ready. Housed in a durable 15mm wood enclosure, it includes ergonomic side handles, ground-stacking features, and built-in hardware for the included caster kitmaking it easy to transport and deploy in any environment.
Features
• Custom 15-inch low-frequency driver with enlarged 3" voice coil for deep, dynamic bass and minimal distortion• 2,000W Class D amplifier delivers powerful, efficient low-end performance
• Frequency Response: 39 Hz to 95 Hz (-3 dB), 32 Hz to 131Hz (-10 dB)
• 128 dB SPL (max)
• Advanced DSP with variable lowpass filter, alignment delay, and cardioid/end-fire array presets
• Integrated "Mo' Bass" enhancement for added low-frequency punch
• Full-color 2.6" LCD for metering, DSP control, and tuning options
• Built-in Bluetooth with TWS Bridge Mode for wireless stereo pairing with AIR XD full-range models
• Dual combo inputs with direct outputs for flexible routing and system integration
• Rugged wood enclosure with ergonomic handles, ground-stacking provisions, and built-in caster mounting for portability
Specifications

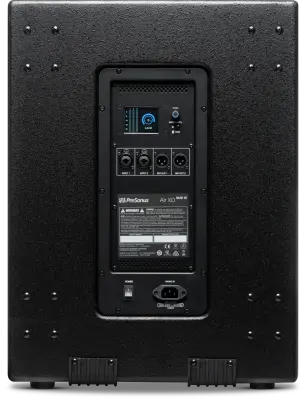

ElectronicsInputs: Three - 2 x XLR/TRS Line Combo, Bluetooth
Line Out: Two - 2 x XLR Link Out
Channels: Two
Connectivity: Bluetooth
Voltage: 120V
Power Consumption: 5.6A (230V-50 Hz), 11.1A (120V)
Bluetooth: Bluetooth® V5.0
Performance
Peak SPL: 128 dB
Total Power Output: 2000 Watts
Inputs
Line Input Connection Type: XLR/TRS Mic/Line Combo
Line Inputs Impedance: 14K ohm
Line Inputs Maximum Level: +25dBu
Outputs
Line Outputs Connection Type: XLR Male, Balanced
Speakers
Crossover Frequency: 60 Hz - 150 Hz
Speaker Type: Active Vented Design
Hardware
Cabinet Material: 15mm Plywood
Handle: 2 Side
Audio Controls: Gain, Volume, Hi/Lo EQ, X-over
Cooling: Passive radiator
Grille Material: 1.5 mm Steel
Pole Socket: Ground-Stack Provisions
