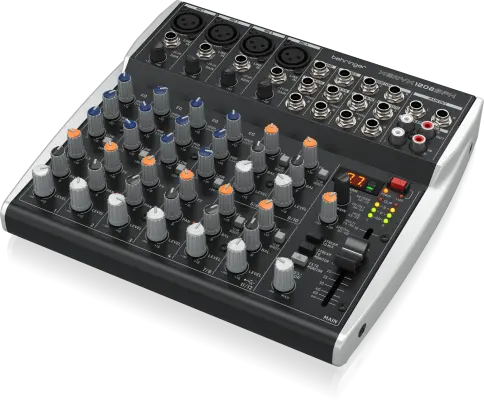

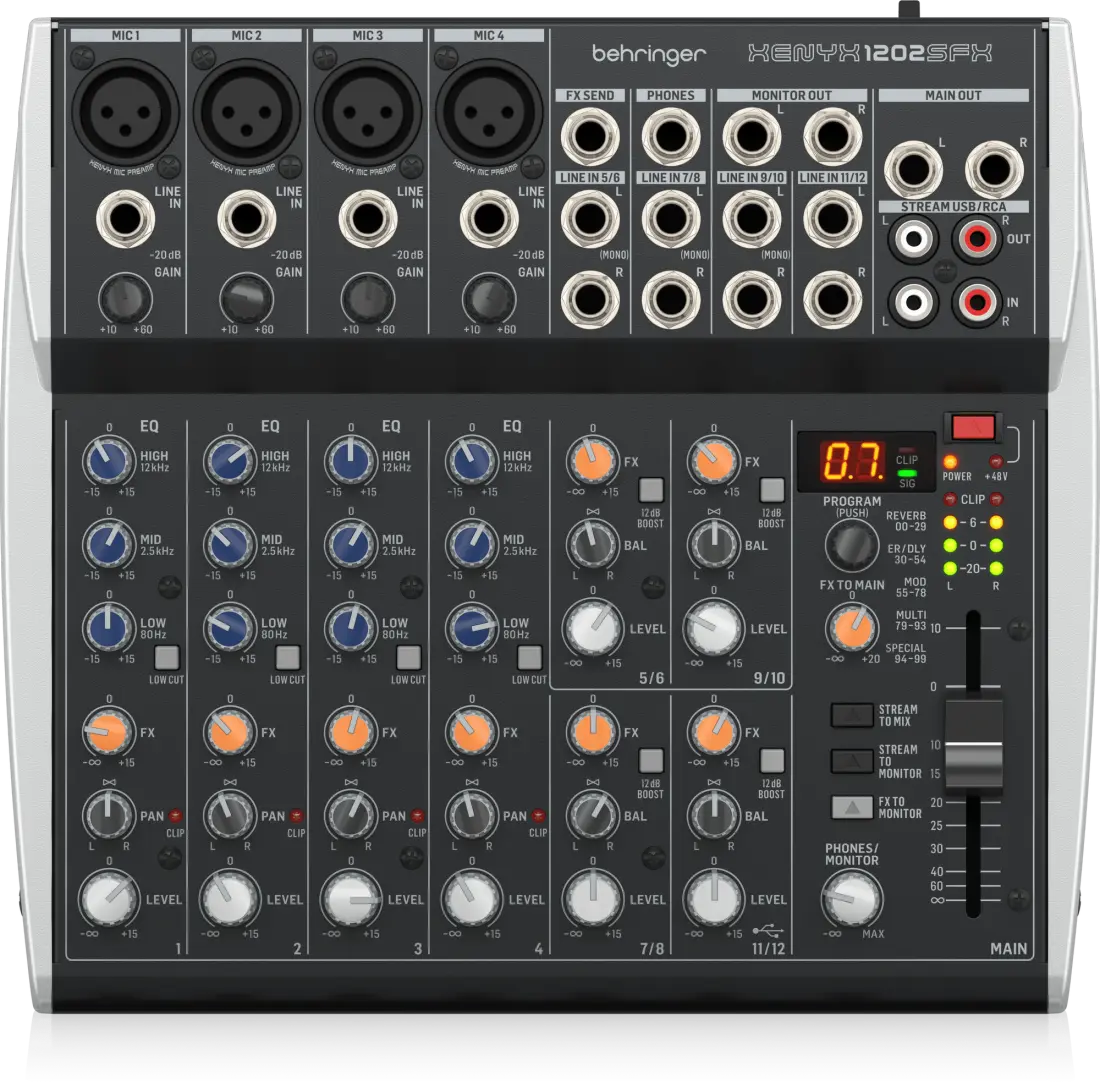

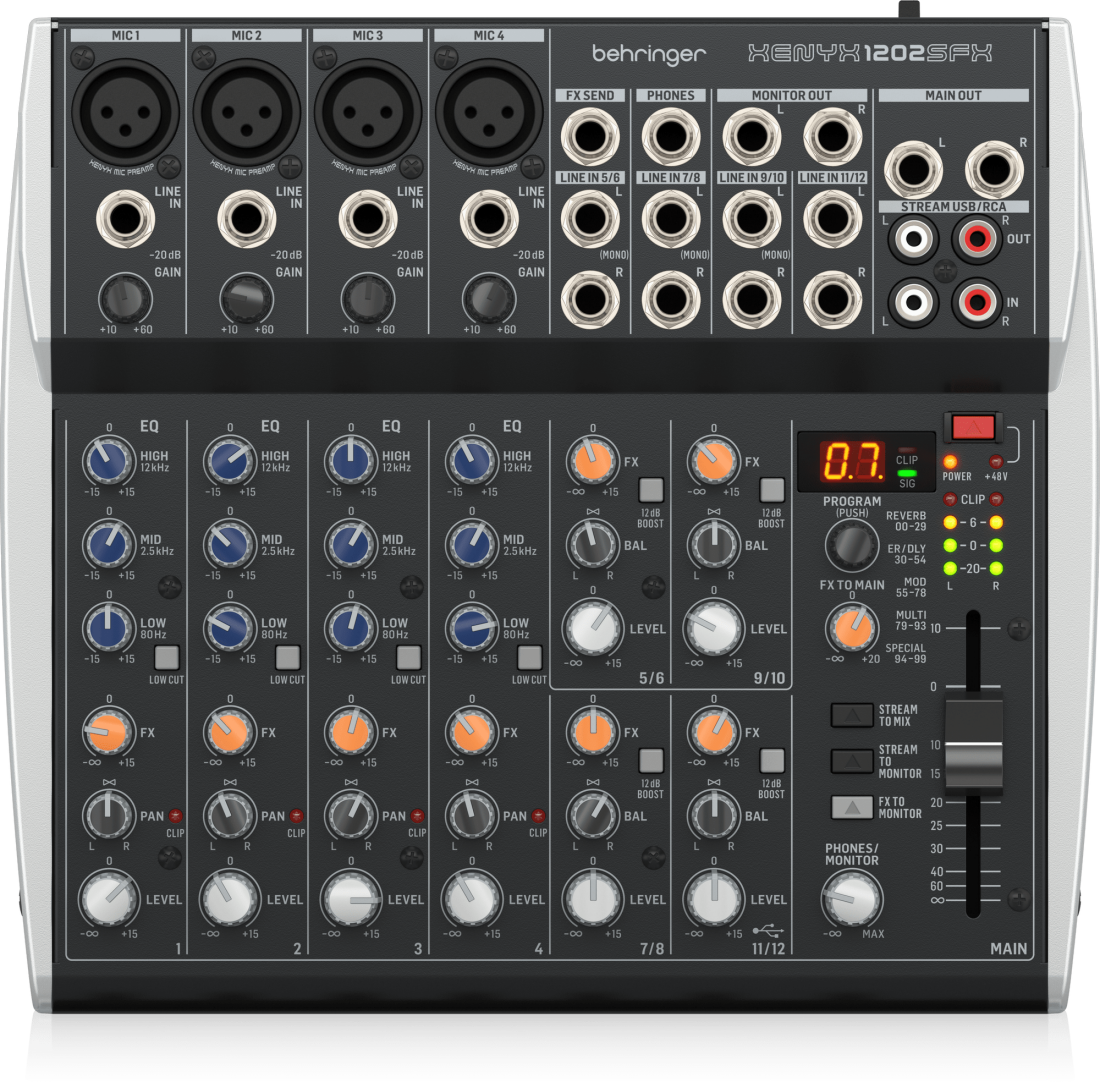

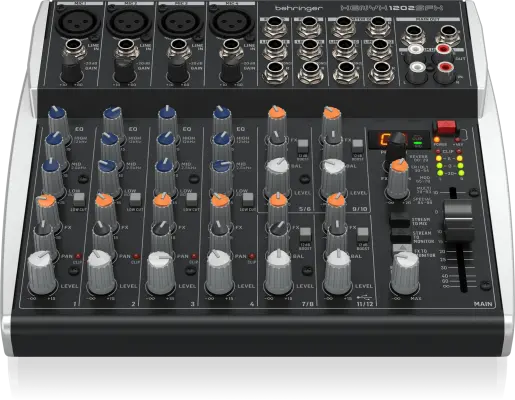

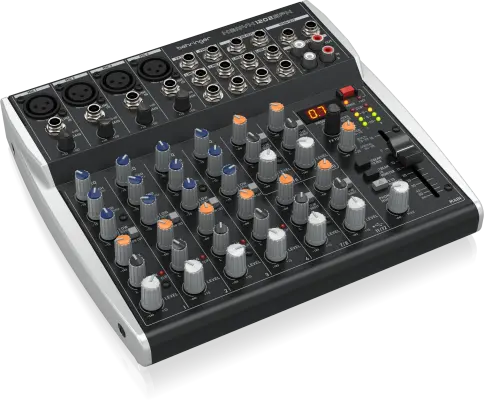

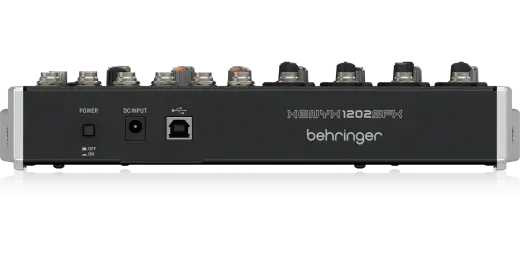

Behringer Xenyx 1202SFX Premium Analog 12-Input Mixer with USB Streaming Interface
Additional Photos:
Great Additions
Description
The XENYX "S" series can be connected to any computer or mobile device making it super easy to integrate digital sources with analog equipment. It can also be used as a versatile sub mixer for feeding network enabled audio devices with several other audio signals.
Four mono channels with EQ and Low Cut, plus 4 stereo channels, a stereo RCA streaming input and stereo USB input allow you to blend a total of 16 audio signals for streaming, monitoring via headphones or on high-quality TRS outputs. The mixer delivers crystal-clear audio for high-quality streaming, plus it comes with an amazing Klark Teknik FX processor with a hundred presets to add that extra spice to your mix.
Specifications
Microphone InputBalanced XLR, discrete input circuit
Mic EIN (22 Hz-22 kHz) @ 50 Ω: 132 dB, A-weighted
Frequency response Gain +10 dB: 10 Hz to 150 kHz
Frequency response Gain +60 dB: 20 Hz to 70 kHz
Gain range: +10 dB to +60 dB
Max input level @ +10 dB Gain: +12 dBu
Input Impedance 2 kΩ balanced
Distortion (THD + N) 1 kHz @ +10 dB Gain: 0.005%
Mono Line Inputs
1/4" TRS connector balanced
Impedance: 22 kΩ Balanced, 10 kΩ unbalanced
Gain range: -10 dB to +40 dB
Max input level @ 0 dB Gain: +21 dBu
Stereo Line
1/4" TRS connector balanced
Frequency response: 20 Hz to 200 kHz
Impedance: 22 kΩ Balanced, 10 kΩ unbalanced
Max input level @ 0 dB Gain: +21 dBu
STREAM Inputs (Analog)
RCA connector unbalanced
Impedance: 10 kΩ unbalanced
Max input level: 10 dBu
Equalizer
Low: 80 Hz/+/-15 dB
Mid: 2.5 kHz/+/-15 dB
High: 12 kHz/+/-15 dB
Main, Monitor & FX Send Outputs
Type: 1/4" TRS connector impedance-balanced
Impedance: 120 Ω
Max output level: 21 dBu
Phones Out
Type: 1/4" TRS connector unbalanced
Impedance: 23 Ω
Max output level: 19 dBu/150 Ω
Stream out (Analog)
Type: RCA connector unbalanced
Impedance: 1 kΩ unbalanced
Max output level 10: 10 dBu
Main Mix noise
Main Mix @ -∞: -108 dBu A-weighted
Channel @ -∞: -108 dBu A-weighted
FX Section
Type: Klark Teknik
Converter: 24-bit Sigma Delta
Sample Rate: 40 kHz
USB
Type: Type-B connector
USB Audio Data: 48 kHz 16 Bit
UAC2 Class Compliant: stereo in/out
