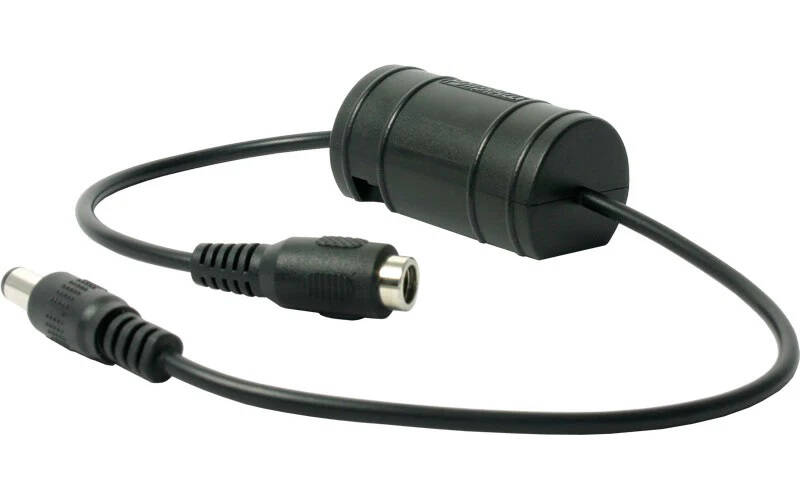

Power-All Ground Hound Ground Isolator

Using proprietary technology, the GH-1 Ground Hound creates an isolated ground connection for any effect unit that is powered off the PA-9 Power-All. Avoid ground loops, reduce line noise, and power pedals with opposing ground configurations off the same series power supply!

The Ground Hound allows Fuzz Face and ToneBender style fuzzes and other positive-ground pedals to work in conjunction with standard negative-ground pedals off the same power supply. The GH-1 can also reduce noise from certain digital units with multiple ground planes.

Specifications

Plug: 5.5 mm W x 10 mm L male barrel with 2.1 mm internal diameter and spring-loaded plug
Input: 9 VDC @ 1500-2000 mA regulated
Output: 9 VDC @ 640 mA (maximum output current)
Max Power Rating: 5.75 Watts continuous
Polarity: Tip Negative/Barrel Positive
