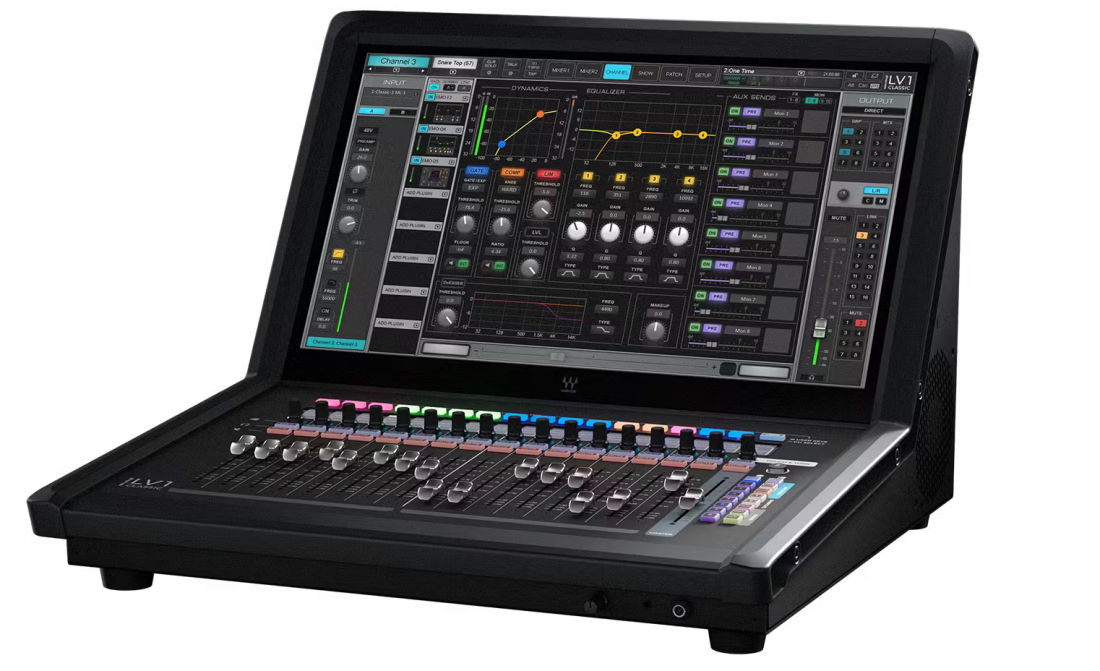

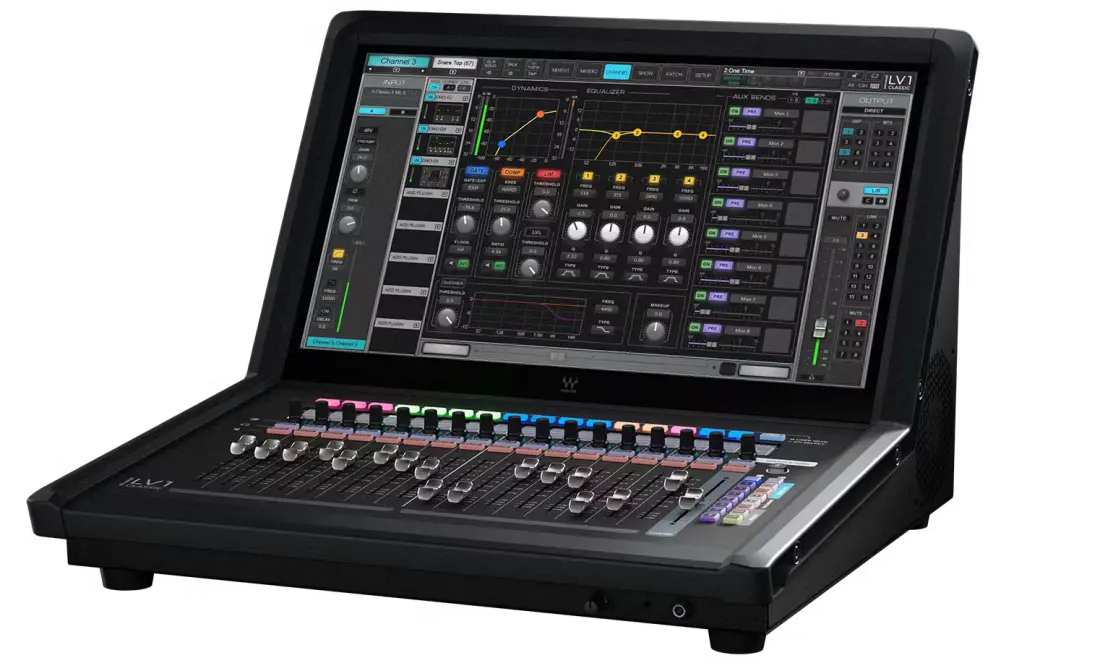

Waves eMotion LV1 Classic 64-Channel Digital Mixer
Additional Photos:
Buy Online
Available November 2025
Great Additions
Description
LV1 Classic's 16 inputs are powered by original-design, digitally controlled Waves Signature Preamps. With fully discrete analog circuits, these pristine preamps deliver maximum clarity and headroom, an incredibly low noise floor, and lightning-fast transient response. The added HMX feature allows you to choose between pure transparent preamp sound and rich harmonic enhancement per input.
With a large 21.5" multi-touch screen, a carefully designed tactile surface with 17 100 mm faders, and smart software/hardware design that ensures quick access to essential mixer functions and user-defined actions, eMotion LV1 Classic is built for efficiency and speed in live sound scenarios.
LV1 Classic's all-new tactile control surface is built for comfort and speed. The 17 newly designed motorized faders are designed for an organic feel, with optimal resistance to ensure both reliability and responsiveness. 17 multi-purpose encoders allow extensive customization of important mixer functions and user-defined actions, including mapped plugin control. Integrated LCD metering per channel provides extra instant visual feedback.
Features
• 64 mono/stereo input channels• 44 mono/stereo buses: 8 groups, 24 auxes, 8 matrices, 3 master, cue
• Double Precision 32-bit floating point mix engine (44.196 kHz)
• Latency as low as 0.8 ms
• 21.5" multi-touch screen with 1000 Nit brightness
• 16+1 motorized 100 mm faders
• 16+1 precision encoders, with mini-displays including per-channel LCD metering, and Select/Mute/Solo keys
• 16 layers with utility keys and tempo pad
• 16+2 customizable keys
• 16 Waves Signature Preamps with mic/line inputs

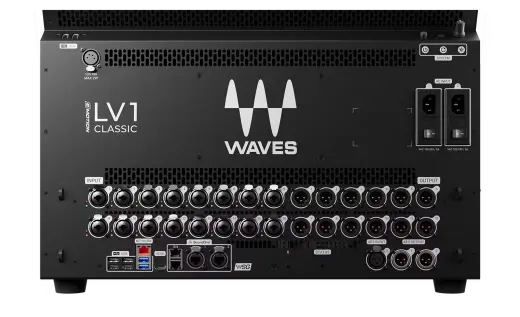

• 12 line outputs, 2 AES3 outputs, AES3 SRC input
• Built-in SoundGrid server (Extreme Server-grade) handles processing
• Add more I/O: Up to 14 SoundGrid-compatible devices, including Dante and MADI convertors
• Add up to 3 processing servers and 4 backup servers
• 4 SoundGrid switch ports: 2 Ethercon + 2 Rj45
• Record 16 tracks locally to USB / 128 tracks to remote computers
• Stereo playback from USB
• 8-slot rack hosts 8 plugins per input channel + all mix channels
• Plugins included with the console: Waves Tune Real-Time, F6 Dynamic EQ, eMo Q4 EQ, eMo D5 Dynamics, eMo F4 Filter, GEQ, X-FDBK, Primary Source Expander, R-Comp, R-Bass, H-Delay, Doubler, R-Verb, TrueVerb, GTR3, Magma Tube Channel Strip, eMo Generator
• Processing upgrades include 160 additional award-winning Waves plugins, immersive in-ear mixing (eMo IEM), Dugan auto-mixing
• Custom options for mixing layout
• Intuitive control over each channel's parameters
• Patch system-wide connections
• Custom colors per channel
• Unicode multi-language support
• Up to 1000 scenes with Recall Safe and Scope Filters
• 8 Mute groups and 16 Link DCAs with Spill function
• Digital preamp control with local V-Gain tracking for sharing
• Multiple outputs per channel with delay alignment controls
• Remote control apps for mobile & tablet, for both FOH and stage
