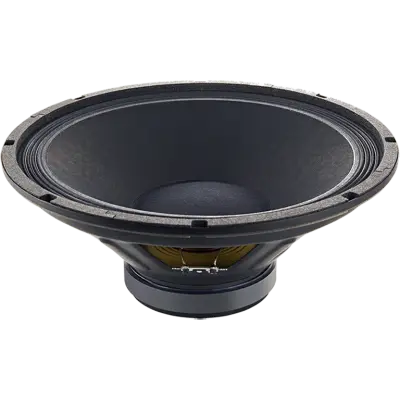

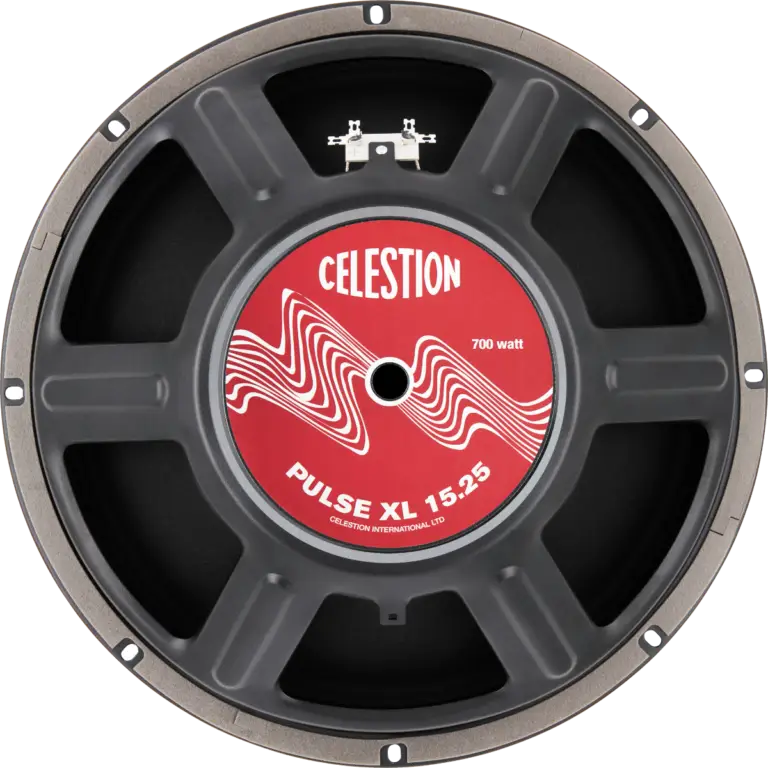

Celestion Pulse XL Steel-Chassis Bass Guitar Speaker, 8 Ohm - 15''

Plenty of clean, deep bass from this heavy-duty 15-inch driver, along with a defined midrange and the smooth treble response that comes with a felt dust dome. With a solid 700W of power handling, the PULSE XL 15.25 delivers an authoritative performance packed with sweet harmonic overtones.

Specifications

General
- Nominal diameter: 381mm / 15in
- Power rating: 700W
- Rated impedance: 8Ω
- Sensitivity: 97dB
- Magnet type: Ferrite
- Voice coil diameter: 2.5in / 63.5mm
- Voice coil material: Copper
- Former material: Polyimide
- Cone material: Cellulose
- Surround material: Triple roll, cloth sealed
- Frequency range: 35-2100Hz
- Gap height (Hg): 8mm / 0.3in
- VC winding height (Hvc): 20mm / 0.8in

Parameters
- Sd: 855.3cm2 / 132.57in2
- Fs: 39.9Hz
- Mms: 85.273g
- Qms: 12.216
- Qes: 0.72
- Qts: 0.68
- Re: 6.66Ω
- Vas: 193.23l / 6.82ft3
- BI: 14.1Tm
- Cms: 0.187mm/N
- Rms: 1.75kg/s
- Le (at 1kHz): 1.14mH
- Xmax: 8mm / 0.31in

Mounting Information
- Cut-out diameter: 353mm / 13.9in
- Diameter: 385mm / 15.15in
- Mounting hole dimensions: 6.4mm / 0.25in ⌀
- Mounting hole PCD: 370mm / 14.5in
- Number of mounting holes: 8
- Chassis depth (inc gasket): 116.3mm
- Magnet depth: 13.74in
- Overall depth: 168mm / 6.6in
- Unit weight: 5.4kg / 12lb
