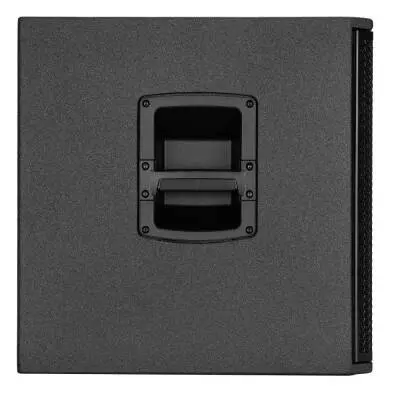

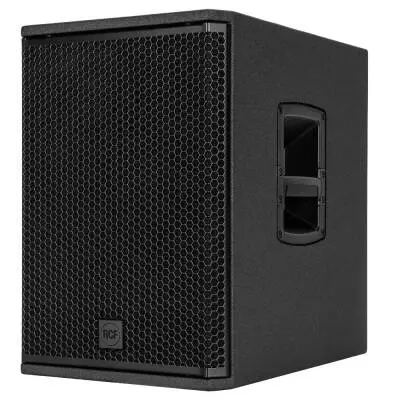

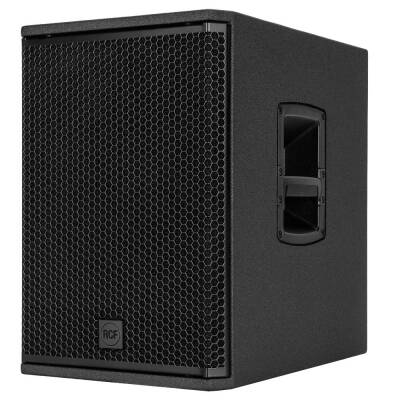

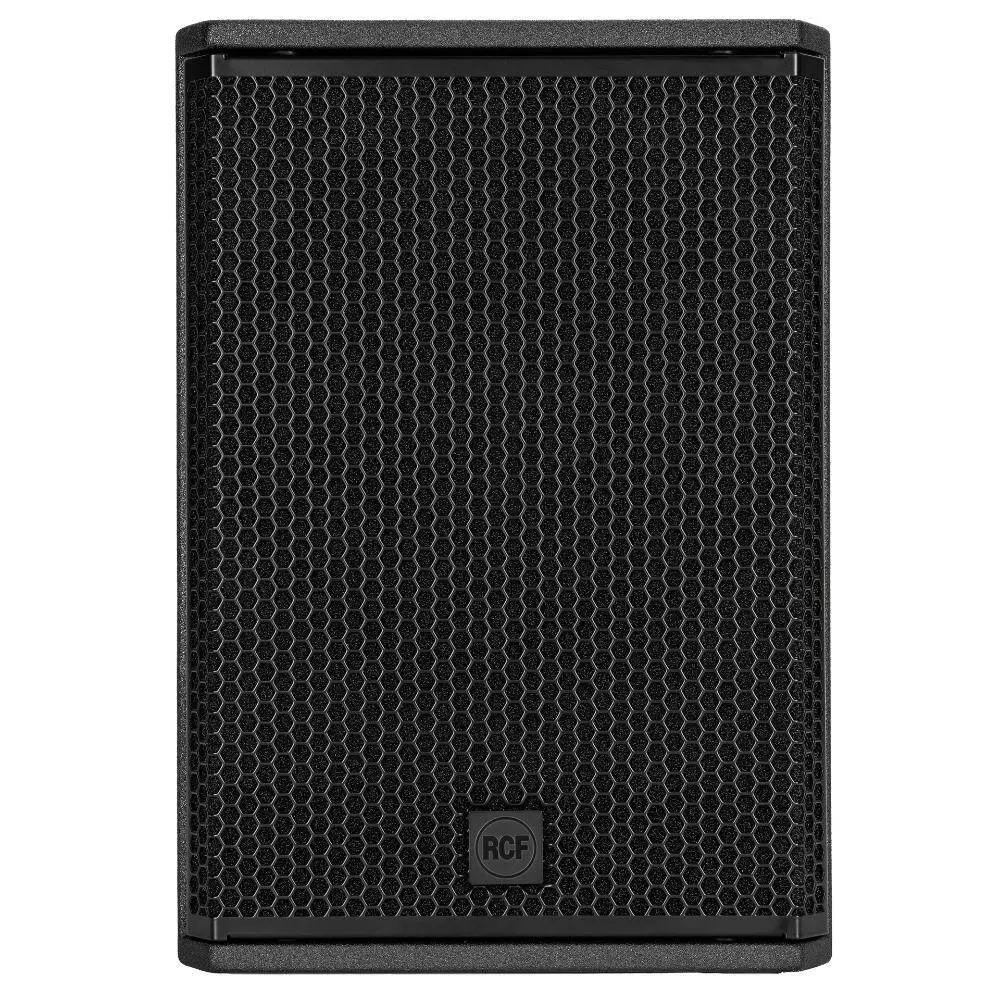

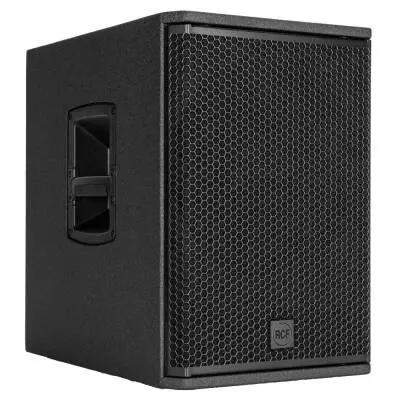

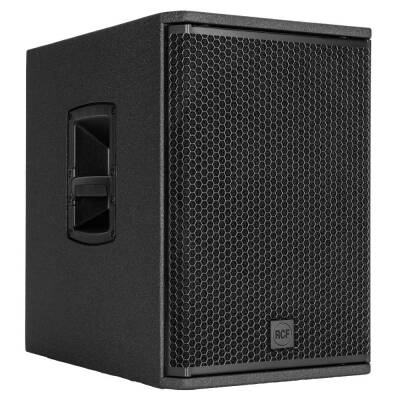

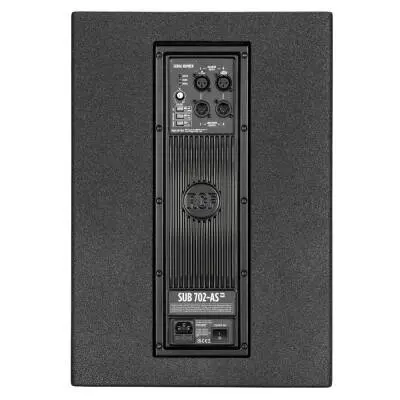

RCF SUB 702-AS mk3 Portable Active Subwoofer
Additional Photos:
Great Additions
Description
Legendary subwoofers
RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, small dimensions compared to the competitors, self-powered design, long-term reliability, and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive experience in both live sound or DJing applications.
Power That Moves
RCF's improvements in transducer design make them stronger and more powerful so the amplifier follows the evolution. With 1400W peak power, the Class-D amplifier manages extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss. The speaker design is energy-efficient so there's no need for a cooling fan. The amplifier is attached to a solid aluminum heat exchanger in the rear of the cabinet with no moving parts. The stereo input circuit with crossover features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. RCF amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section joining high-efficiency with minimum weight.
Bass Motion Control
When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker equipped with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.
The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.
Tour-Ready Workhorse
The subwoofer is suitable for a wide range of live sound applications. The rugged all-plywood cabinet is easy to carry and stack, due to its light-weight. All are equipped with ergonomic handles with rubber grips for easy set-up and tear down. The M20 threaded pole mount on the top allows the cabinet to support speakers with a pole mount. The heavy-duty polyurea coating, the powder-coated metal grille, and the rugged structure of the cabinet withstand long-term use and transportation. Separate housing for the amplifier guarantees component efficiency and reliability. An acoustically transparent sound foam backing on the inside of the grille ensures protection from dust and humidity. With its frontal vented ports, the subwoofer can also be used in recessed spaces.
Features
• 1400 Watt Class-D Amplifier• 12" Woofer, bass reflex housing
• Stereo Crossover
• Switchable Crossover Frequencies
• Polarity-reverse switch
• Electronic equalization, soft limiter and protection
• Stereo XLR input, Stereo XLR signal output
• Bass Motion Control excursion management
Specifications
Acoustical SpecificationsFrequency Response: 40 Hz - 120 Hz
Max SPL @ 1m: 129 dB
Transducers
Woofer: 12'', 2.5'' v.c

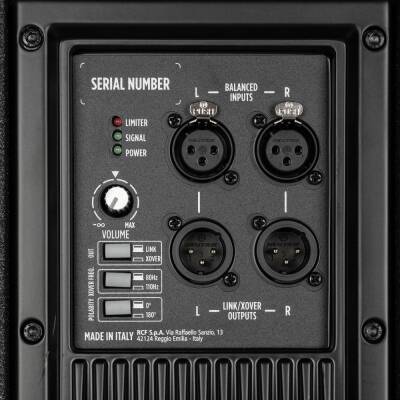

Input/Output section
Input signal: bal/unbal
Input connectors: XLR
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Processor section
Hi-Pass Frequencies: 110 Hz
Low-Pass Frequencies: 80 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, EQ, Phase, Xover
Power Section
Total Power: 1400 W Peak, 700 W RMS
Low frequencies: 1400 W Peak, 700 W RMS
Cooling: Convection
Connections: VDE
Physical Specifications
Cabinet/Case Material: Baltic birch plywood
Handles: One each side
Pole mount/Cap: M20 thread
Grille: Steel with clothing
Color: Black
Size / Weight
Height: 523 mm / 20.59 inches
Width: 360 mm / 14.17 inches
Depth: 515 mm / 20.28 inches
Weight: 21.5 kg / 47.4 lbs
