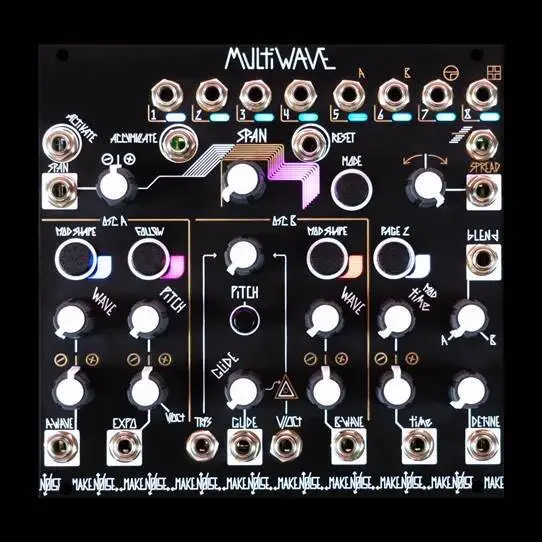

Make Noise Multiwave Wave Table Oscillator Module

MultiWAVE is an 8-channel dual wavetable oscillator for the New Universal Synthesizer System or any Eurorack modular synthesizer. It uses a single set of controls to generate audio waveforms at eight independent channel outputs.

Each of the eight MultiWAVE channels contains two independent wavetable oscillators, Osc A and Osc B, each with variable frequency, modulation, and wavetable position.

MultiWAVE includes an output header for creating pre-patched connections to the audio signal inputs of two QXG modules. When grouped up with PoliMATHS it creates the 8-channel hybrid polysynth core of the New Universal Synthesizer System.

Features

• 8-channel dual wavetable oscillator with a single set of controls
• Sequence A and B oscillators (per channel) independently or together via 4 follow modes
• Generate polyphonic activations from monophonic sequences using Modulation Dissemination, Span modes, Spread, and Accumulate.
• Variable timbre per channel via Spread and Modulation Dissemination
• Independent v/o inputs per oscillator and global transpose v/o input
• Built-in polyphonic quantizer
• Modulatable polyphonic detune, and glide.
• Works as a Harmonic Oscillator with detune turned fully clock wise
• Modulate wavetables using built-in MultiMod LFO
• Independent modulation depth and shape per oscillator.
• Modulation Time and depth variable per voice via spread and modulation dissemination
• Ships with custom Make Noise wavetables developed from Make Noise modules
• Smooth interpolation between waveforms
• Compatible with Waveedit format wavetables
• Each wavetable contains 64 waves
• Capable of storing 8 banks of 8 wavetables.
• Activate channels in multiple voltage-controllable Span modes
• In arbitrary order using Channel Index
• Sequentially with variable channel count step in Round
• Via variable per channel clock divisions using Parallel
• Oscillator Core of the New Universal Synthesizer System
• Designed for seamless use with PoliMATHS, QXG, and future N.U.S.S. modules

Specifications

Width: 26 hp
Max Depth (incl. power cable): 43mm
Power:
mA@ +12V 250mA
mA @ -12V 5mA
