American DJ 4-in-1 Par-Style Led 1x30W Tricolor Led/light

SKU: # 421858   |   Model: # DOTZ-TPAR-SYS   |    Product Reviews1 Reviews  Write a Review

4-in-1 Par-Style Led 1x30W Tricolor Led/light

Additional Photos:

4-in-1 Par-Style Led 1x30W Tricolor Led/light
4-in-1 Par-Style Led 1x30W Tricolor Led/light
4-in-1 Par-Style Led 1x30W Tricolor Led/light
 This product is no longer available.

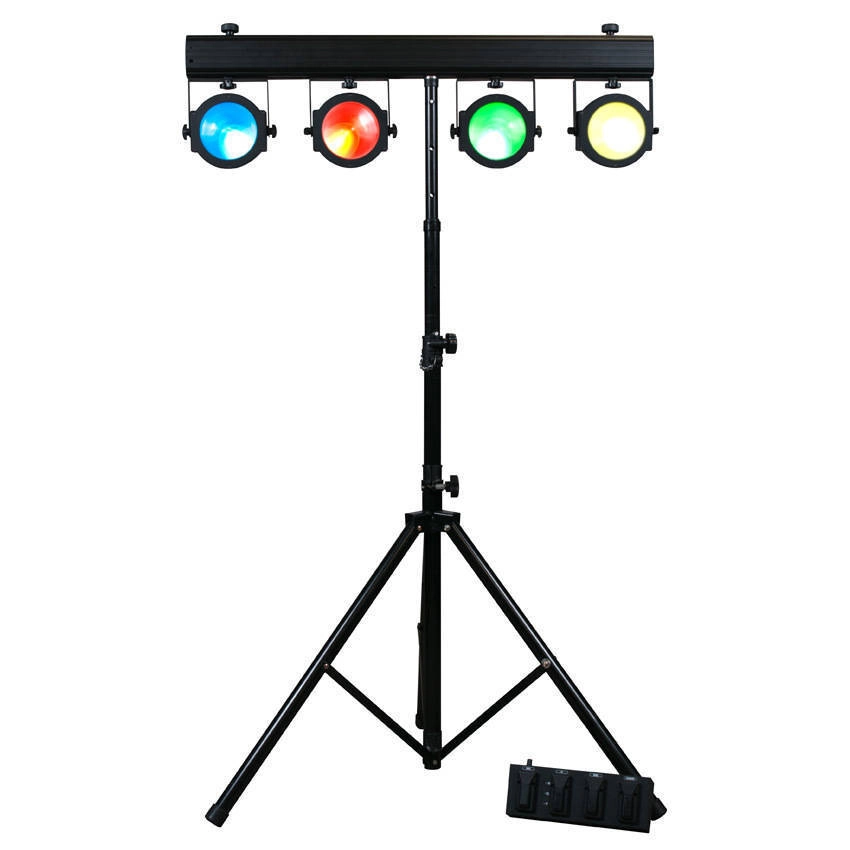

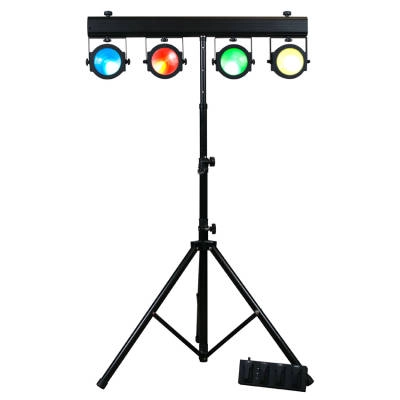

The Dotz TPar System is an exciting all-in-one LED Wash system for mobile entertainers bands and stage lighting. This lighting system features a 4-head T-Bar light system each with one 30-Watt COB TRI LED (RGB), producing wide, saturated color washes of light with LEDs rated at an extremely long life of 50,000 hours. The system washes a very large area with its 90-degree beam angle. Or change the light output to a 25-degree beam with the included lens kit.

Great for any performer on-the-go, the Dotz TPar System is easy to set-up and take down. Plus, with low heat emitting LEDs performers stay cooler on stage. The system includes a tripod stand, a foot controller, RF remote control and a gig bags to help protect your equipment.

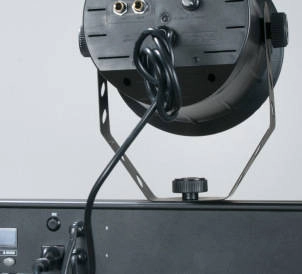

In addition to its built-in programs and foot controller, the Dotz TPar System may also be controlled by an external DMX Controller via its XLR In/Outs. User can also mount two smaller lighting fixtures on top of the T-bar and plug them in directly on the back of the bar.

System includes:
• 4x COB LED Par Wash Fixtures
• 1x Foot Controller
• 1x Lighting Stand
• 1x RF Remote Control
• 1x Stand Bag
• 1x Soft case for lighting system

Features:
• COB LED Par Wash System with 4 Par fixtures
• COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color
• Smooth RGB Color Mixing (fast or slow color change operation)
• Great for Stage Lighting, Bands, Night Clubs & Mobile Entertainers
• Emits less heat on performers on stage as opposed to conventional stage lighting
• 4 Operational modes: Sound Active, Auto Run, Built-In Programs, & DMX-512
• Stand Alone or Master-Slave Setup
• Pixel Flip option changes pixel orientation
• 14 Built-in Programs
• 5 DMX Channel modes: 3, 5, 9, 12 and 18 channels
• Digital DMX Display with 4-button menu for easy navigation
• 3-Pin DMX In/Out
• Strobe & Pulse LED Effect
• Electronic Dimming: 0-100%
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
• Beam angle: 90-degree
• Includes 25-degree beam angle lens kit
• Long Life LEDs (Rated at approximately 50,000 hrs.)
• Foot Controller Features: Mode, Black Out and Program Change
• RF Remote Control control up to 25 meters
• Light Source: Each fixture has 1x 30-Watt TRI Color COB LEDs
• LUX @ 3M: 1345
• Power Draw: 144W Max (entire system)
• 2x power plugs on rear or plug in other lighting fixtures (120V = Edison or 230V = Shuko)
• Includes hardware to mount lighting fixtures on top of bar
• Multi-voltage operation: AC 100V-240V 50/60Hz (IEC Input)
• Dimensions (LxWxH): 39.5 x 12.75x 3.25/ 1000 x 320 x 82mm
• Weight: 35 lbs./ 16 kg. (Fixture Bar, Stand & Controller)

Q & A


There are currently no questions for this product.

Reviews


44.192.94.177
CCBot/2.0 (https://commoncrawl.org/faq/)
Great, with a couple problems... 2 of 2 customers found this review helpful
Features
Quality
Value
Overall
Product Experience   I own it
Closest Store   Victoria, British Columbia
I just picked up the ADJ Dotz TPar System a few weeks ago, and have tried it at a few wedding gigs. Overall, it's a great set of lights that will fill a large ballroom with vibrant colour. I've been using it standalone, but I'm sure with a DMX board it would be even more awesome. A couple problems: 1. The "Sound Active" mode is WAY too sensitive if you are playing music above living room volumes. I've tried it with the music down low and the sound active mode looks really sweet, but as soon as you turn up the music, the lights go into a crazy strobing seizure... even when you adjust the sensitivity to the lowest setting. 2. The stand is super heavy duty, which is awesome, but it doesn't tighten properly unless you crank the heck out the knobs... and even then it doesn't really tighten properly. The stand has pins so it won't slip down on you, but because it doesn't tighten properly it can rotate a bit when it's up. It's a bit of a pain! I've emailed ADJ about the sound sensitivity issue. If they don't have a workable solution, I will probably need to return these lights.
Posted by anonymous on Aug 19, 2014
Was this review helpful? Vote helpful Vote not helpful flag this review
