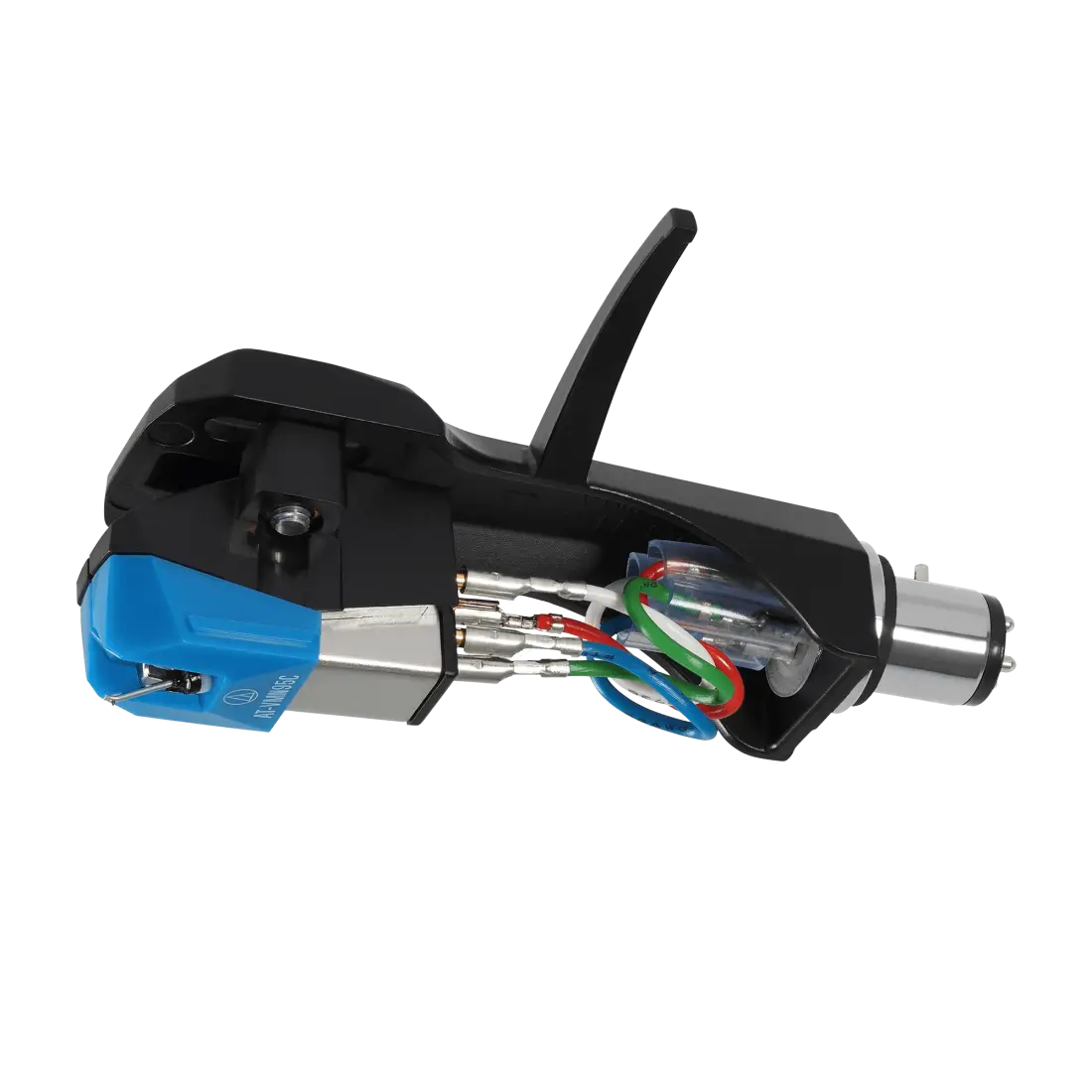

Audio-Technica AT-VM95C/H Headshell/Cartridge Mounted Combo KIt

The AT-VM95C/H combo kit includes the AT-VM95C dual moving magnet cartridge premounted on the AT-HS6BK headshell.

Features

• VM dual magnet cartridge with 0.6 mil conical stylus
• Aluminum cantilever
• Specially wound coils increase output voltage
• Durable low-resonance polymer housing
• Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws no nuts or washers required
• Compatible with any AT-VMN95 replacement stylus
• Universal 1/2"-mount headshell for 4-pin turntable cartridges

Specifications

Frequency Response: 20-20,000 Hz
Channel Separation: 18 (dB at 1 kHz)
Vertical Tracking Angle: 23°
Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
Stylus Construction: Bonded round shank
Recommended Load Impedance: 47,000 ohms
Coil Impedance: 3.3 k ohms (1 kHz)
DC Resistance: 485 ohms
Coil Inductance: 550 mH (1 kHz)
Output Voltage: 4.0 mV (1 kHz, 5 cm/sec.)
Output Channel Balance: 2.5 dB (1 kHz)
Stylus Shape: 0.6 mil conical
Cantilever: Aluminum pipe
Static Compliance: 17 x 10 - 6 cm / dyne
Dynamic Compliance: 6.5 x 10 - 6 cm / dyne (100 Hz)
Mounting: Half-inch
Mounting Feature: Half-inch mount
Recommended Load Capacitance: 100 to 200 pF
Replacement Stylus: AT-VMN95C
Stylus Size: 0.6 mil
Type: VM Stereo Dual Magnet
Weight: Cartridge 6.1 g (0.22 oz); Cartridge & Headshell 15.5 g (0.55 oz)
Wire Used for Coil: T.P. Copper
