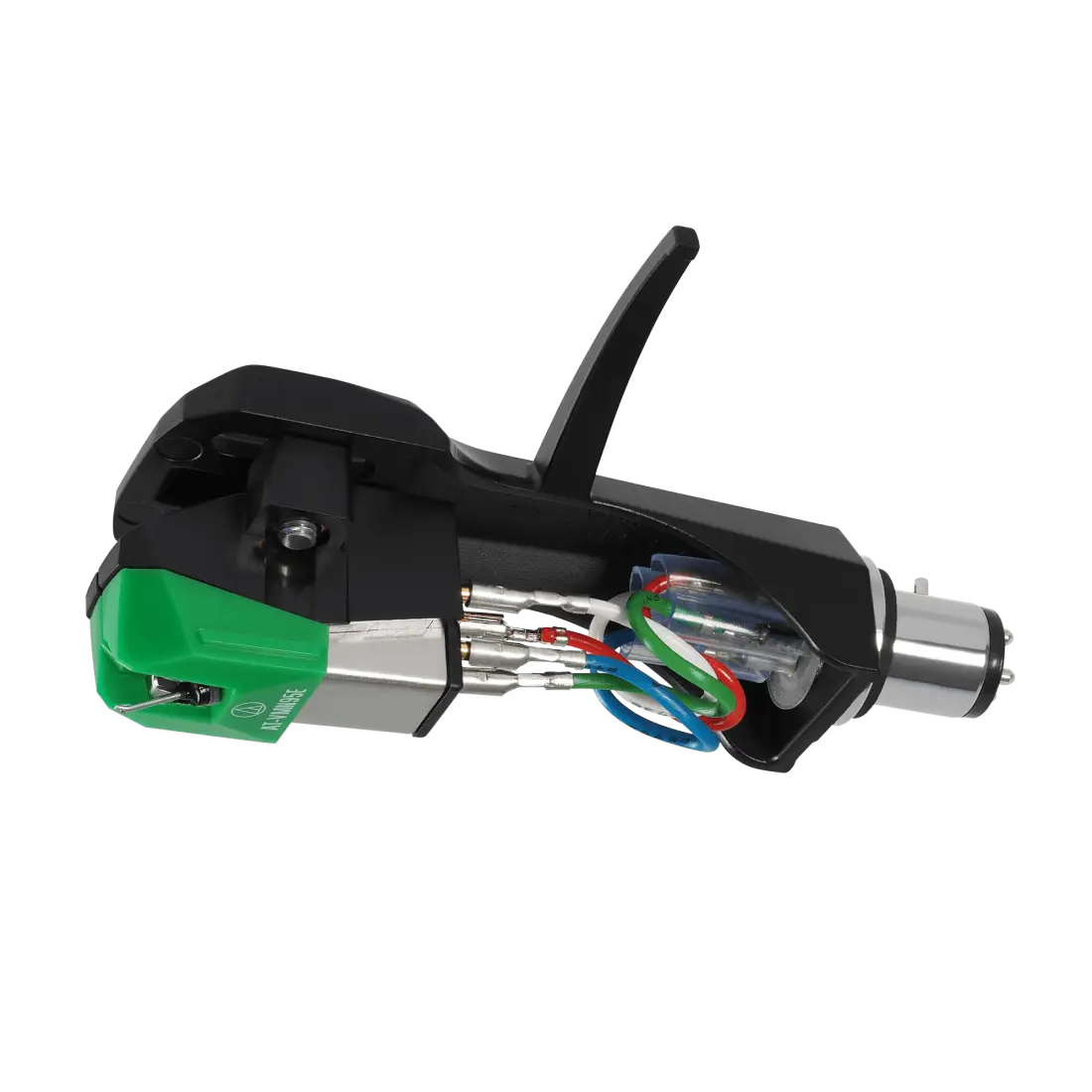

Audio-Technica AT-VM95E/H Headshell/Cartridge Mounted Combo KIt
Great Additions
Description
The AT-VM95E/H combo kit includes the AT-VM95E dual moving magnet cartridge premounted on the AT-HS6BK headshell.
Channel Separation: 20 dB (1 kHz)
Vertical Tracking Angle: 23°
Vertical Tracking Force: 1.8 to 2.2g (2.0g standard)
Stylus Construction: Bonded Round Shank
Recommended Load Impedance: 47,000 Ω
Coil Impedance: 3.3 kΩ (1 kHz)
DC Resistance: 485 Ω
Coil Inductance: 550 mH (1 kHz)
Output Voltage: 4.0 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance: 2.0 dB (1 kHz)
Stylus Shape: Elliptical
Cantilever: Aluminium Pipe
Static Compliance: 17 x 10 - 6 cm / dyne
Dynamic Compliance: 7 x 10 - 6 cm / dyne (100 Hz)
Mounting: 1/2" centres
Recommended Load Capacitance: 100-200 pF
Stylus Size: 0.3 x 0.7 mil
Type: VM Stereo Dual Magnet
Weight: 15.5 g
Wire Used for Coil: T.P. Copper
Specifications
Frequency Response: 20 - 22,000 HzChannel Separation: 20 dB (1 kHz)
Vertical Tracking Angle: 23°
Vertical Tracking Force: 1.8 to 2.2g (2.0g standard)
Stylus Construction: Bonded Round Shank
Recommended Load Impedance: 47,000 Ω
Coil Impedance: 3.3 kΩ (1 kHz)
DC Resistance: 485 Ω
Coil Inductance: 550 mH (1 kHz)
Output Voltage: 4.0 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance: 2.0 dB (1 kHz)
Stylus Shape: Elliptical
Cantilever: Aluminium Pipe
Static Compliance: 17 x 10 - 6 cm / dyne
Dynamic Compliance: 7 x 10 - 6 cm / dyne (100 Hz)
Mounting: 1/2" centres
Recommended Load Capacitance: 100-200 pF
Stylus Size: 0.3 x 0.7 mil
Type: VM Stereo Dual Magnet
Weight: 15.5 g
Wire Used for Coil: T.P. Copper
