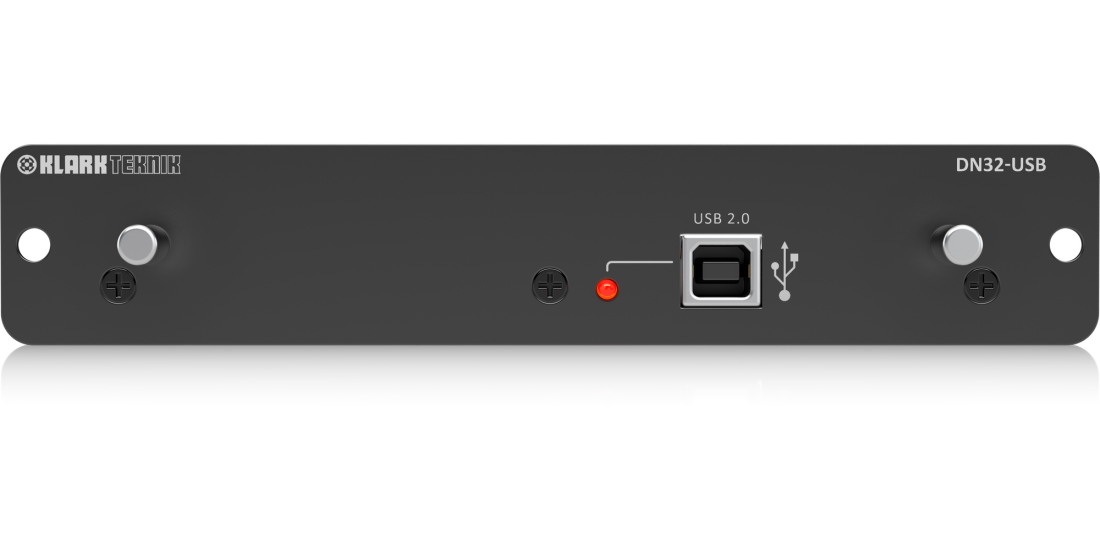

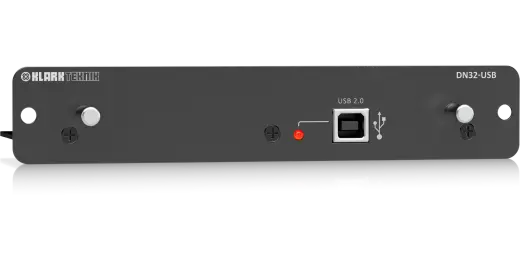

Klark Teknik DN32-USB 32 x 32-Channel USB Audio Interface Expansion Module

USB 2.0 Expansion Module with up to 32 Bidirectional-Channels

The Klark Teknik DN32-USB is a high performance 32 x 32-channel USB audio interface card that instantly expands your Midas M32 or Behringer X32 mixer's recording and playback capabilities. With the DN32-USB installed in your console's expansion slot, you can effortlessly multitrack and play back up to 32 channels of high-quality 24-Bit, 48 kHz audio directly to your Mac • or Windows • computer, perform "virtual sound checks", and remotely control your DAW software - all from the comfort of your favorite chair.

Low-Latency 24-Bit 32 x 32-Channel Duplexing
Thanks to its low-latency 32-channel, bidirectional audio I/O via USB 2.0 and USB-MIDI capability, the DN32-USB allows you to easily manage and record large studio sessions or run live performances with outboard processing. With six available configurations to choose from, you can route either all or just a subset of your channels through your computer's processor, which allows the use of your favorite DAW studio plugins for live sound production.

Remote Control of Your DAW
Designed to work hand-in-hand with Mackie Control • and HUI • protocols, the DN32-USB integrated MIDI interface enables the use of your console's Group fader section for unparalleled control over a broad range of popular DAWs - turning your mixing console into the control center of your recording and mixdown workflow!

Virtual Sound-Checking
The DN32-USB can also speed up your sound checks considerably. By multitracking the band to your computer during a live performance, you can then play back those prerecorded tracks through the console for a fast and easy pre-soundcheck, long before the band arrives at the next venue. For maximum convenience, you can also store two 'Snippets' that toggle your live mic inputs to USB playback, and put those on two user assignable buttons. Add this to your Midas M32 or Behringer X32's powerful built-in scene management, and you have all the tools needed to create highly accurate FOH and monitor mixes that will need only minor adjustments when the band shows up.

Features

• USB 2.0 expansion module for Midas and Behringer digital consoles
• Up to 32 bidirectional channels @ 48 kHz of recording and playback
• Simultaneous computer audio recording and playback
• Operates from console USB device clock
• Enables remote control of compatible DAW software via emulations of Mackie Control and HUI protocols
• Seamless computer integration for virtual sound checks and software plug-ins
• Ultra-low latency ASIO drivers available for Windows
• Class-compliant USB design compatible with Mac OS X CoreAudio - no driver required

Specifications

Expansion Card Features
Interface: High Speed USB 2.0; DAW remote control
MIDI: 1 in x 1 out; Generic MIDI, HUI and Mackie Control Universal emulation
Audio input channels 24-Bit, 44.1/48 kHz: 32, 16, 8 or 2
Audio output channels 24-Bit, 44.1/48 kHz: 32, 16, 8 or 2

Expansion Card Performance
Interface: High Speed USB 2.0
Typical round-trip latency: ~14 ms*

Physical
Dimensions: 30 x 165 x 138 mm (1.18 x 6.5 x 5.4")
Weight: 0.14 kg (0.31 lbs)
