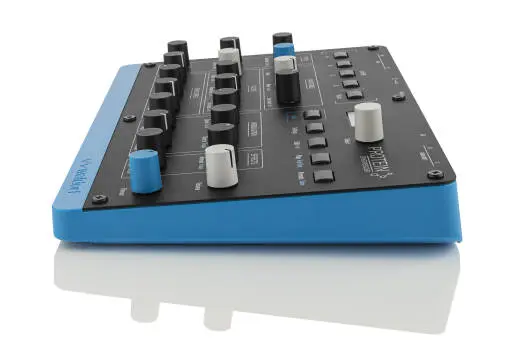

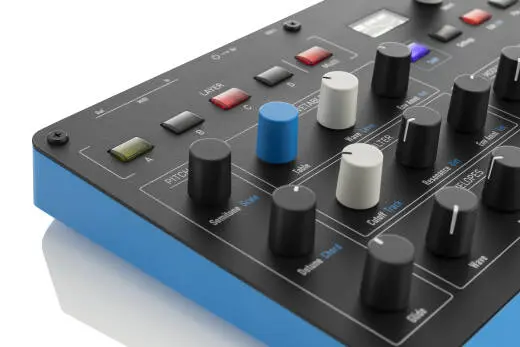

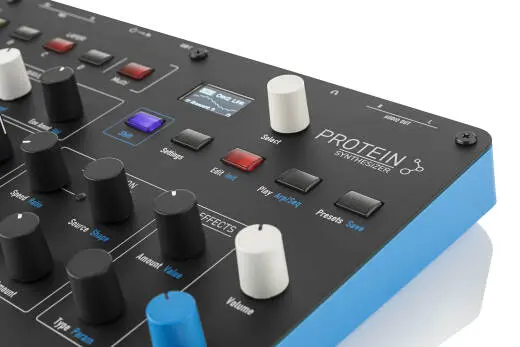

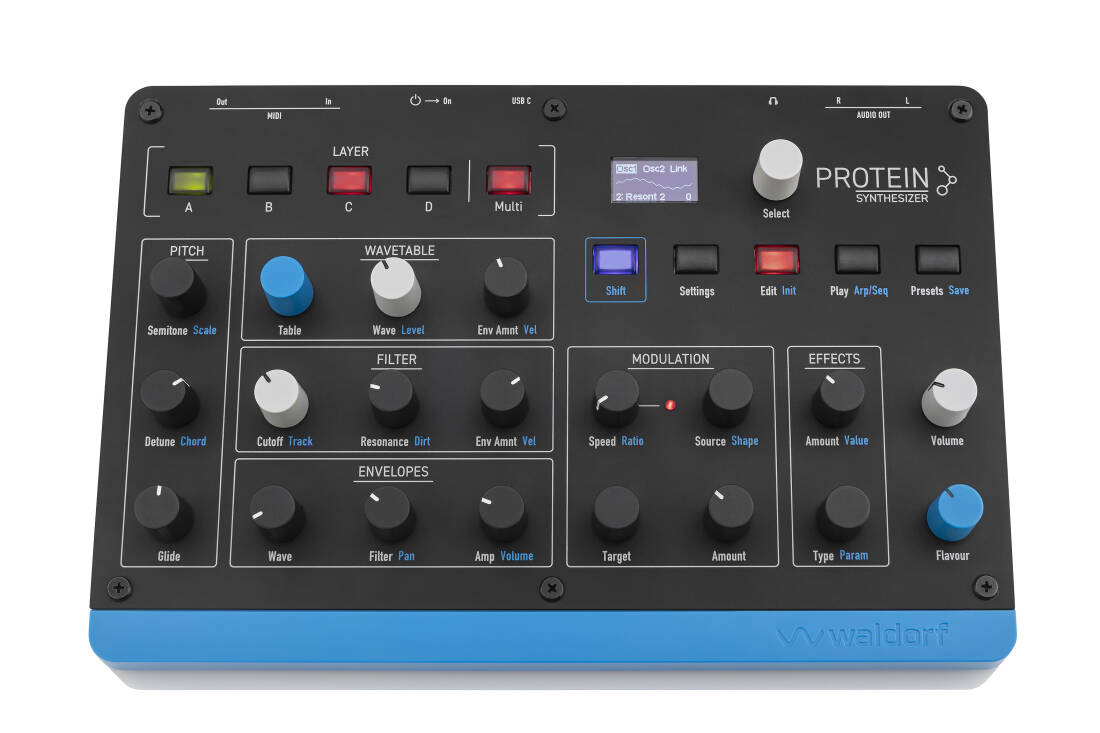

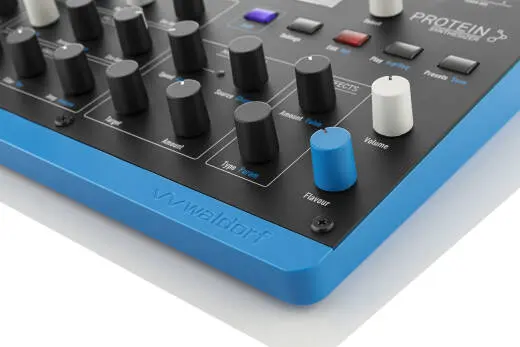

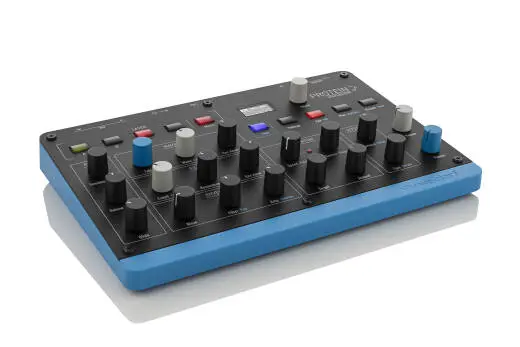

Waldorf Protein Wavetable Synthesizer
Additional Photos:

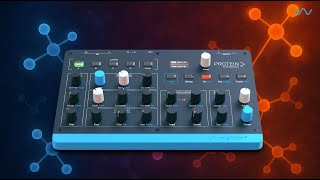

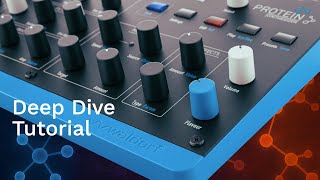

Product Videos :
Buy Online
Expected Availability: mid-March 2026
Great Additions
Description
Sculpt your tone with Cutoff Track, Resonance, Dirt, and flexible Envelope Amount. From crystal clarity to raw, earthy grit - Protein resonates at every sonic layer.
The 8 voices can be organized in up to 4 layers allowing for complex sonic layered arrangements, surprising round robin modes, or simply split by MIDI channels for poly timbral operation. With the Load Layer feature new sonic arrangements can be created in seconds by simply re-combining existing layers from the whole preset collection.
Protein comes with over 150 factory presets of huge variety and is capable of storing up to 250 presets. With the 4 layer concept you can mix and match from the existing library and create new combinations with the easy to use "Load Layer" feature. Build rich and surprising sonic complexity from simple parts within seconds.
With handy dimensions of 252 x 170 x 48 mm and a weight of 0.9 kg, the Protein is a true powerhouse packed into a compact and portable new form factor. Take Protein with you everywhere you go and be creative whenever you feel so.
In the Box
- Waldorf Protein Synthesizer
- Two MIDI adapters: mini TRS to DIN sockets
- USB C to C cable
- Printed Quick Start Guide
Specifications
Oscillators
• Two oscillators based on unique Waldorf Microwave ASIC chip.
• Internally running with 250 kHz sampling rate to match original ASIC sampling rate.
• Modeling of digital-to-analog converters for each voice (DAC).
• Unique digital noise generator based on ASIC technology.
Wavetables
• All original wavetables of Microwave 1 based on the original coding and bit-identical to original.
• Including algorithmic and speech wavetables.
• Beautiful recreation of 8-bit quantization and aliasing.
• Full waveform catalogue of original Microwave.
Filter
• Faithful modeling of CEM analogue filters.
• Adjustable de-calibration of cutoff and resonance to model detuned hardware.
• Cutoff and resonance modulations.
• Additional "Dirty" types: Noise, crackle, click, geiger and bursts.
Modulation
• 3 Envelopes
• 2 LFOs with tempo sync and sample & hold
• 8 slot modulation matrix
• Poly-aftertouch capable
• MPE modulation sources.
Effects
• Two effect slots
• Reverb, Delay, Chorus, Phaser, Flanger, Drive, EQ, Compressor, Tremolo
Voices
• 8 voice polyphony
• 4 timbral layers
• Stacked, round robin and MIDI-split layer-modes.
• Mono & Legato modes
Performance features
• Advanced Arpeggiator
• Step-sequencer with up to 32 steps
• Chord & Scale modes
• MPE Compatible
• MIDI CC Learn
Patches
• Over 150 factory patches
• Capacity of 250 patch memory slots
• Category filter for patch list
• Import- and export of patches via MIDI Sysex

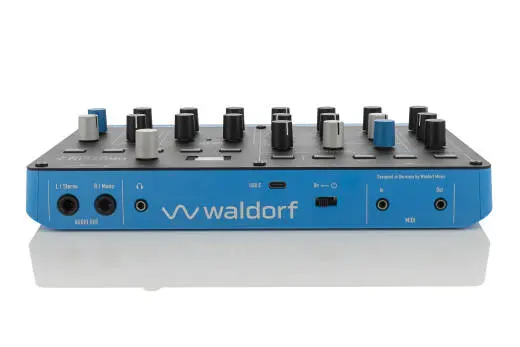

Connections
• Stereo Audio Out with 6.35 mm jacks with optional mono and TRS stereo connections
• Headphones mini TRS output
• DIN MIDI IN & Out, mini-TRS Type A (two adapters to DIN MIDI sockets included)
• USB Type C for power supply and USB MIDI connection
• Firmware updates via USB
Overall
• Sturdy metal front plate on a colorful plastic case
• Dimensions: 252 mm wide by 170 mm depth by 48 mm height (including controls)
• Weight: 0.9 kg
• Power Supply via USB (not in the box)
