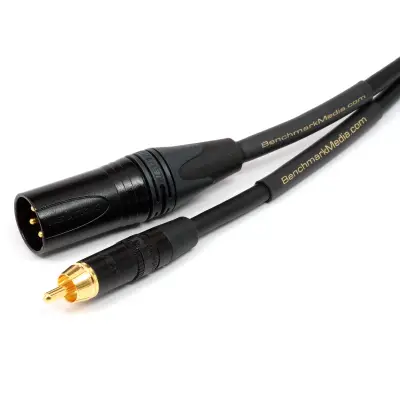

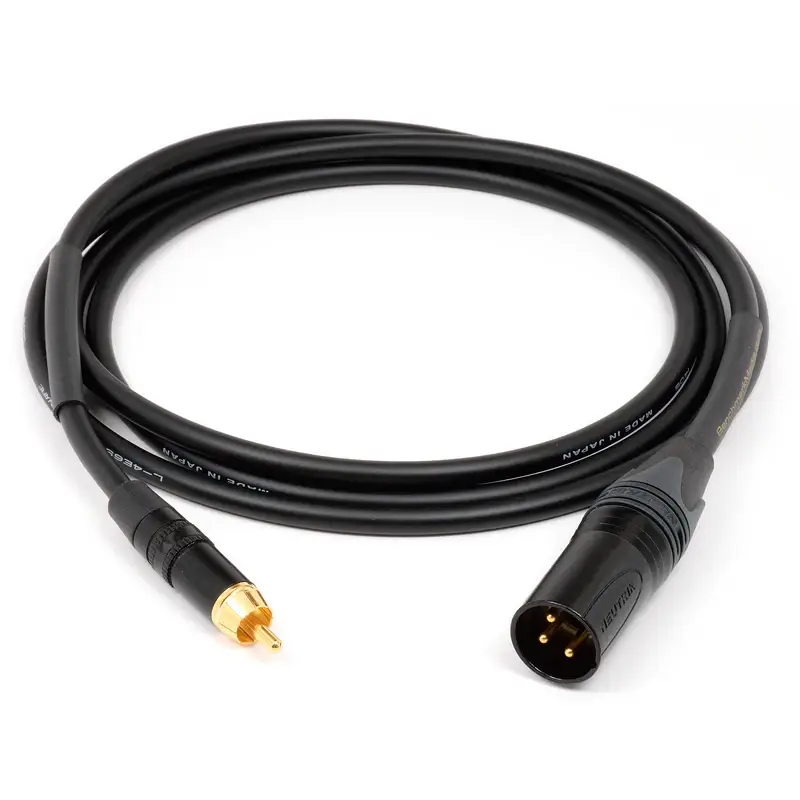

Benchmark Media RCA to XLRM Adapter Cable for Analog Audio - 3'

This special adapter cable connects unbalanced analog RCA outputs to balanced analog XLR inputs.
Use this cable to connect unbalanced line-level RCA analog audio outputs to the balanced analog audio inputs on an AHB2, LA4, HPA4 or an ADC1. May also be used to connect the unbalanced outputs on a DAC1,DAC2 or DAC3 converter to the balanced inputs on an amplifier (if the balanced outputs on the DAC are already in use). This adapter cable will work with electronically-balanced XLR inputs or with transformer-coupled XLR inputs. Do not use this cable with digital signals.

Specifications

- 21 AWG effective AWG of combined twin conductors
- 24 AWG, 40-strand copper conductors, Qty. 4
- Special cross-linked PE insulation
- Flexible in extreme cold weather
- High-density (95% ) TAC braided copper shield
- Conductor DC Resistance: 29.9 Ohms / 1000 ft.
- Shield DC Resistance: 9.1 Ohms / 1000 ft.
- Capacitance between twin blue and white conductors: 46 pF / ft.
- Capacitance between conductors and shield: 56 pF / ft.
- Nominal Impedance: 44 Ohms
- Hand assembled in the USA with true silver solder
- Input end is RCA-Male, output end is XLR-Male
