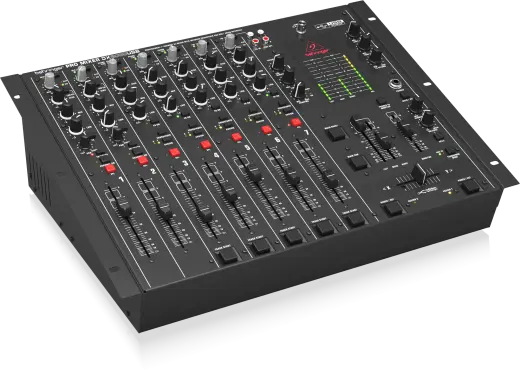

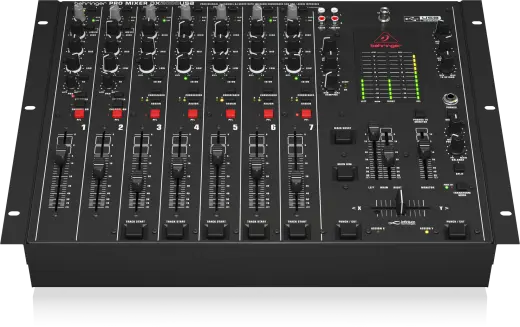

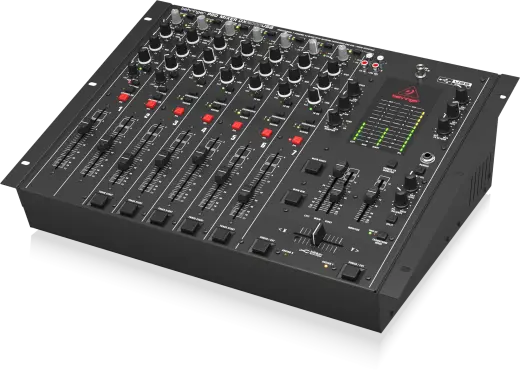

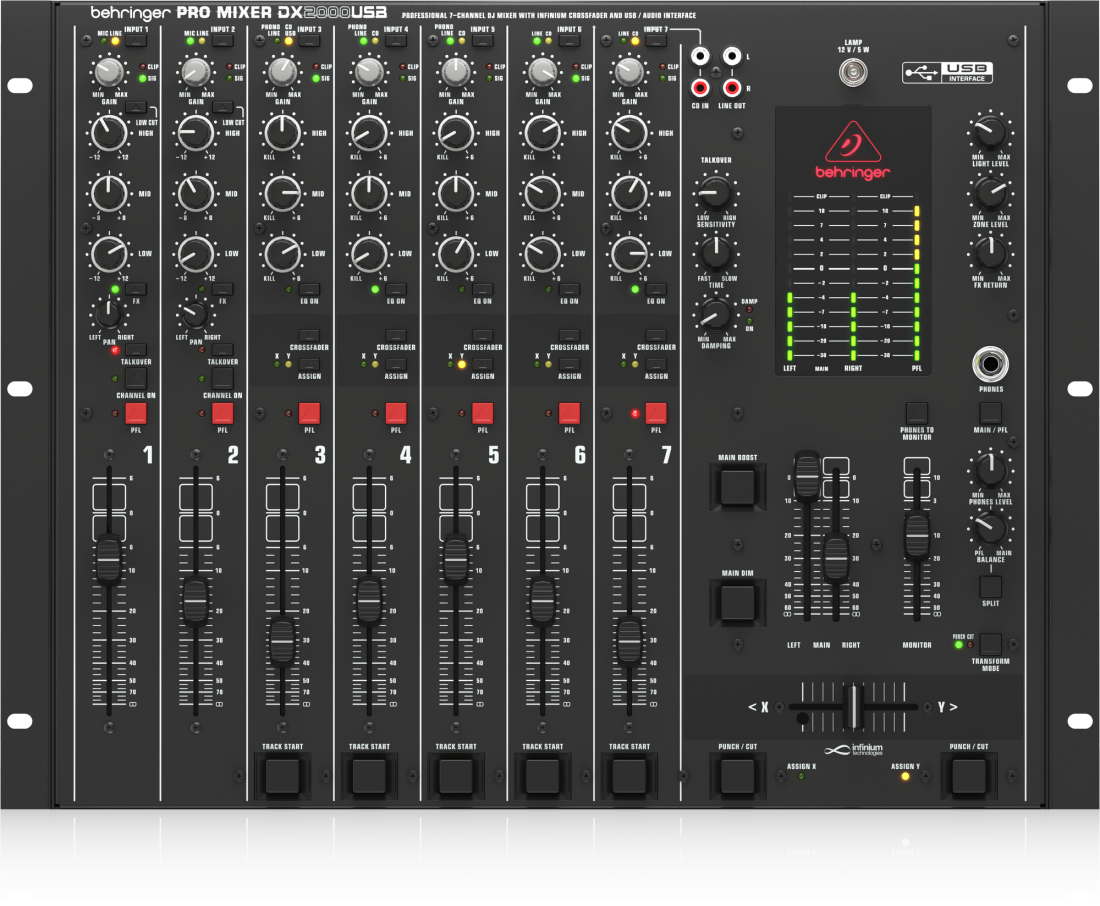

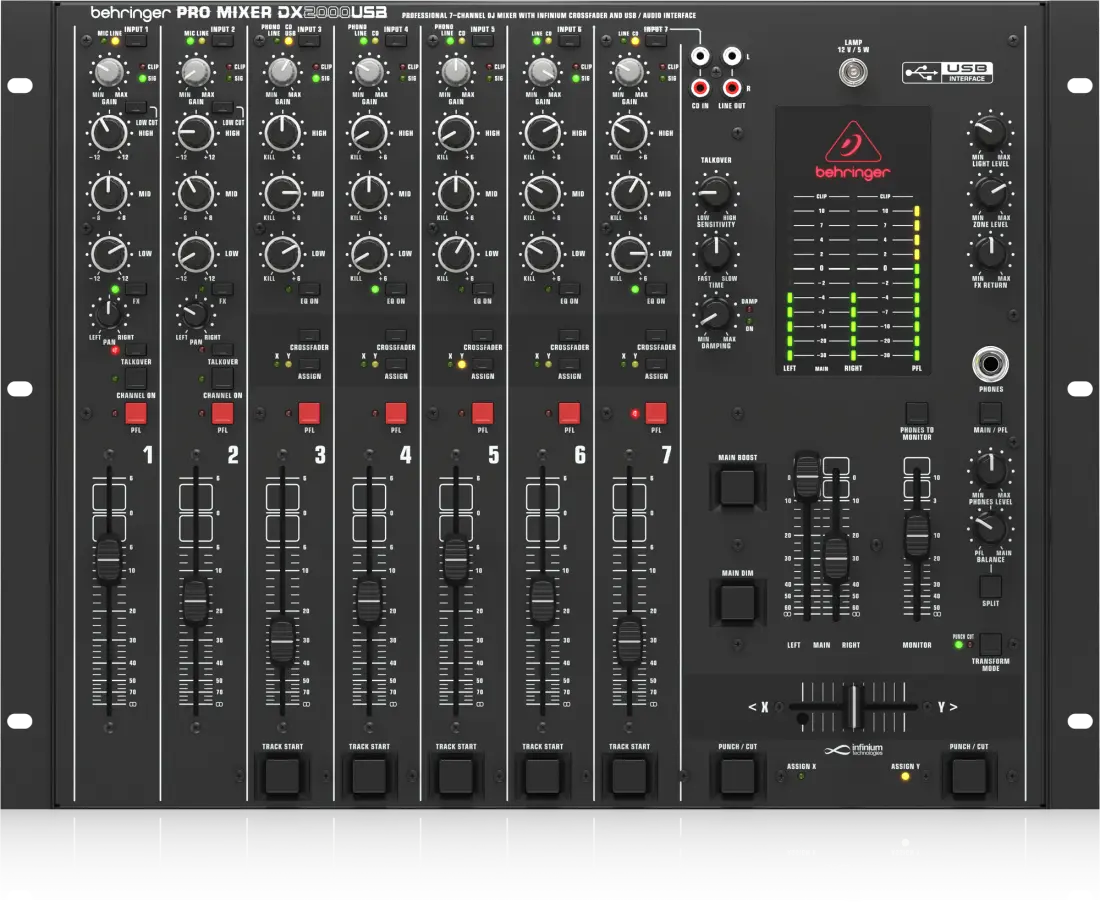

Behringer DX2000USB Professional 7-Channel DJ Mixer with Infinium VCA Crossfader and USB/Audio Interface
Additional Photos:
Great Additions
Description
Contact-Free Infinium Crossfader
The DX2000USB features super-smooth channel faders and the infinium "Contact-Free" VCA-controlled optical crossfader for the ultimate in reliability and state-of-the-art audio performance. A dedicated CF Curve control allows you to custom-tailor the crossfader's control characteristic, and you can even set the crossfader tension just the way you like it.
Live Large with More Mediums!
The DX2000USB features 5 dual-stereo inputs plus 2 mono mic/line channels with Ultra Low-Noise (ULN) mic preamps, gain control and clip LEDs. The DX2000USB also has enough built-in phono preamps to handle up to 3 turntables. Finally, the built-in USB/audio interface gives you the power to add your computer's digital music library to the mix.
Old-School Feel, New-School Performance
The DX2000USB comes armed with a 3-band kill EQ and Gain control per channel. Mono channels feature an additional Low Cut switch and an FX switch that routes the channel to the FX Send and Return loop, so you can add a touch of outboard effects. These channels, which accept microphones and 1/4" line sources, also feature a Talkover button, a Channel On button and PFL switch for headphone monitoring. Stereo channels have an EQ on/off switch, as well as a Crossfader button that sends the channel to the main stereo mix or the crossfader. An Assign button selects whether the channel appears on the X or Y side of the Crossfader.

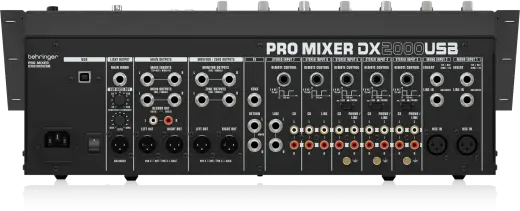

For the DJ in need of mammoth bass, the DX2000USB features an XLR Sub Bass Out (perfect for connecting to an active subwoofer) with an adjustable Crossover Frequency (30 - 200 Hz) and dedicated Level control. Directly above, the DX2000USB provides a 1/4" Main Mono ouput for synching your music's strongest pulses with a lighting system. The Main Output section offers 1/4" and XLR stereo outputs, as well as 1/4" inputs for connection to outboard EQ units. This section also features RCA outputs for recording your set. The Monitor/Zone Output section gives you stereo 1/4" and XLR Monitor Outputs, as well as 1/4" stereo Zone Outputs.
The phenomenal PRO MIXER DX2000USB's superior build quality and rugged components mean this mixer will serve you well for years to come. The DX2000USB includes removeable rack ears (8 RU) and a power cord.
Features
• Professional, 7-channel, ultra-low noise DJ mixer with state-of-the-art phono preamps• 45-mm infinium contact-free optical crossfader with adjustable friction for years of use
• 5 dual stereo inputs plus 2 mono mic/line channels with ULN mic preamps, Gain control and Clip LED
• Built-in USB interface for recording and playback of any digital music file. Works with your PC or Mac computer no setup or drivers required
• Massive software bundle including Audacity vinyl restoration and recording, Podifier and Golden Ear podcasting software downloadable at www.behringer.com
• Ultra-musical 3-band kill EQ (-32 dB) with EQ on/off switch on all stereo channels
• Long-wearing 100-mm faders and sealed rotary controls on all input channels
• Headphone output with Level and Balance (PFL/Main) controls, switchable split mode and level display
• Auto-talkover function with separate Sensitivity, Time and Damping controls
• Main Dim, main Boost, Punch and Cut functions for awesome mix options
• Subbass Out for separate subwoofer, additional Zone output for second room/area
• "Planet Earth" switching power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
• Rack mount brackets included for ultimate flexibility
Specifications
Number of Channels: (5) Stereo + (2) Mic/Aux
Performance Controls: EQ
Faders:
(7) 3.9" / 100 mm Channel Level
(1) Crossfader w/dedicated Curve control
Built-In Effects: No
Sample Rates: 48 kHz
Connectivity
Audio Inputs
(2) XLR 3-Pin Balanced Mic Input
(2) 1/4" TRS Balanced Line Input
(7) Stereo 2RCA Coaxial Unbalanced Line Input
(3) Stereo 2RCA Coaxial Unbalanced Phono Input
(2) 1/4" TS Unbalanced Line Input
(1) Stereo 2RCA Coaxial Unbalanced Return Input
Audio Outputs
(2) XLR 3-Pin Balanced Master Output
(1) XLR 3-Pin Balanced Master/Subwoofer Output
(2) 1/4" TRS Balanced Master Output
(1) 1/4" TRS Balanced Master/Subwoofer Output
(1) Stereo 2RCA Coaxial Balanced Master Output
(2) XLR 3-Pin Balanced Booth/Zone Output
(2) 1/4" TRS Balanced Booth Output
(2) 1/4" TRS Balanced Zone Output
(1) 1/4" TRS Unbalanced Send Output
(1) Stereo 2RCA Coaxial Unbalanced Line Output
(1) 1/4" TRS Unbalanced Headphone Output
USB: 1x USB-B (Host Connection)
Wireless: No
Media Card Slots: No
Phantom Power: 48 V
Power
AC Input Power: 100 to 240 VAC, 50/60 Hz
Power Consumption: 40 W
Physical
Rackmount Size: 8U (with included rack ears)
Dimensions (H x D x W): 160 x 340 x 440mm (6.29 x 13.38 x 17.32")
Weight: 6.7 kg (14.7 lbs)
