ATC Loudspeakers SCM105AC Pro 3-Way Active Mid-Field Centre Channel
Additional Photos:
Great Additions
Description
The SCM105AC has been designed specifically as a centre channel monitor, with reduced cabinet height, to ease fitment in crowded control rooms.
It is based upon the SCM110A Pro mid-field monitor and can partner a range of ATC 3-way mid-field monitors in 5.1, 7.1 surround or immersive audio formats such as Dolby Atmos.
Features

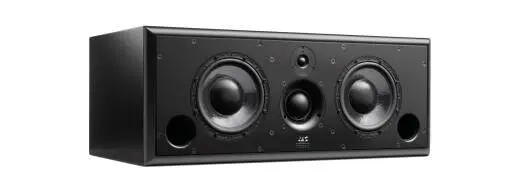

• Low height cabinet design to ease of fitment into crowded control rooms• Symmetrical driver layout
• Ideal partner for the scm50/100/110a pro stereo monitor loudspeakers

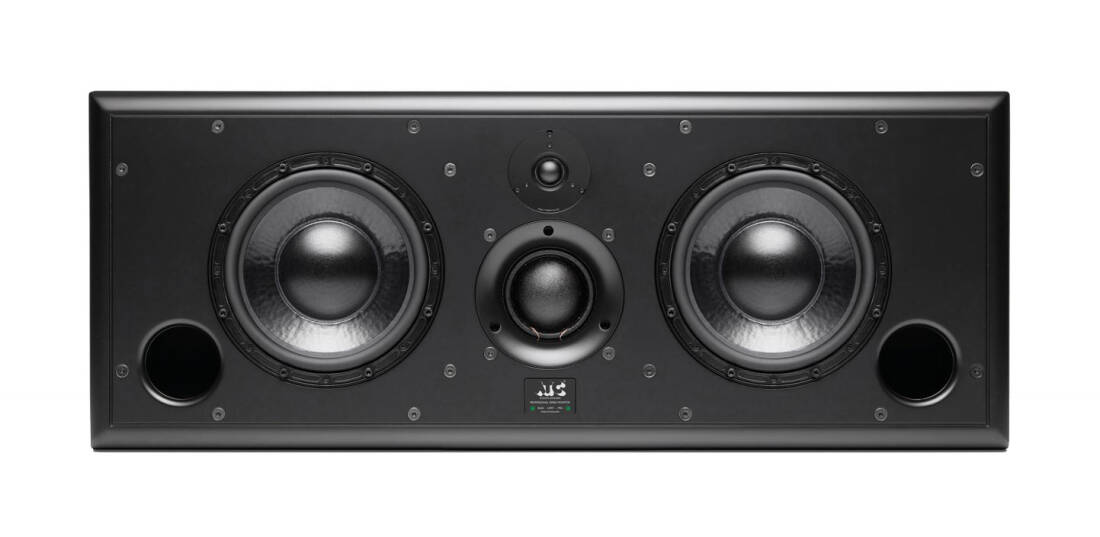

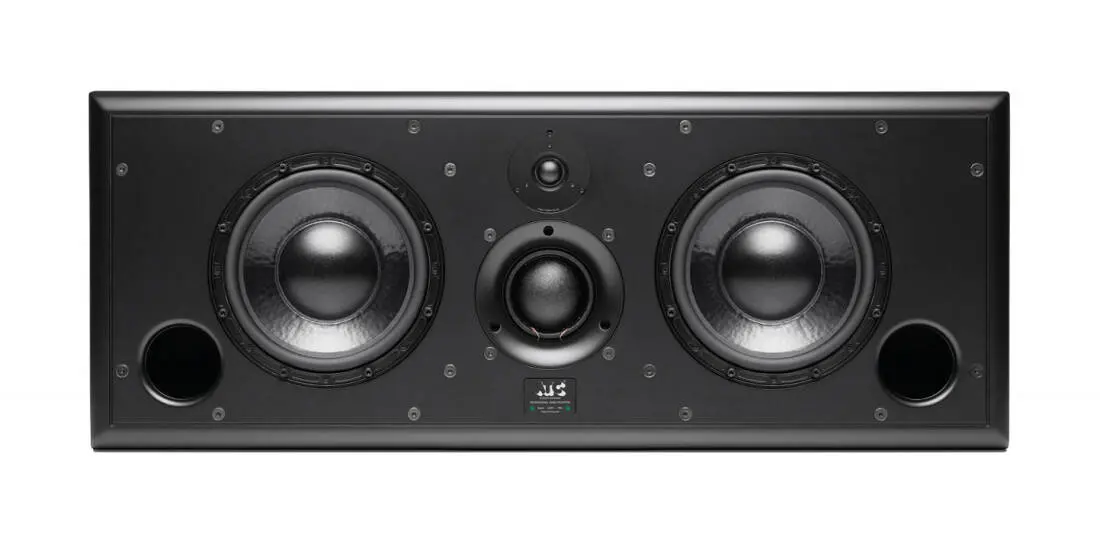

• Dual 9"/234mm sl bass drivers, 3"/75mm soft-dome mid, 1"/25mm soft-dome tweeter
• 3-way active design featuring precision active crossovers & discrete mosfet power amplifers, integrated as atc proprietary 'amp-pack'
• Wide dynamic range and bandwidth
Specifications
- Low Frequency Cut-off: 30Hz (-6dB, anechoic)- High Frequency Cut-off: 25kHz (-6dB)
- Amplitude Linearity: 50Hz - 17kHz (+/- 2dB)
- Matched Response: +/-0.5dB
- Crossover Points: 380Hz & 3.5kHz
- MaxSPL: 115dB continuous, 121dB peak (per pair, IEC Weighted Pink Noise, 1m, anechoic)
- System Sensitivity: 85dBC ref. -20dBu (per single unit, 1m, pink noise, bass boost 0dB, sensitivity 2.2dBu/1V)

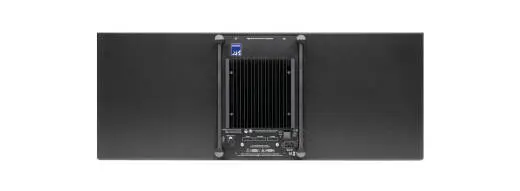

- Balanced Input: 1 x Rear Panel Mounted Female XLR, pin 2 hot
- Input Impedance: 20kΩ (differential)
- Input CMRR: 82dB (10kHz)
- Input Sensitivity: 2.2dBu/1Vrms for full power
- Input Sensitivity Control: Continuously Variable from 2.2dBu - 8.2dBu / 1Vrms - 2Vrms (-6dB)
- Bass Boost Control: Continuously variable from 0dB to +6dB
- Crossover Filters: 4th Order Linkwitz-Riley
- Frequency Response: 2Hz to 200kHz (-3dB)
- Amplifier type: Grounded Source MOSFET based Class A/B, convection cooled
- Output Power: Bass 200W (8Ω), Mid 100W (16Ω), HF 50W (6Ω)
- THD+N: 0.003%/-92dB (1kHz, 1dB below rated power, 90kHz BW)
- Limiter: ATC Active FET Momentary Gain Reduction, limiter 'active' indicated via front panel LED
- Mains Input: Rear panel mounted, 220-230V or 115V - Factory set. Please observe panel markings and labels
- Power Consumption: Idle 37W /51VA. 1/8th Power 132W/178VA. Full Power 321W/403VA
- Heat Output: Idle 126 BTU/hr. 1/8th power 366 BTU/hr. Full Power 413BTU/hr
Drive Units
- Bass: 2 x SB75-234SL 16Ω
- Mid: 1 x SM75-150S 16Ω
- HF: 1 x SH25-76S 6Ω
