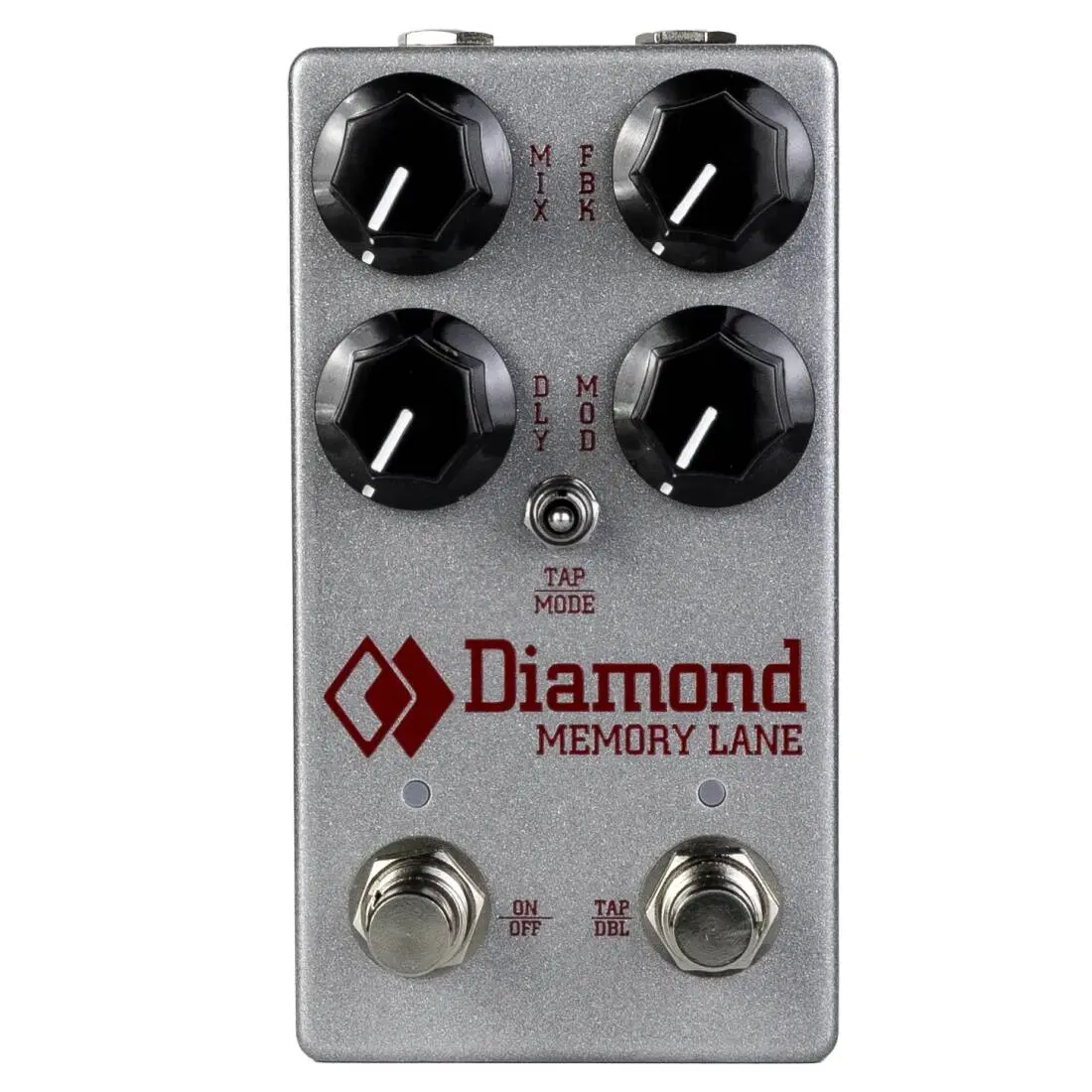

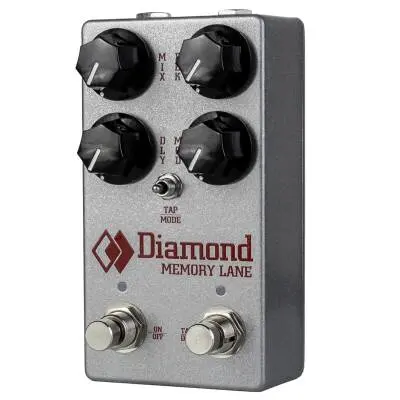

Diamond Guitar Pedals Memory Lane STM32 Hybrid Delay Pedal
Additional Photos:
Great Additions
Description
At its core lies Diamond's digital Bucket Brigade Delay (dBBD) architecture, a unique system that blends analog companding, precision filtering, and a custom-voiced delay line. The result is unmistakably musical, dimensional sound with up to 2.4 seconds of delay time.
With industrial-grade converters mated to warm and dynamic analog circuitry, and built-in protection against polarity and over-voltage mistakes, the Memory Lane isn't just versatile - it's road-ready.
From lush ambience to rhythmic drive, the Diamond Memory Lane is more than just a delay pedal. It's the next chapter in a legendary story of time, tone, and inspiration.
Four Inspiring Modes
MLjr Mode - Classic fixed-rate delay with silent tempo changes, true to the Memory Lane Jr.Vintage Mode Warm, saturated repeats that capture the soul of vintage analog delays.
Galloping 2-Head A rhythmic, dual-head pattern inspired by the Counterpoint delay.
Ambient 3-Head Expansive, cascading repeats perfect for layered soundscapes.
Each mode responds like a living instrument, with the compander adding smooth compression, anti-aliasing filters enhancing warmth, and the analog feedback path highlighting harmonic richness.
Subdivisions & Doubler
Stay perfectly in time with tap tempo and three intuitive subdivisions:• Quarter note (green LED)
• Dotted eighth note (yellow LED)
• Half note (red LED)
Engage the Doubler function by holding the Tap Tempo footswitch to seamlessly double your delay time. For even more flexibility, the Doubler can be set to momentary or latching operation, letting you decide whether it's a quick burst of energy or a locked-in groove.
Designed for Real-World Use

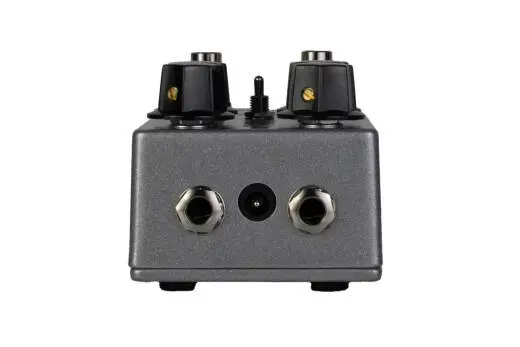

Powered by a modern STM32 ARM Cortex processor, the new Memory Lane offers improved headroom, a lower noise floor, and extended delay range - all in a compact, pedalboard-friendly format. With top-mounted jacks, buffered bypass with trails, and flexible 915V DC operation (with over-voltage protection), it's built for years of dependable use on stage or in the studio.Specifications
Input Impedance: > 1 MΩOutput Impedance: < 10 KΩ
Delay Range: 25ms-2.4s
Switching: Buffered Bypass
Power Requirement: 9-15VDC negative tip, 2.1mm Barrel Jack
Current Draw @ 9V: 50mA
Dimensions: 4.8 x 2.64 x 1.58"
Weight: 300g
