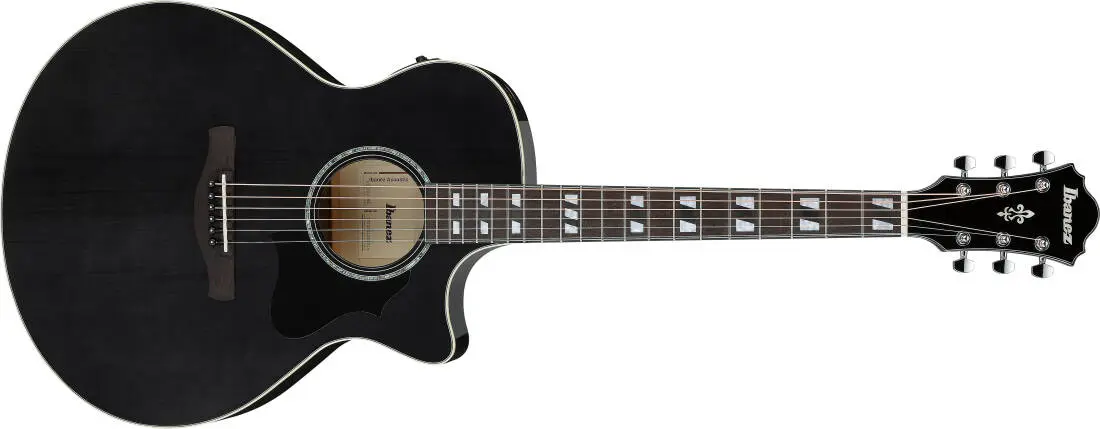

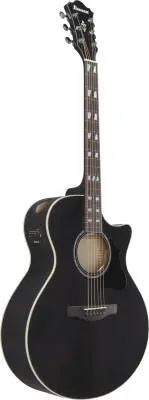

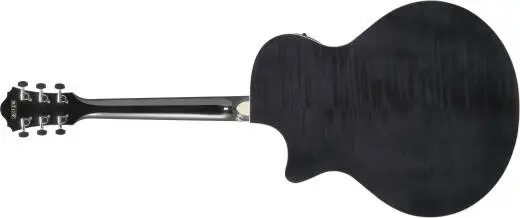

Ibanez AE170 Acoustic/Electric Guitar - Transparent Black High Gloss
Additional Photos:
Free Setup Included
In addition to the benefits of the Performance Warranty, we offer one complimentary setup with the purchase of a new or used guitar, to be redeemed at any Long & McQuade location within the initial free-warranty period (1-year on new, 90-days on used).
This Includes:
- Restring (Strings not included).
- Tighten and lubricate all hardware.
- Clean and test electronics.
- Replace battery if needed (Battery not included).
- Adjust or rehang loose wiring.
- Clean and condition the fingerboard.
- Fret polish to remove minor scratches, pits and corrosion.
- Cleaning of the entire instrument.
- Adjust truss-rod to correct neck relief.
- Adjust saddle radius to match fingerboard.
- Adjust action at bridge.
- File nut slots for proper string movement.
- Adjust intonation.
- Adjust tremolo bridge setting to player's preference.
- Add/remove trem-springs as needed (Parts not included).
- Adjust pickup balance.
- Full inspection and play test.
Long & McQuade Performance Assurance
Buying a new instrument is an exciting event and we want to ensure that every instrument we sell comes exactly how the manufacturer intended it to be. That is why Long & McQuade performs a quality control check for every stringed, brass, and woodwind instrument over $99 ordered online at Long-McQuade.com.
Our team of experienced staff will unbox your instrument and perform a detailed inspection to ensure it leaves our warehouse looking and playing great with our QC card signed and dated for your peace of mind.
We work hard to source the best instruments from around the world from the finest brands. It is important to us that you are completely satisfied with your new instrument purchase from day one onwards.
Stringed Instrument Performance Assurance Checklist
Unlike our free set-up, which is included within the first year of purchase, this process is done to have the instrument set to the factory specs rather than to each player's feel or preferences.
We look after the following:
- Inspect finish and hardware.
- Check electronics to make sure everything is in working order. Check batteries on active pickups.
- Inspect strings.
- Inspect frets and fretboard.
- Check truss rod. Adjust for bow and relief.
- Tune instrument to manufacturer's specified tuning.
- Check/set action height.
- Stretch strings and re-tune instrument and ensure machine heads are working well.
- Check for fret buzz by playing every note.
- Check/set intonation.
- Check/set pickup height.
- Cleaning and professional repacking.
Great Additions
Description

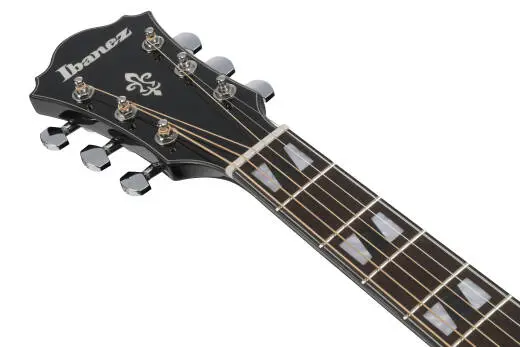

Comfort Grip Maple neck
The Comfort Grip Maple Neck contour provides superior playability.
Thermo Aged™ Ovangkol fretboard
Thermo Aged™, a special drying process, makes the Ovangkol fretboard light and harder and provides increased stability.

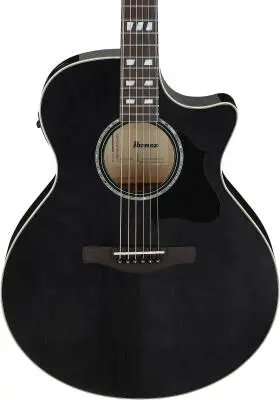

Solid Sitka Spruce top
Solid Sitka Spruce top provides an enormous frequency range that offers wave after wave of shimmering highs along with tight mids and a full-bodied low end.

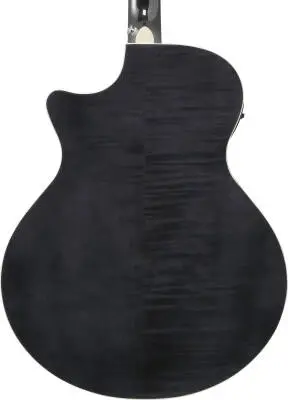

Flamed Maple back and sides
Flamed Maple back and sides create an attractive visual profile and offer bright and tight tones.
Ibanez T-bar Undersaddle pickup
The Ibanez T-bar Undersaddle pickup accurately translates that full sound to whatever amplification system you plug it into.

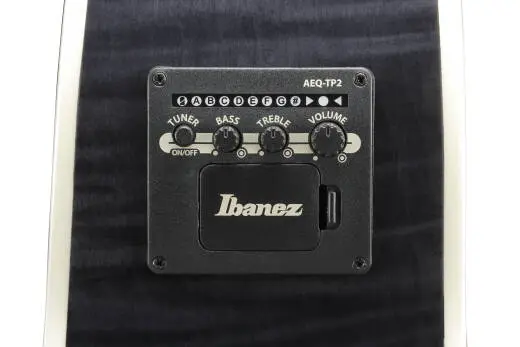

Ibanez AEQ-TP2 preamp w/Onboard tuner
The Ibanez AEQ-TP2 preamp provides the extra punch of on-board EQ along with a convenient and easy-to-read digital tuner and 2-band EQ, located on the instrument's upper bout.
Thermo Aged™ Ovangkol Scalloped bridge
The lightweight, scalloped bridge enhances vibration transfer for improved resonance and offers greater flexibility when adjusting the action compared to a traditional bridge. Thermo Aged™, a specialized drying process, makes the bridge even lighter and harder for increased stability.
Ibanez Advantage™ bridge pins
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
A.I.R.port
Through intensive research and development, we have designed the A.I.R.port with a unique internal structure that reflects sound waves and guides them to exit from a precisely positioned sound hole. As a result, players can monitor what they are playing more clearly, which enhances the overall playing experience.
X-M Bracing
After spending years of trial-and-error, Ibanez realized the out-of-the-box X-M Bracing to generate the ultimate sound standing out on the stage. The carefully designed scalloped X-bracing, the allocation of tone braces, and finger braces transmit the string vibration efficiently through the bridge to the body. The X-M Bracing creates the clear bottom and crispy treble sound with trimmed warm mid-range, yet provides a wide dynamic range and high response.
AE body shape
Designed for projection, balance, and comfort, the AE's perfectly crafted contemporary body shape offers the best of all worlds.
Specifications
Number of Strings: 6Neck Type: Comfort Grip
Neck Joint: Dovetail
Neck Joint Position: 14th fret joint
Neck Material: Maple
Neck Finish: Gloss Polyurethane
Neck Thickness (1st fret, mm):20
Neck Thickness (7th fret, mm):21
Scale (inches):25
Scale (mm): 634
Nut Width (inches): 1.7
Nut Width (mm): 43
End Width (mm): 54.33 at 14F
Number of Frets: 20
Fretboard: Thermo Aged™ Ovangkol
Fretboard Radius (inches): 15.75
Fretboard Radius (mm):400
Inlay: Acrylic block
Body Shape (for Acoustic): AE (Shallower body depth)
Body Top Material (for Acoustic/Hollow): Solid Sitka Spruce
Body Sides Material (for Acoustic/Hollow): Flamed Maple
Body Back Material (for Acoustic/Hollow): Flamed Maple
Body Depth (for Hollow): 4.528
Body Width (for Hollow): 16.25
Body Length (for Hollow): 20.125
Soundhole Rosette: Abalone
Bracing: X-M Bracing
Body Depth at Joint: 95
Body Depth at End: 115
Body Finish: Gloss Polyurethane
Total Length (mm): 1050
Body Thickness (mm): 115
Body Length (mm): 510
Body Width (mm): 410
Bridge: Thermo Aged™ Ovangkol Scalloped
Bridge Pins: Ibanez Advantage™
Saddle Material: Plastic
String Spacing (mm): 11
Nut: Plastic

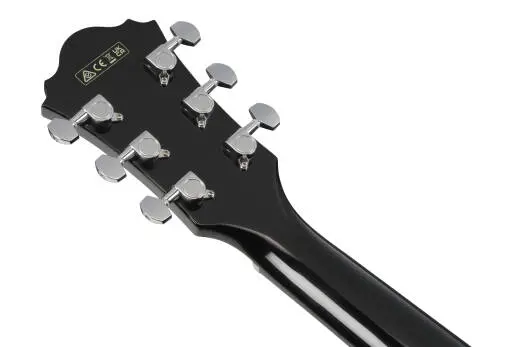

Machine Head: Chrome Die-cast tuners (18:1 gear ratio)
Other Pickup: Ibanez T-bar Undersaddle
Preamp (for Acoustic): Ibanez AEQ-TP2 preamp w/Onboard tuner
Controls, Pickup Selector: 1 Volume, Bass, Treble
Other Switches:Tuner on/off switch

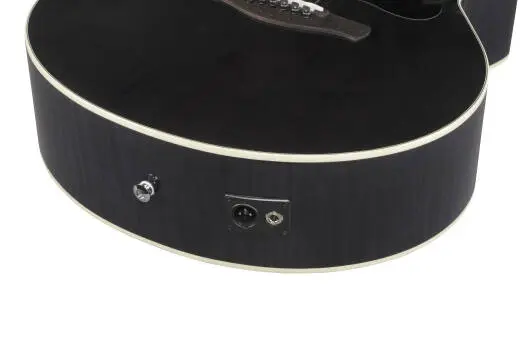

Output Jack: Balanced XLR & 1/4" outputs
String Gauges (from top to bottom): .012/.016/.024/.032/.042/.053
Special Strings: D'Addario® XTAPB1253
Tuning (from top to bottom): 1E,2B,3G,4D,5A,6E
Recommended Case: FS40DA
Recommended Bag: IAB540-BK
Other item(s) Included: Hex wrench, Saddle, Bridge pin, A.I.R.port cover
Batteries Required: 9V x1
