Roland GO:Mixer Studio Audio Interface
Additional Photos:
Description
Portability

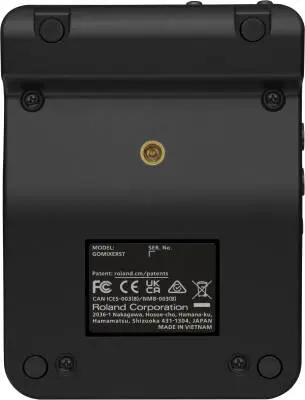

GO:MIXER STUDIO is compact and lightweight for easy mobile creation, with an underside camera mount for secure setup on stands.
Effects
Built‑in effects were a top request from GO:MIXER users. GO:MIXER STUDIO delivers compression and reverb modeled after legendary studio gear, in addition to EQ, and reverb, letting users shape polished, share‑ready sound without post‑processing.

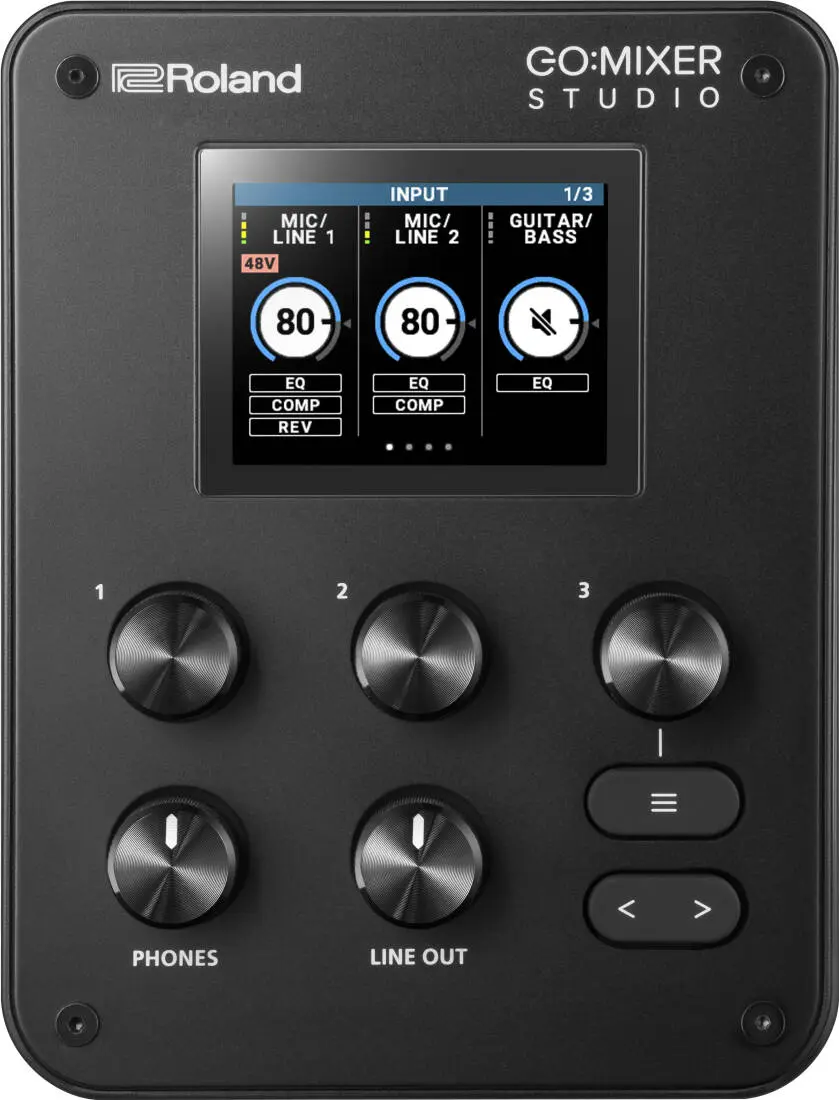

LCD Screen
GO:MIXER STUDIO's clear color LCD lets users adjust inputs, outputs, effects, and mix balance directly on the unit, enabling standalone use as an audio mixer. Save and recall setups to speed up familiar sessions.
Power
GO:MIXER STUDIO powers via the included USB‑C cable to your device for simple workflow, or connect an additional USB‑C power source (e.g. wall outlet or power bank), you can charge your iPhone while recording, allowing for extended mobile recording sessions.
Sound
GO:MIXER STUDIO delivers studio‑quality mobile recording with dual wide gain range (+75dB) mic preamps, phantom power, and up to 24‑bit/192kHz resolution-no compromise on sound, anywhere.
Software
The GO:MIXER Cam iOS app lets creators capture high‑quality multi‑track PCM audio with video, then mix tracks post‑recording for a ready‑to‑upload result-saving time and steps. For DAW users, GO:MIXER Editor offers full parameter control on a larger screen for fast adjustments during sessions.
Flexible I/O
GO:MIXER STUDIO features a huge selection of I/O ideal for any recording setup, with a total of 12 audio inputs and 6 audio output tracks that can be recorded/used via USB simultaneously.
Features
• Capture studio quality audio anywhere using an iOS mobile device or PC/Mac• Use without mobile device or PC as a stand‑alone audio mixer into speakers
• Compact and portable design with underside mounting screw to easily setup at any location
• Record at up to 24bit 192KHz resolution for professional studio quality sound
• A total of 12 Inputs / 6 Outputs can be used simultaneously for recording several sources at once
• Loopback audio function for blending backing tracks from PC
• Separate PC channels can be sent to headphone only for monitoring (eg Click track for drummer)
• Balance and mix audio tracks after recording to create the perfect mix
• Editor App for PC allows users to edit all aspects of GO:MIXER STUDIO from their PC
Specifications
Number of USB Audio Channels- Input: 12 channels
- Output: 6 channels
Sample Rate
- AD/DA conversion: 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
Signal Processing
- AD/DA conversion: 24 bits
- Internal Processing: 32-bit Floating point
Connectors
- MIC/LINE (1, 2) jacks: XLR type (Phantom power DC 48 V, 10 mA Max)
- GUITAR/BASS jack: 1/4-inch phone type (supports high impedance)
- LINE IN (L, R) jacks: 1/4-inch phone type
- AUX jack: Stereo miniature phone type (TRRS)
- PHONES jack: Stereo 1/4-inch phone type
- PHONES (MINI) jack: Stereo miniature phone type (CTIA, PLUG-IN power)
- LINE OUT (L, R) jacks: 1/4-inch phone type
- MIDI (IN, OUT) jacks: Stereo miniature phone type
- USB port: USB Type-C (R) (USB Audio Class 2.0/1.0, MIDI)
- POWER port: USB Type-C (R)
Effects
- MIC/LINE: Equalizer, Compressor, Reverb
- GUITAR/BASS: Equalizer, Compressor, Reverb
- LINE IN: Equalizer, Compressor
- AUX: Equalizer, Compressor
- HEADSET MIC: Equalizer, Compressor
- PHONES: Equalizer
- LINE OUT: Equalizer
Scene Memory
- 16
Input Level
- MIC/LINE: -83.0-- -8 dBu (Maximum: +4 dBu)
- GUITAR/BASS: -44-- -4 dBu (Maximum: +17 dBu (PAD ON))
- LINE IN: -4 dBu (Maximum: +8 dBu)
- HEADSET MIC: -22.5 dBu (Maximum: -10.5 dBu)
- AUX: -10 dBu (Maximum: +2 dBu)
Input Impedance
- MIC/LINE: 5.6 k ohms (balanced)
- GUITAR/BASS: 1 M ohms
- LINE IN: 9.1 k ohms
- HEADSET MIC: 1.5 k ohms
- AUX: 9.1 k ohms
Output Level
- LINE OUT: -4 dBu (Maximum: +8 dBu)
- AUX: -32 dBu (Maximum: -20 dBu)
- PHONES: -4 dBu (Maximum: +8 dBu)
- PHONES: 69 mW + 69 mW (32 ohms)
- PHONES: 18 mW + 18 mW mW (250 ohms)
Output Impedance
- LINE OUT: 1.8 k ohm
- AUX: 940 ohms
- PHONES: 10 ohms
Display
- Graphic color LCD 320 x 240 dots
Power
- USB bus power
- USB PD compatible AC adapter (commercially available)
Current Draw
- 5 V DC, 0.5--3 A
- 9 V DC, 3 A
