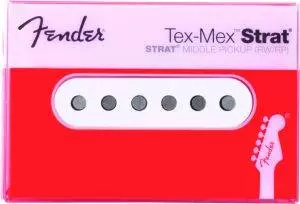

Fender Single Tex-Mex Strat Middle Pickup

As Heard on
Fender Jimmie Vaughan Tex-Mex Stratocaster guitar

Fender Tex-Mex Strat single-coil pickups offer increased output, sparkling highs and attention-grabbing warm tone that keeps all the characteristics of your favorite vintage-style Stratocaster. From Texas grit to soaring clean tone, theyre the pickups of choice for versatile players.

Tonal Characteristics
• Staggered polepieces balance volume and output across every string
• Reverse-wound/reverse-polarity middle pickup cancels hum in pickup-switch positions two and four
• Alnico 5 magnets add more focus and enhanced dynamics
• Over-wound bridge pickup produces tight, clear bass and maximum output

Product Details
• Polysol-coated magnet wire
• Vinyl-coated output wire and durable plastic bobbin construction
• Available with white pickup covers

Included Components
Fender Tex-Mex Strat pickups come with all parts needed for installation, including:
• Mounting screws
• Pickup height adjustment tubing
• Wiring diagram

Output Rating (Bass/Mid/Treble)
• Neck: 4/5/5
• Middle: 4/5/5
• Bridge: 7/5/5

DC Resistance
• Neck: 6.4k ohms
• Middle: 6.4k ohms
• Bridge: 7.4k ohms
