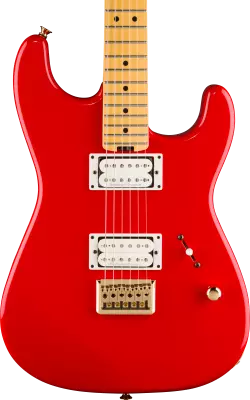

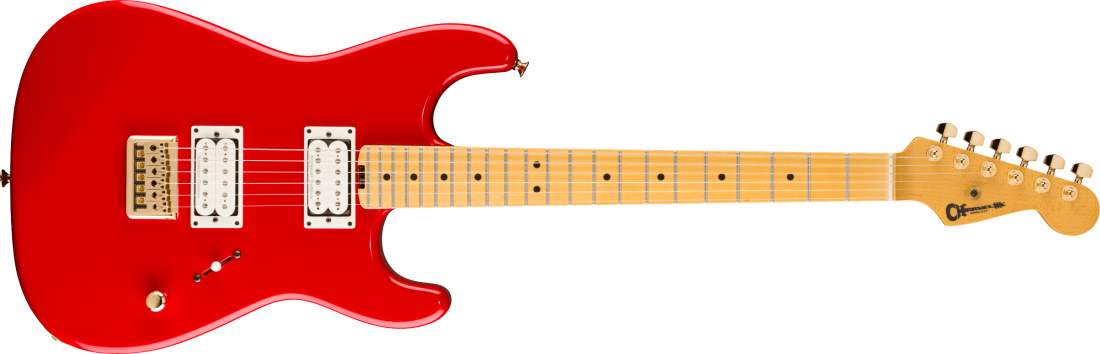

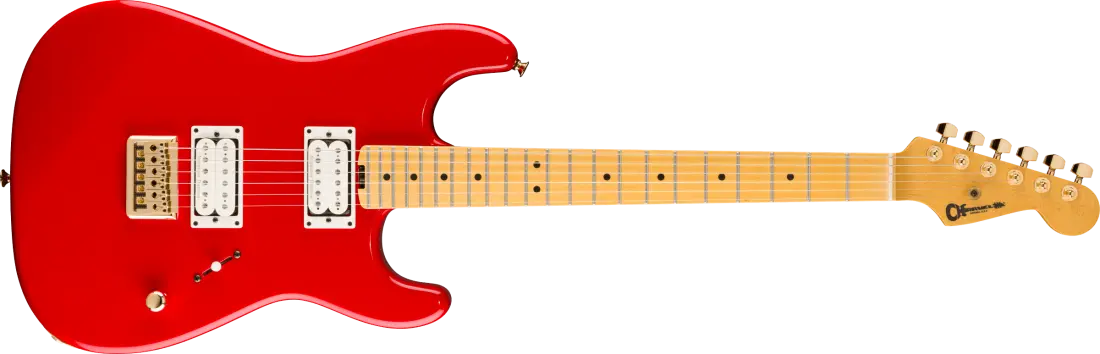

Charvel Guitars American Neo-Classic San Dimas Style 1 HH HT, Maple Fingerboard - Racing Red
Additional Photos:
Product Videos :
Free Setup Included
In addition to the benefits of the Performance Warranty, we offer one complimentary setup with the purchase of a new or used guitar, to be redeemed at any Long & McQuade location within the initial free-warranty period (1-year on new, 90-days on used).
This Includes:
- Restring (Strings not included).
- Tighten and lubricate all hardware.
- Clean and test electronics.
- Replace battery if needed (Battery not included).
- Adjust or rehang loose wiring.
- Clean and condition the fingerboard.
- Fret polish to remove minor scratches, pits and corrosion.
- Cleaning of the entire instrument.
- Adjust truss-rod to correct neck relief.
- Adjust saddle radius to match fingerboard.
- Adjust action at bridge.
- File nut slots for proper string movement.
- Adjust intonation.
- Adjust tremolo bridge setting to player's preference.
- Add/remove trem-springs as needed (Parts not included).
- Adjust pickup balance.
- Full inspection and play test.
Long & McQuade Performance Assurance
Buying a new instrument is an exciting event and we want to ensure that every instrument we sell comes exactly how the manufacturer intended it to be. That is why Long & McQuade performs a quality control check for every stringed, brass, and woodwind instrument over $99 ordered online at Long-McQuade.com.
Our team of experienced staff will unbox your instrument and perform a detailed inspection to ensure it leaves our warehouse looking and playing great with our QC card signed and dated for your peace of mind.
We work hard to source the best instruments from around the world from the finest brands. It is important to us that you are completely satisfied with your new instrument purchase from day one onwards.
Stringed Instrument Performance Assurance Checklist
Unlike our free set-up, which is included within the first year of purchase, this process is done to have the instrument set to the factory specs rather than to each player's feel or preferences.
We look after the following:
- Inspect finish and hardware.
- Check electronics to make sure everything is in working order. Check batteries on active pickups.
- Inspect strings.
- Inspect frets and fretboard.
- Check truss rod. Adjust for bow and relief.
- Tune instrument to manufacturer's specified tuning.
- Check/set action height.
- Stretch strings and re-tune instrument and ensure machine heads are working well.
- Check for fret buzz by playing every note.
- Check/set intonation.
- Check/set pickup height.
- Cleaning and professional repacking.
Great Additions
Description
The custom Seymour Duncan® JB/59 pickup combination with parchment bobbins offers ultimate sonic versatility - the neck position '59 delivers creamy vintage warmth for expressive leads and rich rhythms, while the bridge JB provides high-output bite for everything from soaring solos to crushing riffs. The one-piece quartersawn maple neck is carefully reproduced from authentic 1980 specifications and enhanced with graphite reinforcement, ensuring legendary feel with unmatched modern stability.
The innovative 12"-16" compound radius fingerboard starts comfortable for chording and opens up dramatically for effortless lead work, while 22 jumbo stainless steel frets provide exceptional note definition. Performance features include the truss rod adjustment wheel at the fingerboard's end for lightning-fast setup changes, rounded fingerboard edges that feel like a glove, and Luminlay® side-dots for perfect position awareness.
The Charvel hardtail delivers rock-solid tuning stability, while streamlined electronics featuring a single lo-friction volume pot and 5-way blade switch put pure tone at your fingertips. This is your gateway to sonic excellence - authentic 1980 Charvel craftsmanship meets tomorrow's innovation in one irresistible package.
Specifications
GeneralSeries: American Neo-Classic Series
Orientation: Right-Hand
Country of Origin: US
Case/Gig Bag: Included Charvel® Multi-Fit Hardshell Gig Bag
Neck

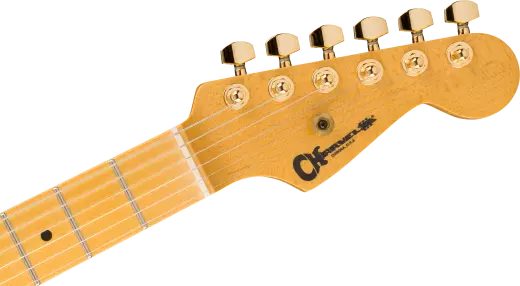

Headstock: Licensed Fender® Stratocaster®
Neck Material: Quartersawn Maple
Neck Finish: Natural Satin
Neck Shape: Speed Neck with Rolled Fingerboard Edges
Neck Construction: Bolt-On with Graphite Reinforcement
Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material: Quartersawn Maple
Position Inlays: Black Dot
Side Dots: Luminlay®
Number of Frets: 22
Truss Rod: Dual-Action with Wheel
Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
String Nut: Bone
Nut Width: 1.6875" (42.86 mm)
Nut Material: Bone
Fret Size: Jumbo Stainless Steel
Scale Length: 25.5" (648 mm)
Body
Body: Alder
Body Finish: Gloss
Body Shape: San Dimas® Style 1
Body Style: Solid Body
Body Material: Alder
Hardware
Bridge: Charvel® Hardtail
Pickguard: None
Pickup Covers: Parchment
Control Knobs: Dome-Style
Switch Tip: Parchment
Hardware Finish: Gold

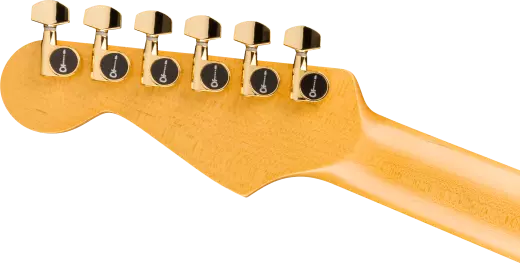

Tuning Machines: Charvel® Sealed Die-Cast Locking
String Trees: Vintage-Style Disc
Strings: Nickel Plated Steel (.009-.042 Gauges)
Neck Plate: 4-Bolt Serialized
Strap Buttons: Standard
Electronics
Bridge Pickup: Seymour Duncan® JB™ TB-4
Neck Pickup: Seymour Duncan® '59™ SH-1N
Pickup Configuration: HH
Controls: Volume (500K EVH® Bourns® Low Friction Pot)
Switching: 5-Position Blade: Position 1. Bridge, Position 2. Bridge Outer Coil and Neck Inner Coil, Position 3. Bridge and Neck, Position 4. Bridge Inner Coil and Neck Outer Coil, Position 5. Neck
Media
Q & A
Reviews
Protect your investment with the Long & McQuade Performance Warranty
A warranty can be a very important factor when making a buying decision. Because repairs can be very expensive in terms of parts and labour costs, manufacturers usually only provide one year limited warranties that generally only cover items that malfunction due to a manufacturer’s defect. With an important purchase such as a musical
instrument or piece of studio gear, however, many people want to have the peace of mind in knowing that their investment will be protected should the product no longer be performing at 100%.
Because of this, Long & McQuade provides our customers with a FREE one-year Performance Warranty on most of our products. The Long & McQuade Performance Warranty supplements the manufacturer’s warranty to ensure that our customers receive complete “no hassle” warranty coverage within their first year.
How does the Long & McQuade Performance Warranty differ from most manufacturers' warranties?
- Performance Guarantee: Normal wear and tear is covered, so your product will be performing as well as the day you purchased it for the entire duration of the coverage. Band and Orchestral Performance Warranty does not include replacing pads or cleaning for woodwind instruments, unless deemed necessary by our repair staff. Ultrasonic cleaning for brass instruments will be provided if deemed necessary by our repair staff, but is not routinely offered under the Performance Warranty.
- Product Replacement: If your product cannot be fixed or costs too much to fix, we will replace it with the equivalent model for no additional charge. If this is not possible, a full refund will be provided.
- No Lemon Policy: Your product will be replaced should the same problem occur multiple times.
- Convenient: Easy drop off and pick up of the product at any Long & McQuade location.
- Guitar Setup: Guitars purchased at Long & McQuade come with 1 free setup, to be redeemed within 1 year for new guitars and 90 days for used guitars.
- Loaners Available: A loaner product may be given while the product is being repaired.
- Power Surge Protection: Your product is covered even if damaged from a power surge.
- Accessory Coverage: Any peripheral devices or accessories that come with your product (i.e. foot pedal, case) are also covered.
- Commercial Use Coverage: Music and recording professionals who purchase gear for “heavy-use” commercial purposes will still be covered.
Long & McQuade reserves the right to restrict the purchase of additional years of Performance Warranty. Used products come with a 3-month Long & McQuade Performance Warranty. Some products (i.e. computers, software, cymbals and other items) are covered only by the manufacturer‘s warranty. Consumables (i.e. strings, reeds, drum sticks, batteries, tubes, cross faders) are excluded as they are designed to be replaced. Cosmetic Damage, Accidental Damage, or problems caused by Humidity or Temperature Issues are not covered. Speakers damaged by overpowering are generally not covered. Our coverage does not provide compensation for loss of use. As of June 2018 the Performance Warranty is no longer transferable. The warranty is only valid in Canada.
Purchasing additional years of coverage
Some manufacturers provide warranties for longer than 1 year; however, these are usually limited warranties that do not provide the same coverage as the Long & McQuade Performance Warranty. Customers interested in more complete and convenient (but not necessarily longer) coverage are still able to purchase additional years of the Performance Warranty.
If you are interested in receiving this coverage for longer than one year, you have the option of purchasing additional years of the Performance Warranty. The pricing is as follows:
- NEW products: Starting at 4% of the current new selling price to double the warranty from 1 year to 2 years. Starting at 4% for each additional year.
- USED products: Starting at 4% of the current new selling price to increase the warranty from 3 months to 1 year. Starting at 4% for each additional year.
- GUITARS: 4% of the current new selling price to double the warranty from 1 year to 2 years. 4% for each additional year. $45 maximum. An additional free setup is not included with additional purchased years of Performance Warranty.
- BAND and ORCHESTRAL instruments: 4% of the current new selling price to double the warranty from 1 year to 2 years. 4% for each additional year.
Reserve in Store
| Product | SKU | Qty |
|---|---|---|
| American Neo-Classic San Dimas Style 1 HH HT, Maple Fingerboard - Racing Red | 835645 |
