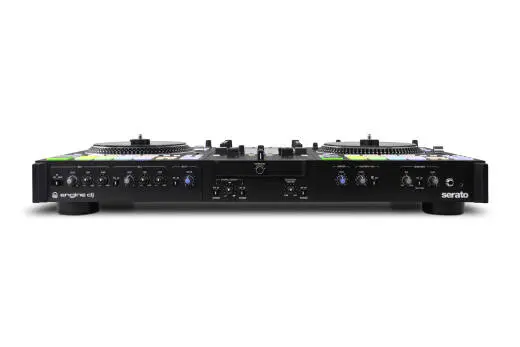

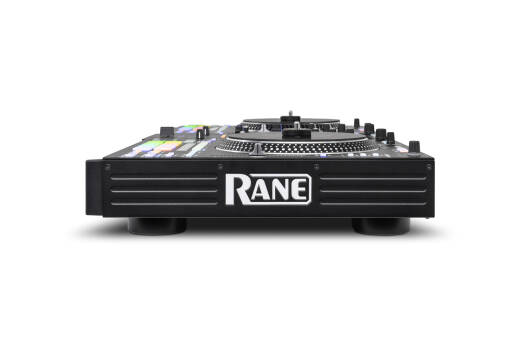

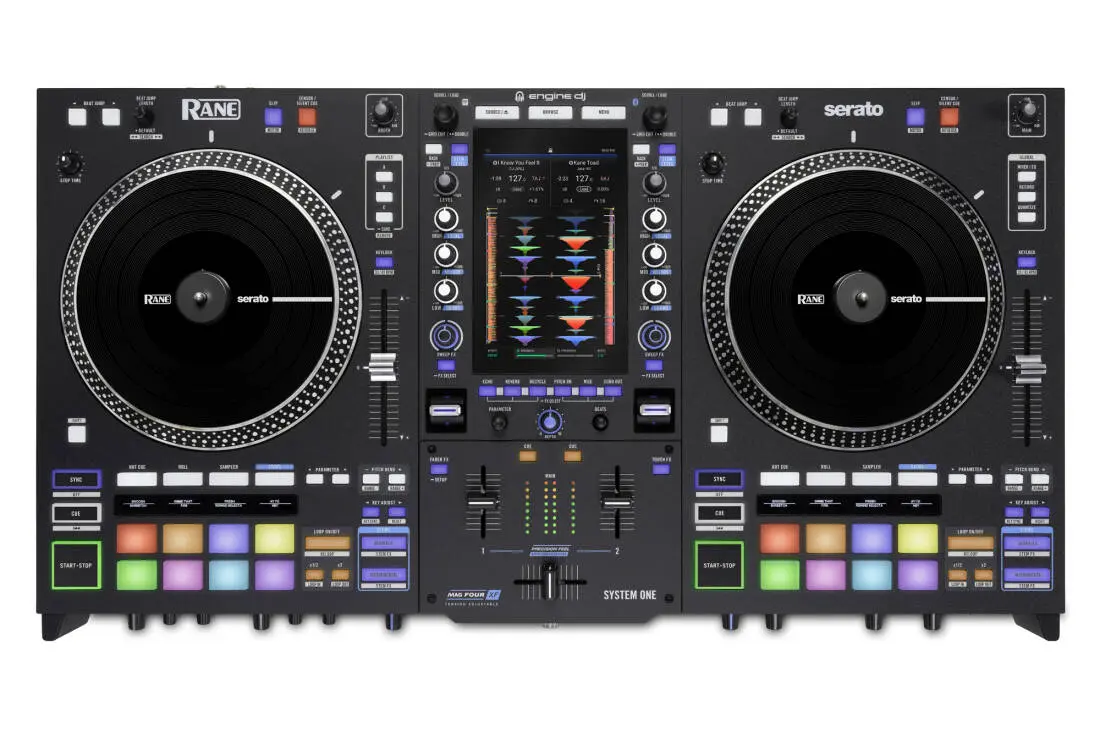

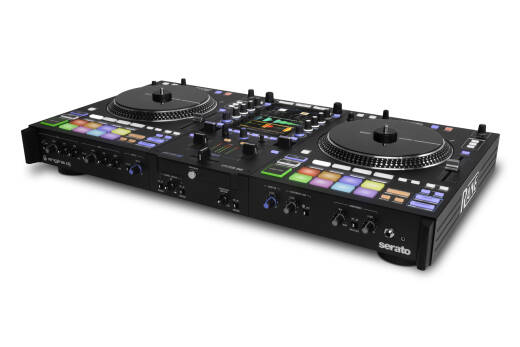

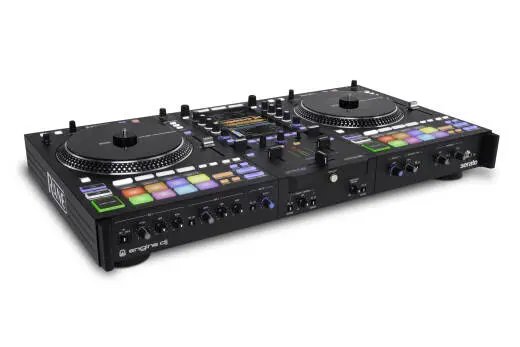

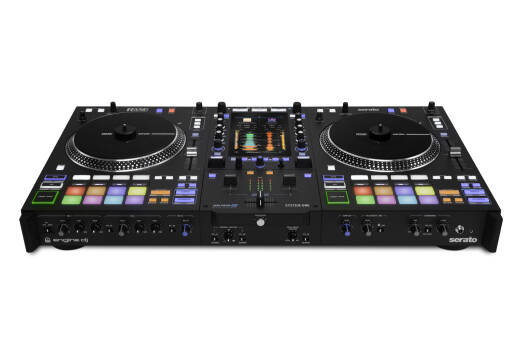

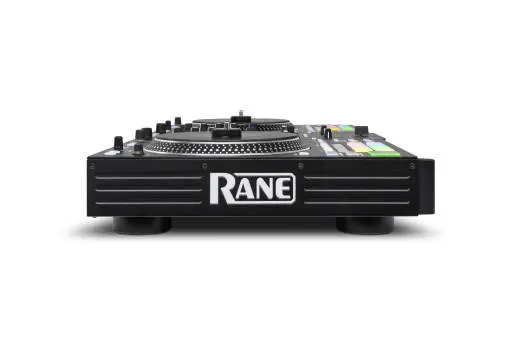

RANE System One All-in-One Standalone Motorized DJ System
Additional Photos:
Product Videos :
YouTube Video
Your Price: $3,499.00 CDN
or from $162 CDN/mo
Description
RANE SYSTEM ONE is the world's first all-in-one standalone DJ system with motorized platters, fusing the legacy feel of turntables with the freedom of modern, laptop-free standalone DJ technology.
The first RANE product with Engine DJ on board, open format DJs can now experience the trusted performance of RANE hardware while seamlessly mixing between standalone media, music streaming services, and Serato DJ software. With a slew of FX options including Fader FX, Sweep FX, Touch FX, and Main FX and multiple ways to DJ with Stems, SYSTEM ONE was designed to unlock new levels of creativity while fueling DJs' passion for the artform.
• High-torque motorized 7.2" platters
• 7" HD touch vertical display with RGB waveforms
• Instant Acapella and Instrumental buttons, Stems pad mode, Stem Level EQ mode, and Stem FX
• OmniSource system architecture for seamless mixing between local media, streaming, cloud services, and computer-based software sources (Serato DJ and Algoriddim djay integration coming early 2026)
• (3) Playlist Banks for quick access to favorite playlists /crates
• Responsive RGB performance pads with OLED displays
• Internal Main FX with paddle activation, Touch FX, Fader FX, and Sweep FX
• Built-in Wi-Fi for access to music streaming platforms, such as Apple Music, Amazon Music Unlimited, TIDAL, Beatport, Beatsource, SoundCloud Go+, and Dropbox
• Standalone Embedded Sampler with dedicated pad mode and front panel volume control knob
• Beat-synchronized lighting control for smart home and DMX lighting powered by SoundSwitch (SoundSwitch hardware is required for DMX lighting control)
• (2) XLR combo jack microphone inputs w/ EQ, Echo and Reverb FX, Duck, and Anti-Feedback
• PRECISION FEEL channel faders with tension adjust, reversal switches, and contour knob
• MAG FOUR crossfader with front panel tension adjust, reversal switch, contour knob, on on-screen calibration and cut in settings
• XLR and RCA Main outputs and 1/4" Booth Outputs with 8-band software EQ
• Media inputs: (3) USB A, USB-C, SD, and internal hard drive slot (hard drive not included)
• Bluetooth/RCA AUX input with dedicated volume knob on front panel
• Bluetooth audio output with on-screen volume control
• Bluetooth connectivity for external keyboards
• Locking IEC power cable
• Unlocks Serato DJ Pro for use without an additional subscription
Converters: Cirrus Logic, 24-bit PCM, 44.1 kHz
Digital Signal Processing: 32-bit, Floating Point, Double Precision
Audio Outputs
Main Output (XLR, RCA stereo pair)
DAC: 24-bit
Dynamic Range: 117 dB
Output Type: Balanced XLR
Max Output Level (XLR): 8 Vrms
Max Output Level (RCA): 4 Vrms
Frequency Response: 20 Hz20 kHz: +0, -1 dB
THD+N: 0.002% @ 1 kHz, 4 Vrms
Channel Separation: 80 dB
Input Gain Trim Range: Off to +12 dB
Output Level Range: Off to 0 dB
Booth Output (1/4" [6.35 mm] TRS)
DAC: 24-bit
Dynamic Range: 117 dB
Output Type: Balanced TRS
Max Output Level: 8 Vrms
Frequency Response: 20 Hz 20 kHz: +0, -1 dB
THD+N: 0.002% @ 1 kHz, 4 Vrms
Channel Separation: 80 dB
Input Gain Trim Range: Off to +12 dB
Output Level Range: Off to 0 dB
Headphone Output (1/4" [6.35 mm] and 1/8" [3.5 mm] TRS)
DAC: 24-bit
Dynamic Range: 117 dB
Output Type: Stereo TRS (1/8" and 1/4" jacks)
Cue Features: Cue / Split Cue
Max Output Level (No Load): 4 Vrms
Max Power Output @ 50 Ω: 150 mW
Frequency Response: 20 Hz 20 kHz: +0, -1 dB
THD+N @ 1 kHz, 4 Vrms (No Load): 0.002%
THD+N @ 1 kHz, Full Power @ 50 Ω: 0.08%
Channel Separation: 80 dB
Level Control Range: Off to 0 dB
Inputs (Combo XLR/1/4 [6.35 mm] TRS)
ADC: 24-bit, 115 dB DR
Input Type: Balanced XLR/TRS combo
Max Input Level: 110 mV
Analog Gain: 25 dB
Max System Gain: 60 dB
Frequency Response @ 20 Hz: -2.5 dB
Frequency Response @ 20 kHz: -5 dB
THD+N @ 0.1 Vin, Gain = 25 dB: 0.015% (100 Hz20 kHz)
DR (A-weighted), Gain = 25 dB: 102 dB
DR (A-weighted), Gain = 60 dB: 72 dB
IRN (A-weighted), Gain = 60 dB: -132 dB
IRN (20 Hz20 kHz), Gain = 60 dB: -130 dB
Auxiliary Input (RCA stereo pair)
ADC: 24-bit, 115 dB DR (A-weighted)
Input Type: Unbalanced RCA
Max Input Level: 4 Vrms
Frequency Response: 20 Hz 20 kHz: +0, -1 dB
THD+N @ 3 Vrms, Unity Gain: 0.005% (20 Hz20 kHz)
Gain Range: Off to +12 dB
DR (A-weighted), Unity Gain: 108 dB
Crosstalk: -90 dB
Performance Pads
Pads: 16 total, on/off multi-color back-lit (8 per deck)
Faders
Channel Faders: 2 PRECISION FEEL tension-adjustable with contour and reverse
Crossfader: 1 MAG FOUR tension-adjustable with contour and reverse
Displays
Main Display: 7"/178 mm (diagonal) full-color LED-backlit display with touch interface
Pad Displays: (8) 128 x 32 monochrome OLEDs
CPU
Processor: Quad-core ARM®
RAM: 4 GB
Wi-Fi & Bluetooth
Wi-Fi: 2.4GHz/5GHz
802.11a/b/g/n/ac
Wi-Fi 5
Bluetooth: v5.4
Supported Media
File Systems: exFAT (recommended)
FAT32
Playable Formats
AAC/M4A
AIF/AIFF (44.1192 kHz, 1632-bit)
ALAC
FLAC
MP3 (32320 kbps)
MP4
Ogg Vorbis
WAV (44.1192 kHz, 1632-bit)
Streaming Services
Onboard Streaming Services (subscription required)
Amazon Music Unlimited
Apple Music
Beatport
Beatsource
SoundCloud Go+
TIDAL
Lighting
Onboard Smart Lighting: Philips Hue
Nanoleaf
Supported DMX: SoundSwitch DMX Micro
SoundSwitch Control One
Power (Internal with locking IEC)
Input Type: Locking IEC
Input Voltage: 100240 VAC
Frequency: 50/60 Hz
Power Consumption: 150 W
General
Dimensions (W x D x H): Inches: 29.00 x 15.87 x 5.70, Centimeters: 73.66 x 40.30 x 14.47
Weight: 29.4 lbs (13.33 kg)

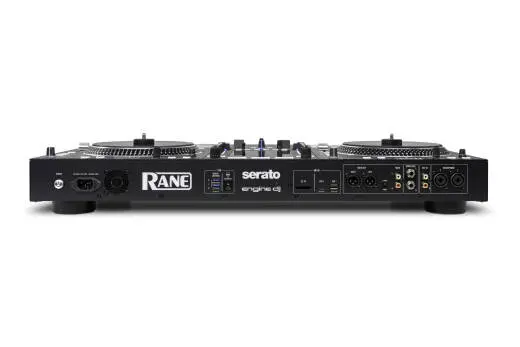

Connections
Inputs
Mic 1: XLR + 1/4" Combo Jack
Mic 2: XLR + 1/4" Combo Jack
Aux: Stereo Pair (RCA)
Outputs
Main: (2) XLR, Stereo Pair (RCA)
Booth: (2) 1/4" TRS Jacks
Headphones: 1/4" Stereo Jack
3.5-mm Stereo Mini-Jack
Media Inputs
USB 1: Type-A, USB 2.0 High Speed
USB 2: Type-C, USB 3.0 SuperSpeed
USB 3: Type-A, USB 3.0 SuperSpeed
USB 4: Type-A, USB 3.0 SuperSpeed
USB to Computer: Type-C, USB 3.0 SuperSpeed
SD Media: SD, SDHC, SDXC
Internal HD: SATA 3.0
Power
Input: Locking IEC
The first RANE product with Engine DJ on board, open format DJs can now experience the trusted performance of RANE hardware while seamlessly mixing between standalone media, music streaming services, and Serato DJ software. With a slew of FX options including Fader FX, Sweep FX, Touch FX, and Main FX and multiple ways to DJ with Stems, SYSTEM ONE was designed to unlock new levels of creativity while fueling DJs' passion for the artform.
Features
• All-in-one standalone DJ system• High-torque motorized 7.2" platters
• 7" HD touch vertical display with RGB waveforms
• Instant Acapella and Instrumental buttons, Stems pad mode, Stem Level EQ mode, and Stem FX
• OmniSource system architecture for seamless mixing between local media, streaming, cloud services, and computer-based software sources (Serato DJ and Algoriddim djay integration coming early 2026)
• (3) Playlist Banks for quick access to favorite playlists /crates
• Responsive RGB performance pads with OLED displays
• Internal Main FX with paddle activation, Touch FX, Fader FX, and Sweep FX
• Built-in Wi-Fi for access to music streaming platforms, such as Apple Music, Amazon Music Unlimited, TIDAL, Beatport, Beatsource, SoundCloud Go+, and Dropbox
• Standalone Embedded Sampler with dedicated pad mode and front panel volume control knob
• Beat-synchronized lighting control for smart home and DMX lighting powered by SoundSwitch (SoundSwitch hardware is required for DMX lighting control)
• (2) XLR combo jack microphone inputs w/ EQ, Echo and Reverb FX, Duck, and Anti-Feedback
• PRECISION FEEL channel faders with tension adjust, reversal switches, and contour knob
• MAG FOUR crossfader with front panel tension adjust, reversal switch, contour knob, on on-screen calibration and cut in settings
• XLR and RCA Main outputs and 1/4" Booth Outputs with 8-band software EQ
• Media inputs: (3) USB A, USB-C, SD, and internal hard drive slot (hard drive not included)
• Bluetooth/RCA AUX input with dedicated volume knob on front panel
• Bluetooth audio output with on-screen volume control
• Bluetooth connectivity for external keyboards
• Locking IEC power cable
• Unlocks Serato DJ Pro for use without an additional subscription
Specifications
Digital AudioConverters: Cirrus Logic, 24-bit PCM, 44.1 kHz
Digital Signal Processing: 32-bit, Floating Point, Double Precision
Audio Outputs
Main Output (XLR, RCA stereo pair)
DAC: 24-bit
Dynamic Range: 117 dB
Output Type: Balanced XLR
Max Output Level (XLR): 8 Vrms
Max Output Level (RCA): 4 Vrms
Frequency Response: 20 Hz20 kHz: +0, -1 dB
THD+N: 0.002% @ 1 kHz, 4 Vrms
Channel Separation: 80 dB
Input Gain Trim Range: Off to +12 dB
Output Level Range: Off to 0 dB
Booth Output (1/4" [6.35 mm] TRS)
DAC: 24-bit
Dynamic Range: 117 dB
Output Type: Balanced TRS
Max Output Level: 8 Vrms
Frequency Response: 20 Hz 20 kHz: +0, -1 dB
THD+N: 0.002% @ 1 kHz, 4 Vrms
Channel Separation: 80 dB
Input Gain Trim Range: Off to +12 dB
Output Level Range: Off to 0 dB
Headphone Output (1/4" [6.35 mm] and 1/8" [3.5 mm] TRS)
DAC: 24-bit
Dynamic Range: 117 dB
Output Type: Stereo TRS (1/8" and 1/4" jacks)
Cue Features: Cue / Split Cue
Max Output Level (No Load): 4 Vrms
Max Power Output @ 50 Ω: 150 mW
Frequency Response: 20 Hz 20 kHz: +0, -1 dB
THD+N @ 1 kHz, 4 Vrms (No Load): 0.002%
THD+N @ 1 kHz, Full Power @ 50 Ω: 0.08%
Channel Separation: 80 dB
Level Control Range: Off to 0 dB
Inputs (Combo XLR/1/4 [6.35 mm] TRS)
ADC: 24-bit, 115 dB DR
Input Type: Balanced XLR/TRS combo
Max Input Level: 110 mV
Analog Gain: 25 dB
Max System Gain: 60 dB
Frequency Response @ 20 Hz: -2.5 dB
Frequency Response @ 20 kHz: -5 dB
THD+N @ 0.1 Vin, Gain = 25 dB: 0.015% (100 Hz20 kHz)
DR (A-weighted), Gain = 25 dB: 102 dB
DR (A-weighted), Gain = 60 dB: 72 dB
IRN (A-weighted), Gain = 60 dB: -132 dB
IRN (20 Hz20 kHz), Gain = 60 dB: -130 dB
Auxiliary Input (RCA stereo pair)
ADC: 24-bit, 115 dB DR (A-weighted)
Input Type: Unbalanced RCA
Max Input Level: 4 Vrms
Frequency Response: 20 Hz 20 kHz: +0, -1 dB
THD+N @ 3 Vrms, Unity Gain: 0.005% (20 Hz20 kHz)
Gain Range: Off to +12 dB
DR (A-weighted), Unity Gain: 108 dB
Crosstalk: -90 dB
Performance Pads
Pads: 16 total, on/off multi-color back-lit (8 per deck)
Faders
Channel Faders: 2 PRECISION FEEL tension-adjustable with contour and reverse
Crossfader: 1 MAG FOUR tension-adjustable with contour and reverse
Displays
Main Display: 7"/178 mm (diagonal) full-color LED-backlit display with touch interface
Pad Displays: (8) 128 x 32 monochrome OLEDs
CPU
Processor: Quad-core ARM®
RAM: 4 GB
Wi-Fi & Bluetooth
Wi-Fi: 2.4GHz/5GHz
802.11a/b/g/n/ac
Wi-Fi 5
Bluetooth: v5.4
Supported Media
File Systems: exFAT (recommended)
FAT32
Playable Formats
AAC/M4A
AIF/AIFF (44.1192 kHz, 1632-bit)
ALAC
FLAC
MP3 (32320 kbps)
MP4
Ogg Vorbis
WAV (44.1192 kHz, 1632-bit)
Streaming Services
Onboard Streaming Services (subscription required)
Amazon Music Unlimited
Apple Music
Beatport
Beatsource
SoundCloud Go+
TIDAL
Lighting
Onboard Smart Lighting: Philips Hue
Nanoleaf
Supported DMX: SoundSwitch DMX Micro
SoundSwitch Control One
Power (Internal with locking IEC)
Input Type: Locking IEC
Input Voltage: 100240 VAC
Frequency: 50/60 Hz
Power Consumption: 150 W
General
Dimensions (W x D x H): Inches: 29.00 x 15.87 x 5.70, Centimeters: 73.66 x 40.30 x 14.47
Weight: 29.4 lbs (13.33 kg)
Connections
Inputs
Mic 1: XLR + 1/4" Combo Jack
Mic 2: XLR + 1/4" Combo Jack
Aux: Stereo Pair (RCA)
Outputs
Main: (2) XLR, Stereo Pair (RCA)
Booth: (2) 1/4" TRS Jacks
Headphones: 1/4" Stereo Jack
3.5-mm Stereo Mini-Jack
Media Inputs
USB 1: Type-A, USB 2.0 High Speed
USB 2: Type-C, USB 3.0 SuperSpeed
USB 3: Type-A, USB 3.0 SuperSpeed
USB 4: Type-A, USB 3.0 SuperSpeed
USB to Computer: Type-C, USB 3.0 SuperSpeed
SD Media: SD, SDHC, SDXC
Internal HD: SATA 3.0
Power
Input: Locking IEC
Media
Q & A
There are currently no questions for this product.
Reviews
There are currently no reviews for this product. Be the first to write one!
Protect your investment with the Long & McQuade Performance Warranty
A warranty can be a very important factor when making a buying decision. Because repairs can be very expensive in terms of parts and labour costs, manufacturers usually only provide one year limited warranties that generally only cover items that malfunction due to a manufacturer’s defect. With an important purchase such as a musical
instrument or piece of studio gear, however, many people want to have the peace of mind in knowing that their investment will be protected should the product no longer be performing at 100%.
Because of this, Long & McQuade provides our customers with a FREE one-year Performance Warranty on most of our products. The Long & McQuade Performance Warranty supplements the manufacturer’s warranty to ensure that our customers receive complete “no hassle” warranty coverage within their first year.
How does the Long & McQuade Performance Warranty differ from most manufacturers' warranties?
- Performance Guarantee: Normal wear and tear is covered, so your product will be performing as well as the day you purchased it for the entire duration of the coverage. Band and Orchestral Performance Warranty does not include replacing pads or cleaning for woodwind instruments, unless deemed necessary by our repair staff. Ultrasonic cleaning for brass instruments will be provided if deemed necessary by our repair staff, but is not routinely offered under the Performance Warranty.
- Product Replacement: If your product cannot be fixed or costs too much to fix, we will replace it with the equivalent model for no additional charge. If this is not possible, a full refund will be provided.
- No Lemon Policy: Your product will be replaced should the same problem occur multiple times.
- Convenient: Easy drop off and pick up of the product at any Long & McQuade location.
- Guitar Setup: Guitars purchased at Long & McQuade come with 1 free setup, to be redeemed within 1 year for new guitars and 90 days for used guitars.
- Loaners Available: A loaner product may be given while the product is being repaired.
- Power Surge Protection: Your product is covered even if damaged from a power surge.
- Accessory Coverage: Any peripheral devices or accessories that come with your product (i.e. foot pedal, case) are also covered.
- Commercial Use Coverage: Music and recording professionals who purchase gear for “heavy-use” commercial purposes will still be covered.
Long & McQuade reserves the right to restrict the purchase of additional years of Performance Warranty. Used products come with a 3-month Long & McQuade Performance Warranty. Some products (i.e. computers, software, cymbals and other items) are covered only by the manufacturer‘s warranty. Consumables (i.e. strings, reeds, drum sticks, batteries, tubes, cross faders) are excluded as they are designed to be replaced. Cosmetic Damage, Accidental Damage, or problems caused by Humidity or Temperature Issues are not covered. Speakers damaged by overpowering are generally not covered. Our coverage does not provide compensation for loss of use. As of June 2018 the Performance Warranty is no longer transferable. The warranty is only valid in Canada.
Purchasing additional years of coverage
Some manufacturers provide warranties for longer than 1 year; however, these are usually limited warranties that do not provide the same coverage as the Long & McQuade Performance Warranty. Customers interested in more complete and convenient (but not necessarily longer) coverage are still able to purchase additional years of the Performance Warranty.
If you are interested in receiving this coverage for longer than one year, you have the option of purchasing additional years of the Performance Warranty. The pricing is as follows:
- NEW products: Starting at 4% of the current new selling price to double the warranty from 1 year to 2 years. Starting at 4% for each additional year.
- USED products: Starting at 4% of the current new selling price to increase the warranty from 3 months to 1 year. Starting at 4% for each additional year.
- GUITARS: 4% of the current new selling price to double the warranty from 1 year to 2 years. 4% for each additional year. $45 maximum. An additional free setup is not included with additional purchased years of Performance Warranty.
- BAND and ORCHESTRAL instruments: 4% of the current new selling price to double the warranty from 1 year to 2 years. 4% for each additional year.
Reserve in Store
| Product | SKU | Qty |
|---|---|---|
| System One All-in-One Standalone Motorized DJ System | 834460 |
