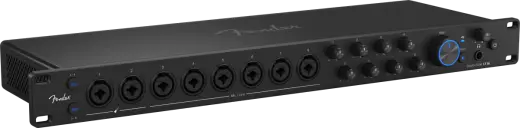

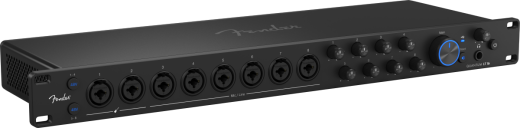

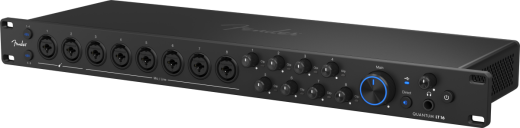

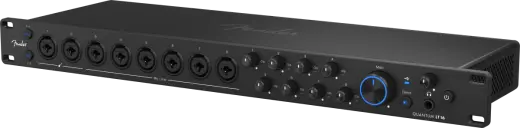

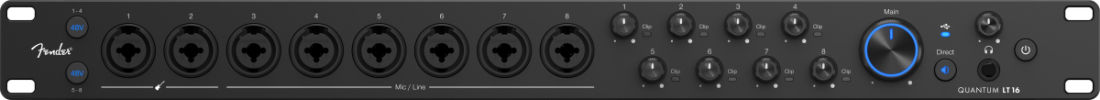

Fender Quantum LT 16 Audio Interface
Additional Photos:
Description
In addition to the six front panel line inputs, the LT 16 features eight rear panel TRS analog line inputs for effortless integration with outboard gear such as external mic preamps, synthesizers, mixers, or other line-level devices - expanding your studios sonic palette without complicating your setup.
Fender Quantum LT's blazing-fast, custom low-latency drivers provide an ultra-responsive recording experience, while balanced TRS outputs and a powerful headphone amp give you versatile monitoring options. LT 16 also unlocks exclusive features: Standalone "Mic Pre Mode" transforms it into an 8-channel mic preamp, DC-coupled outputs bring CV control to your modular synth rig, and 5-pin MIDI I/O ensures seamless hardware integration. A perpetual license for Fender Studio Pro is included, offering a professional DAW with exclusive Mustang and Rumble plug-ins.
Features
• 16 x 8 USB-C Interface - Ultra-low-latency custom drivers• Eight MAX-HD Mic Preamps with 75 dB Gain - Transparent, low-noise recording for large sessions
• A Total of 14 Line Inputs - for easy connection of mic pres, synths, mixers, and other line-level devices
• 6 front panel XLR/TRS (combo jacks 3-8)
• 8 rear panel TRS inputs with switchable 4 dBu / -10 dBV operation
• Dual Fender-Designed Instrument Inputs - Optimized for guitars, basses, and other instruments
• Balanced TRS Outputs & Headphone Monitoring - Professional-quality, flexible monitoring
• Loopback Audio - Streaming, podcasting, and mix routing
• Standalone Mixer Mode & Mic Pre Mode - Analog mixing or 8-channel mic preamp operation
• DC-Coupled Outputs - Integrate modular synths and analog gear
• 5-Pin MIDI I/O - Hardware integration without external MIDI interface
• Fender Studio Pro Perpetual Included - Professional DAW with Mustang and Rumble plug-ins
• Built-in MyFender Access - Quick setup, registration, and support
Specifications
ElectronicsInputs: Sixteen - (Two XLR Combo Mic/Inst, Six XLR Combo Mic/Line, Eight TRS Line)
Headphone Jack: 1/4" Stereo
Line Out: Eight - 1/4" TRS Balanced
Connectivity: USB-C®
Voltage: 120V
Phantom Power: +48 VDC
Performance
Digital Audio Bit Depth: 24 Bit
Digital Audio Dynamic Range: 115 dB
Inputs
Instrument Input Connection Type: 1/4" TS
Instrument Inputs Dynamic Range: 114 dB
Instrument Inputs Frequency Response: 20 Hz to 20 kHz
Instrument Inputs Maximum Level: +22 dBu
Line Input Connection Type: 1/4" TRS Female
Line Inputs Dynamic Range: 115 dB (+4 dBu) / 113 dB (-10 dBV)
Line Inputs Frequency Response: 20 Hz to 20 kHz
Line Inputs Maximum Level: +18 dBu
Line Inputs Total Harmonic Distortion: 0.001 % (+4 dBu) / 0.0009 % (-10 dBV)
Microphone Input Connection Type: XLR Female (Combo), Balanced
Microphone Preamp Dynamic Range: 115 dB
Microphone Preamp Equivalent Input Noise: -128.6 dBu
Microphone Preamp Frequency Response: 20 Hz to 20 kHz
Microphone Preamp Gain Control Range: 75 dB
Microphone Preamp Maximum Input Level: +18 dBu
Microphone Preamp Total Harmonic Distortion: 0.001 %
Outputs
Headphone Outputs Dynamic Range: 114 dB
Headphone Outputs Frequency Response: 20 Hz to 20 kHz
Headphone Outputs Maximum Output: 142 mW/Channel (60Ω Load)
Headphone Outputs Total Harmonic Distortion: 0.01 %
Line Outputs Connection Type: 1/4" TRS Female
Line Outputs Maximum Output Level: +18 dBu
Main And Line Outputs Dynamic Range: 115 dB
Main And Line Outputs Frequency Response: 20 Hz to 20 kHz
Main And Line Outputs Maximum Level: +18 dBu
Main And Line Outputs Total Harmonic Distortion: 0.001 %
Main Outputs Connection Type: 1/4" TRS Female
Hardware
MIDI IO: 5-Pin Female DIN
