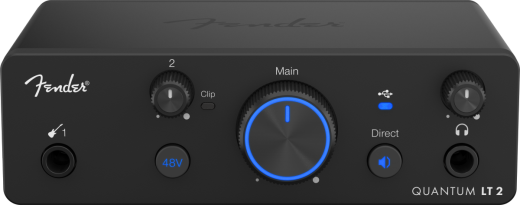

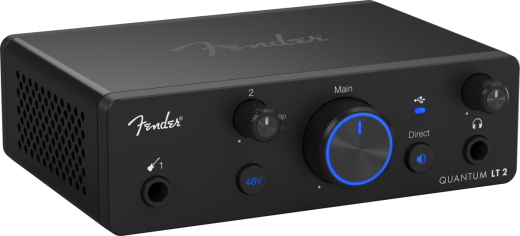

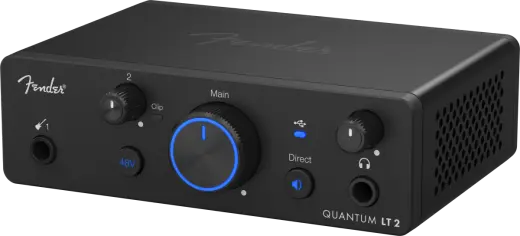

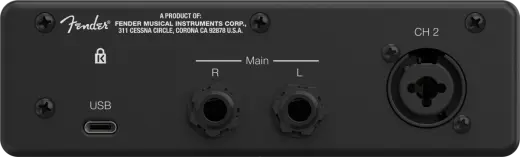

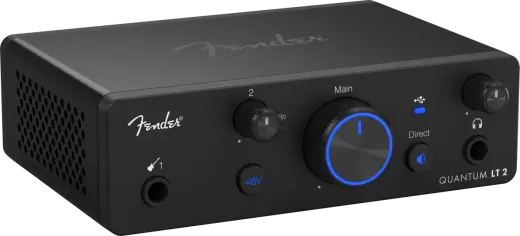

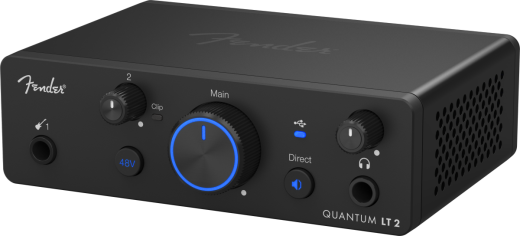

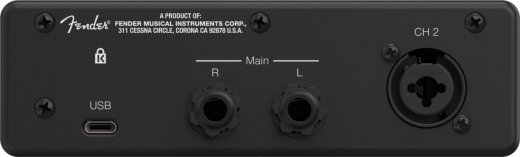

Fender Quantum LT 2 Audio Interface
Additional Photos:
Description
With blazing-fast, custom low-latency drivers and pristine converters, LT 2 provides professional-level sound quality throughout your signal chain. Flexible monitoring options include balanced TRS outputs and a powerful headphone amp, while loopback simplifies streaming and content creation. Standalone "Mixer Mode" lets you use LT 2 as a simple analog mixer without opening your DAW. With built-in My Fender access and integration with Fender Studio Pro and Universal Control, LT 2 gets you recording faster than ever.
CUSTOM LOW-LATENCY DRIVERS
The Fender Quantum LT 2 uses proprietary drivers that deliver class-leading converter latency performance, providing a responsive, natural recording experience that feels immediate to the performer.
MAX-HD MIC PREAMP
The MAX-HD mic preamp delivers a massive +75 dB of gain to ensure clean, transparent capture with any microphone, from delicate condensers to gain-hungry ribbon mics.
FENDER-DESIGNED INSTRUMENT INPUT
Purpose-built input tuned by Fender delivers plug-and-play clarity for guitars, basses, and other instruments - no fiddling with impedance or gain staging required.
REMOTE SOFTWARE INTEGRATION
Control your direct-monitoring mixer from Fender Studio Pro or Fender Universal Control on your computer or supported mobile device - even when you're away from the interface.
Feature
• 2x2 USB audio interface with custom low-latency drivers for responsive recording• MAX-HD mic preamp with 75 dB gain range - perfect for any microphone
• Fender-designed instrument input for guitars, basses, and more
• Balanced TRS outputs and powerful headphone output for monitoring flexibility
• Integrated line input for connecting external gear
• Software integration with Fender Studio Pro and Universal Control for remote mix control
• Loopback audio for streaming and monitor mixes
• Standalone "Mixer Mode" for use as an analog mixer without a computer
• Built-in MyFender access for registration, setup, and support
Specifications
ElectronicsInputs: Two - (One 1/4" and One XLR)
Headphone Jack: 1/4" Stereo
Line Out: Two - 1/4" Balanced (Left and Right)
Connectivity: USB-C® Compatible USB 2.0 Connection (Bus-Powered)
Voltage: USB Bus Powered
Phantom Power: +48 VDC
Performance
Digital Audio Bit Depth: 24 bit
Digital Audio Dynamic Range: 115 dB
Inputs
Instrument Input Connection Type: 1/4" TS Female, Unbalanced, Hi-Z
Instrument Inputs Frequency Response: 20 Hz to 20 kHz
Instrument Inputs Maximum Level: +12.9 dBu
Line Input Connection Type: 1/4" TRS, Balanced
Line Inputs Dynamic Range: 115 dB
Line Inputs Frequency Response: 20 Hz to 20 kHz
Line Inputs Gain Range: -20 dB to +20 dB
Line Inputs Maximum Level: +15 dBu
Line Inputs Total Harmonic Distortion: 0.001%
Microphone Input Connection Type: XLR Female (Combo), Balanced
Microphone Preamp Dynamic Range: 115 dB
Microphone Preamp Equivalent Input Noise: -128.9 dBu
Microphone Preamp Frequency Response: 20 Hz to 20 kHz
Microphone Preamp Gain Control Range: 75 dB
Microphone Preamp Maximum Input Level: +14 dBu
Microphone Preamp Total Harmonic Distortion: 0.001%
Outputs
Headphone Outputs Dynamic Range: 113.6 dB
Headphone Outputs Frequency Response: 20 Hz to 20 kHz
Headphone Outputs Maximum Output: 47mW @ 0.006%
Headphone Outputs Total Harmonic Distortion: 0.001 %
Main And Line Outputs Dynamic Range: 115 dB
Main And Line Outputs Frequency Response: 20 Hz to 20 kHz
Main And Line Outputs Maximum Level: +15 dBu (Balanced)
Main And Line Outputs Total Harmonic Distortion: 0.001 %
Main Outputs Connection Type: 1/4" TRS Female
