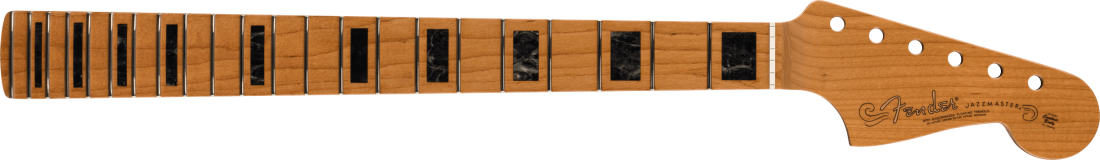

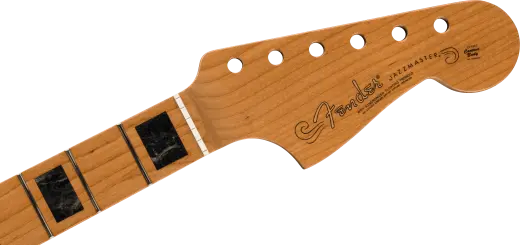

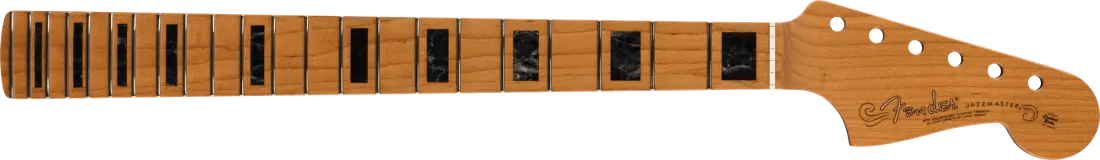

Fender Roasted Jazzmaster Neck with Block Inlays, 9.5'' Radius - Maple with Modern C Shape

There's no denying the allure of a roasted maple neck. Resistant to humidity shifts and featuring a gorgeous, dark look, they have more sustain and add a unique note to the instrument's voice. This genuine Fender Jazzmaster neck is crafted at Fender's Ensenada, Mexico manufacturing facility. Featuring striking pearloid block inlays, a Modern "C" neck profile and 9.5"-radius maple fingerboard with 22 medium jumbo frets for modern playing feel. The synthetic bone nut is pre-slotted with "pilot" grooves for accurate spacing when filing the final string slots.

Features

• Roasted maple neck
• Modern "C"-shaped profile; 9.5"-radius maple or pau ferro fingerboard
• 22 medium jumbo frets; pre-slotted synthetic bone nut
• Gloss urethane finish on maple fingerboard and headstock face; satin finish on back of neck
• Vintage-style truss rod adjustment

Specifications

Neck
Neck Material: Roasted Maple
Neck Finish: Satin Urethane Finish on Back, Gloss Urethane Finish on Front
Neck Shape: Modern "C"
Neck Thickness: 1st Fret - .820" (20.82 mm), 12th Fret - .870" (22.09 mm)
Neck Mounting: 4-Bolt
Fingerboard Radius: 9.5" (241 mm)
Fingerboard Material: Roasted Maple
Position Inlays: Black Pearloid Blocks
Side Dots: Black
Number of Frets: 22
Truss Rod: Vintage-Style Heel Adjust
Truss Rod Nut: Vintage-Style Slotted
String Nut: Synthetic Bone
Nut Width: 1.685" (42.8 mm)
Nut Material: Synthetic Bone
Fret Size: Medium Jumbo
Scale Length: 25.5" (648 mm)

Hardware
Tuner Mounting Config: Vintage-Style 2-Screw

This replacement neck is for a Fender or Squier® by Fender guitar.
