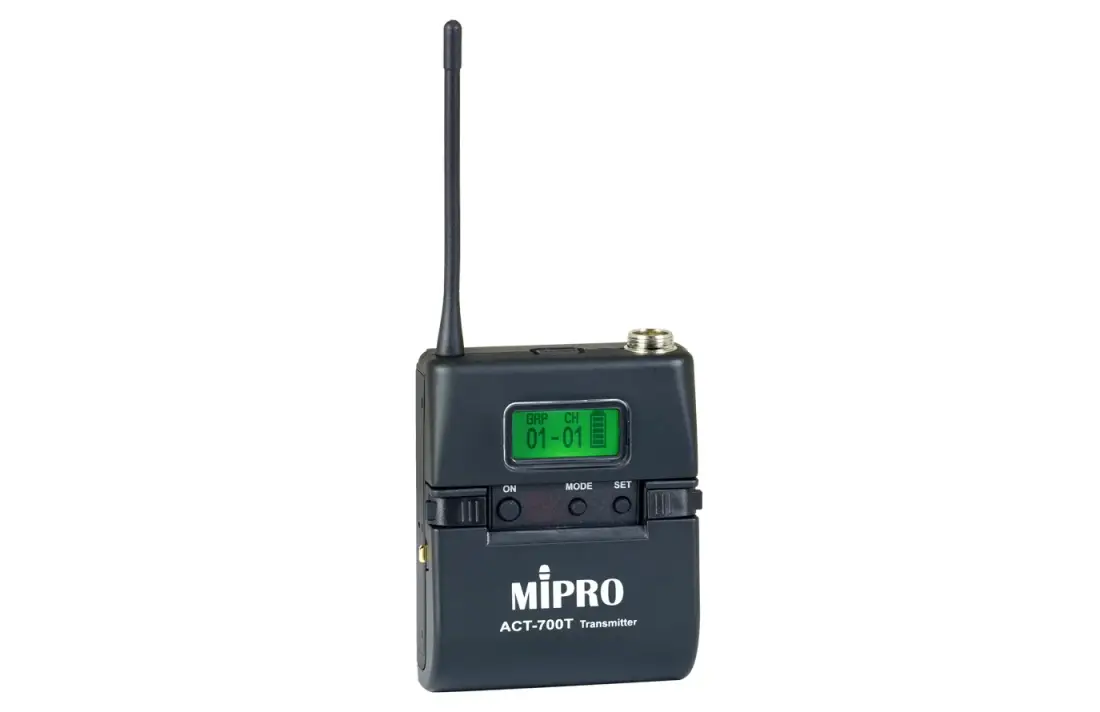

MIPRO ACT-700T UHF Analog Wideband Bodypack Transmitter

The ACT-700T is a UHF analog wideband bodypack transmitter featuring a compact metal housing, a backlit LCD interface, and flexible mute control. It provides a 4-pin mini-XLR input, five-stage gain adjustment, and AA or 18500 Li-ion battery operation with USB-C charging for lavalier, headworn, and instrument applications.

Features

• MIPRO's wideband analog bodypack transmitter is designed for use with the ACT-700 Series receivers, offering reliable performance for professional applications
• Compact and lightweight housing with a streamlined design ensures secure and comfortable belt-worn use
• A backlit LCD clearly displays group, channel, battery level, and operational menus
• Supports essential settings including mute mode, input sensitivity adjustment, RF output power, and lock
• Offers both onboard mute switch and external mute control for flexible operation
• Features a MIPRO 4-Pin Mini XLR input compatible with MIPRO's full range of lavalier and headworn microphones, as well as instrument microphones
• Five-stage input gain adjustment allows optimal input level control for clear, distortion-free audio
• Incorporates MIPRO's exclusive ACT™ function for fast and accurate frequency synchronization
• Patented dual-purpose battery compartment allows quick switching between AA and rechargeable Li-ion batteries
• Built-in USB Type-C charging port and charging contacts with foolproof protection circuitry support cable and drop-in charging
• Detachable metal belt clip allows upright or inverted mounting for secure and convenient wearing

Specifications

- Frequency Range: UHF 480934 MHz (country dependent)
- Bandwidth: 72 MHz
- Display: Backlit LCD displays channel, battery status and menus
- Control Interface: ACT sync sensor, setting buttons and mute button
- Mic. Capsule Modules: MIPRO lavalier and headworn mics
- Input Connector: MIPRO 4-Pin Mini XLR
- Audio Control: AF Gain
- Max. Audio Input: 0 dBV
- Gain Setting: -12 dB to +12 dB / 6 dB per segment
- RF Power Output: 10 mW / 50 mW switchable (country dependent)
- Power Supply: One 18500 Li-ion battery or two AA alkaline
- Battery Charging: MP-800 / MP-820 charging dock or USB Type-C
- Dimensions: 63 x 80 x 25 mm
- Weight: Approx. 97 g
