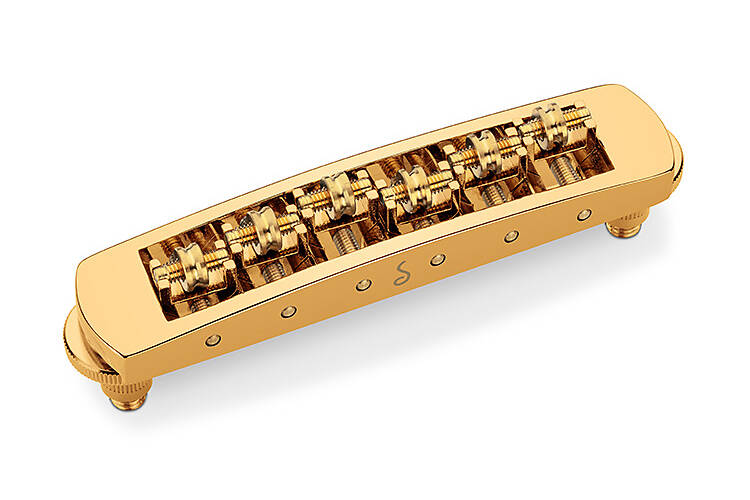

Schaller STM Tune-O-Matic Roller Bridge - Gold

STM: high quality Tune-O-Matic roller bridge

Features

• Also for all Les Paul®-type guitars with Bigsby®
• Compatible with post spacings from 74.0 to 74.5 mm
• Adjustable for height, intonation and string spacing
• Low-friction roller saddles for excellent tuning stability perfect for Bigsby™ vibratos
• Comes with 2 different type saddle rollers to suit tone and string bending requirements: wide flat rollers for low strings (E, A and D) and tight U-shaped for high strings (G, B and E)
• Uncoated string saddles milled from solid Pure Sound brass with excellent sound transmission
• Slant angle to be determined by guitarmaker based on scale length and string gauge

Specifications

- Distance height adjustment screws: 74 - 74.5 mm
- String spacing (E-e): 48.5 - 57.5 mm
- String spacing individual: 9.7 - 11.5 mm
- String radius: 12" (rollers set in for narrow/close string spacing) 14" (rollers set out for wide string spacing); still playable if required for fretboards max. 10 - 16 inches, depending on the setting of the rollers max. inside or outside; minimal G/d string height above body 12.5 mm
- Maximum string gauge: 0.052
- Weight: 58 gram, 90 gram with accessories
- Special feature: also suitable for lefthanded models, but note the built-in angle and position of the intonation screws
