iConnectivity PlayAUDIO2U Audio and MIDI Interface for Live Performane
Additional Photos:
Product Videos :
Description
A first-of-its-kind all-in-one solution, PlayAUDIO2U delivers a massive set of tools in a robust tour-ready enclosure. Audio inputs, outputs, MIDI I/O, MIDI control, and RTP networking all integrated through iConnectivitys legendary redundancy, let you input audio, playback tracks and/or virtual instruments, and connect MIDI throughout the venue.
Audio Inputs Built for Live Performance
The PlayAUDIO2U delivers audio inputs tailored for the stage, offering silence when idle and a wide dynamic range to capture every detail with clarity. Its four XLR/ 1/4" TRS combo inputs, paired with pristine mic preamps and 48V phantom power, are built to capture vocals and instruments cleanly without coloration or compromise. Swiftly send audio to redundant performance computers for seamless processing of voices, instruments, and more, all within your tour-ready PlayAUDIO2U setup.

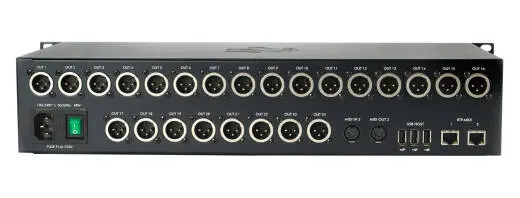

PlayAUDIO2U has a whopping 24 XLR outputs!
PlayAUDIO2U is ready for your performance. Plug it directly into your snake, loom, or stage box and go. Also, the XLR jacks are reinforced by the chassis, making them stand up better to withstand the rigors of the road. It's the perfect combination: top studio quality clarity, packaged for touring.

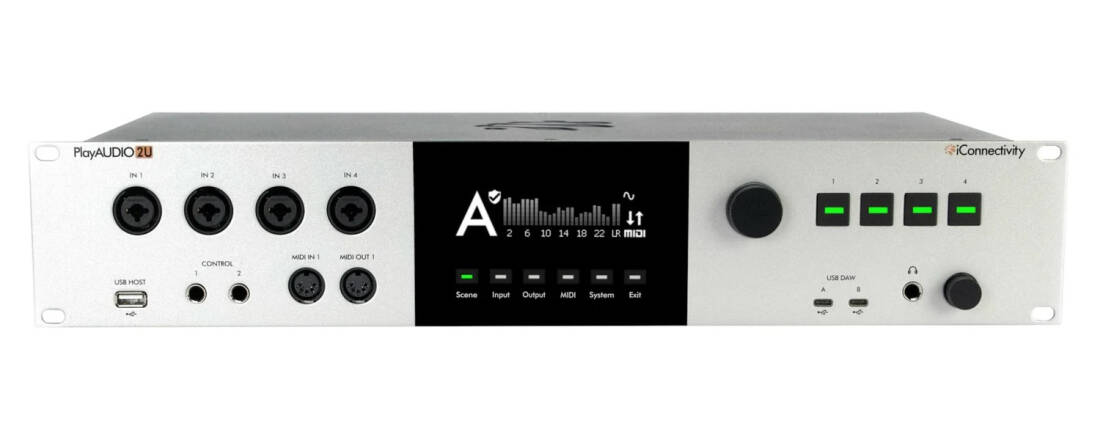

The PlayAUDIO2U Display - Your Live Performance Command Center
Like a trusted assistant, the PlayAUDIO2U's advanced display delivers real-time insights into your setup. Monitor MIDI activity, audio levels, and system status at a glance, with instant warnings for computer failures or other issues, keeping you in complete control of your performance. With the PlayAUDIO2U's intuitive display, setting up your rig and troubleshooting problems is faster and easier than ever.
PlayAUDIO2U is a MIDI miracle worker
This beast of a MIDI interface and controller provides a staggering multitude of MIDI connectivity to connect performers and operators, allowing you to manage MIDI everywhere throughout your stage and venue.
The PlayAUDIO2U acts as your central MIDI hub and control center, connecting devices via its integrated 5-pin MIDI DIN, USB host ports, computers, and dual RTP Ethernet ports for venue-wide networking. Its programmable control ports and 4 assignable front-panel buttons let you even directly assign MIDI commands directly from the interface to control the show! This comprehensive interface simplifies even the most intricate MIDI workflows and enriches them effortlessly with reliability.
With PlayAUDIO2U, you tailor what MIDI goes where and when. iConnectivity's famous flexibility is built-in.
Key features
• 2x USB C type ports for connecting computing devices
• Automatic and manual computer switching modes, for lightning-fast switching between connected computers
• 4x user assignable buttons can be mapped to MIDI functions, control numerous functions on the interface and/or send control messages to compatible devices
• 2x 2-button "Control" footswitch jacks with can be mapped to MIDI functions, control over numerous functions on the interface and/or sending control messages to compatible devices
• Audio Protection helps stop unwanted noise from corrupt audio sources/files from making it into the audience
• Auracle software enables you to tailor the PlayAUDIO2U's settings to your exact needs
• High-resolution audio - Studio sound quality for the live arena - up to 24-bit/96kHz AD/DA conversion
• "MIDI learn" from external MIDI devices to control key functions on the interface
• Large OLED screen for instantaneous status information and precise control
• 2U ready-to-tour rack-mountable chassis
• 24 Balanced panel reinforced XLR outputs
• 4 XLR / 1/4" TRS combo analog inputs
• 4 pristine ultra-low noise microphone preamps with 48V phantom power
• Integrated +48v phantom power resistance on outputs protects your interface from accidental damage when plugging directly into consoles or stage boxes (please note we cannot guarantee 100% protection indefinitely. It is best practice not to send +48v phantom power into any audio interface's outputs)
• 1x 1/4" TRS stereo headphone output with dedicated control for convenient headphone monitoring
• 4x USB MIDI host ports, offering USB MIDI connectivity for Class Compliant controllers and/or modules
• DIN-MIDI ports built-in (2 in 2 out)
• Dual Ethernet MIDI jacks with a total 22 ports of connectivity for rugged long-distance MIDI connections
• Comprehensive audio mixing and routing between connected USB computing devices and analog outputs
• Easy-to-use buttons and rotary encoders provide software-less control over PlayAUDIO2U's key features from the front panel
• 100-240v switching power built-in with Industry-Standard IEC Power Connection
What's in the box
- (1) PlayAUDIO2U Audio + MIDI interface
- (2) USB-C to USB-C cables
- IEC power cables (1x each type B, G, F)
Bundled software & sounds
- Big Fish Audio is a developer and distributor of premium virtual instruments, samples, and loop content. iConnectivity is proud to include a special sampler of Big Fish Audio samples and loops that's perfect to jumpstart or augment your production when you register your iConnectivity audio interface.
- Ableton Live Lite is a fantastic music creation software and also live performance tool. Ableton Live Lite is available upon registration of your PlayAUDIO2U.
Specifications
Physical
Dimensions (W x H x D): 482 x 87 x 200 mm / 18.98" x 3.43" x 7.87"
Weight: 3.8 kg / 8lbs 6oz
