ATC Loudspeakers SCS140iW Pro Dual 12''/300mm In-Wall Active Subwoofer (Single)
Additional Photos:
Description
Features

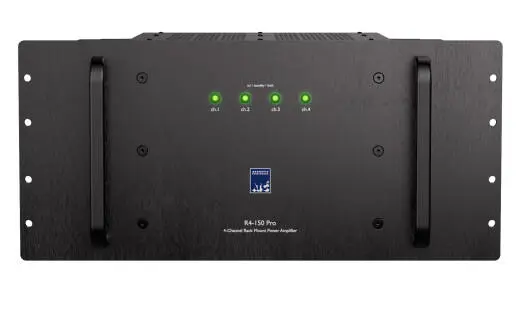

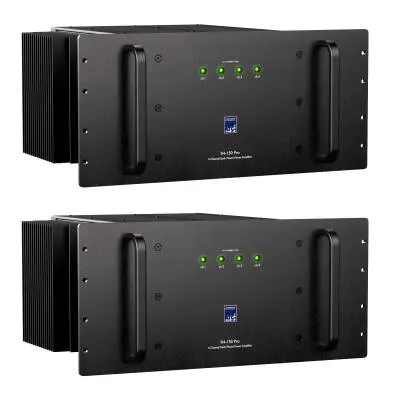

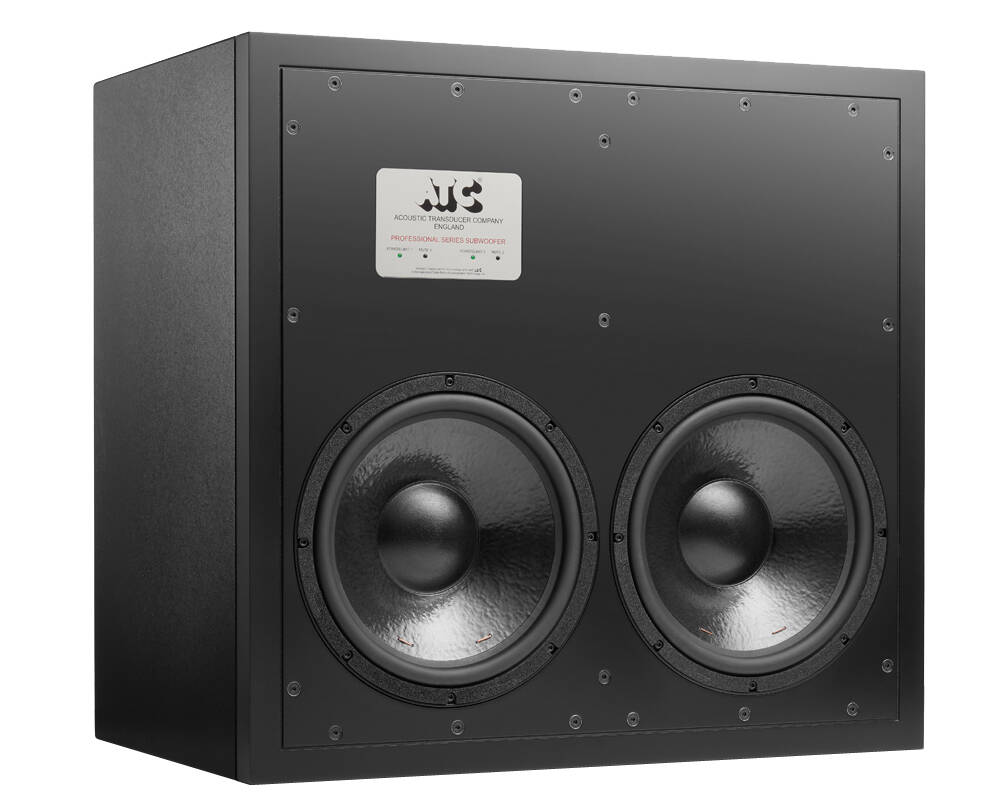

• High performance sealed box design using 2 x 12"/314mm SS75-314SC ATC proprietary subwoofer drivers• Dual R1-300 7U/19" rack mount amplifiers
• Ideal partner to the SCM200AIW Pro main monitors

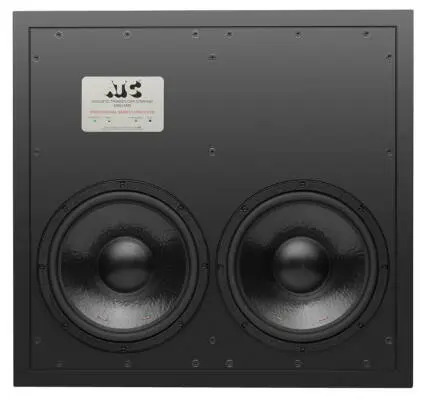

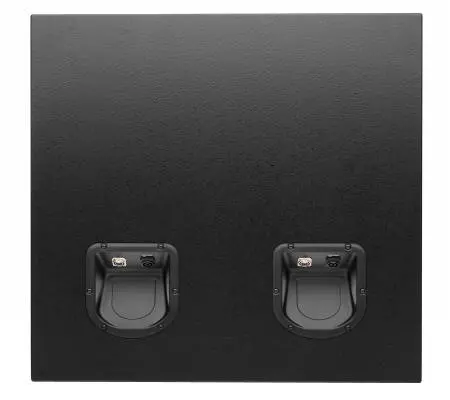

• In-wall (flush mount) cabinet design with recessed input panels
• Suitable for use in stereo, surround and immersive audio applications
• Amp-to-Sub connection via NL4 speaker & 5-pin XLR LED cable (cable sold separately)
• Stereo balanced inputs & stereo 'Link' balanced outputs
• User adjustable gain, low pass frequency, polarity and phase settings
• Same I/O and user control layout as the SCS140iW Pro
• Remote muting via latching footswitch, footswitch sold separately
• Hand-built in England
Acoustic Specifications
Drive Unit - Bass: 2 x ATC SS75-314SC 8ΩLow Frequency Cut-off: 22Hz
Low Pass Filters: 50Hz, 65Hz, 80Hz, 320Hz (-6dB, 4th order Linkwitz Riley)
MaxSPL: 116dB continuous, 121dB peak (IEC Weighted Pink Noise, measured at 1m, half space, low pass filter set @ 80Hz)
Sensitivity: 85dBC, ref. -17dBu (single channel of both amplifiers driven, Gain +6, Level 0dB, pink noise, low pass filter set at 80Hz)
Electronic Specifications

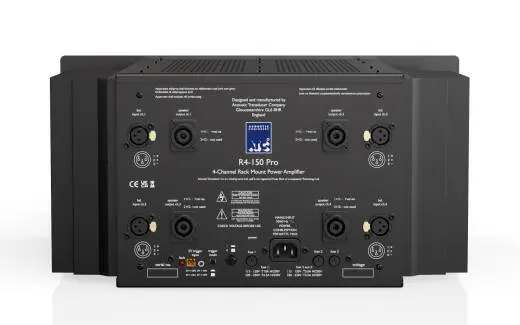

Note - specifications are for a single amplifier and two amplifiers are supplied per cabinetBalanced Input: 2 x Female XLR, pin 2 hot
Input Impedance: Approx. 20kΩ (differential)
Input CMRR: 90dB at 200Hz
Input Sensitivity: 3.2dBu/1.12Vrms for full power (single channel driven, Gain 0dB, Level 0dB)
Gain Control: 0, +6dB, +10dB
Level Control: 0dB -11dB in 1dB steps. Total range 21dB with use of Gain switch
Phase Control: 0-180° ref. Input
Polarity Control: In-phase/Out-of-phase ref. Input
Low Pass Filters: 4th Order Linkwitz Riley
Output Impedance: Approx. 100Ω (differential)

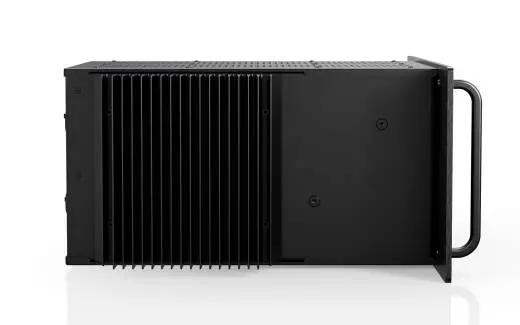

Amplifier type: Grounded Source MOSFET based Class A-B, convection cooled
Output Power: 300W in to 8Ω
THD+N: < 0.003%/-90dB, at 100Hz, 300W into 8Ω over 90kHz bandwidth.
Frequency Response: < 2Hz (-3dB) - 320Hz (-6dB, set by panel-controlled LP filter)
Limiter: ATC Active FET Momentary Gain Reduction, active limiter indicated on front panel
Electronic Amp Protection: Amplifier D.C Offset and over-temperature (both indicated on rear panel)
Power Consumption: Idle 16W/60VA, 1/8th Power 170W/230VA, Full Power 500W / 600VA
Mains Input: 220-230V, 115V - Factory set. Please observe panel markings and labels
Heat Output: Idle 47.8 BTU/hr, 1/8th Power 458.9 BTU/hr, Full Power 682.4 BTU/hr
Additional: Mute via 1/4"/ 6.35mm Jack socket, controlled via latching footswitch
Physical Specifications
Net Weight: 69.7 kg/153.7 lbsProduct Dimensions: (H x W x D): 784 x 925 x 460mm / 30-7/8 x 36-7/16 x 18-1/8 inches
