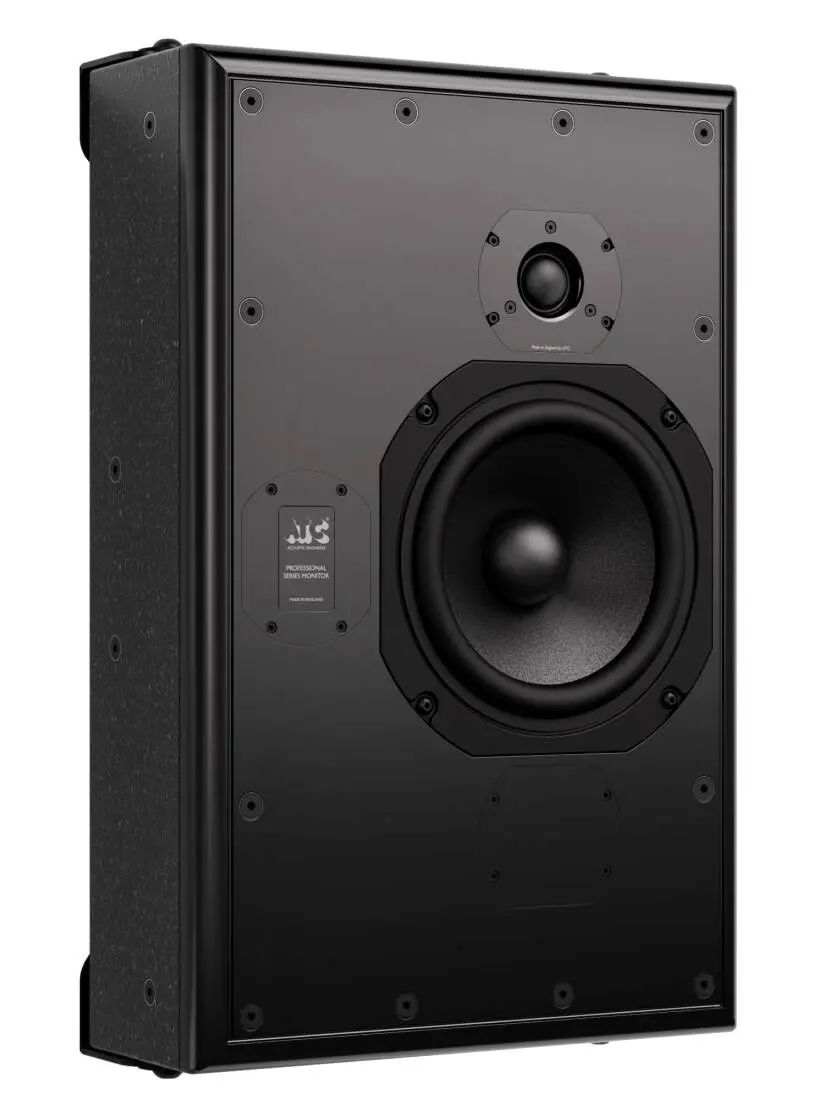

ATC Loudspeakers SSM25i Pro Wall/Ceiling Mountable Passive 2-way Studio Monitor (Single)
Additional Photos:
Related Products
Description
SSM25i Pro High Performance Studio Surface Monitors
The SSM25i Pro is a mid-sized, high-performance passive 3-way loudspeaker that delivers exceptional audio quality through a combination of advanced engineering and premium components. It is designed for larger control rooms and/or systems requiring increased dynamic range & bandwidth. The speaker can be wall or ceiling mounted in vertical or horizontal orientations. In addition, the mounting hardware allows the cabinet to pivot away from the wall/ceiling surface, directing more of the output towards the listening position resulting in a superior balance and precise imaging.
Features
• Wall or ceiling mount.• Shallow Cabinet - just 198mm / 7 13/16" deep (mounted flat).
• Articulating mounting hardware allows speaker toe/angle to be optimised for the listening position.
• ATC SB50-164SC bass driver.
• Sealed cabinet design delivers consistent low frequency performance when surface mounted.
• ATC SM75-150 mid-driver.
• ATC SH25-76 Dual suspension tweeter.
• Steel reinforced cabinet with safety tether for reliable installation*.
*Installation must be completed by a qualified professional.
Specifications
AcousticDrive Units:
- BBass: 1 x SB50-164SC 8Ω
- Mid: SM75-150 16Ω
- HF: 1 x SH25-76S 6Ω
Low Frequency Cut-off: (-6dB, half-space): 40Hz
High Frequency Cut-off:
Crossover Frequency: 380Hz & 3.5kHz
Recommended Power Amplifier: 75W to 300W
Input Connectors: Binding Posts/4mm Plugs, single pair.
MaxSPL: 109dB continuous, 115dB peak, (per pair, IEC weighted Pink Noise, 1m half-space)
Sensitivity: 85dB/W @1m
Nominal Impedance: 8Ω
Minimum Impedance: 5Ω
Physical
Net Weight: 28.2kg / 62.2lbs.
Product Dimensions: (H x W x D): 767 x 380 x 198mm / 30-3/16 x 14-15/16 x 7-13/16 inches.
