Radial SGI Stereo Instrument Line Driver - Set
Additional Photos:
Description
Take your tone further in stereo
The SGI Stereo is an updated two-channel version of Radial Engineer's innovative SGI system. Featuring locking RJ45 Ethernet connectors (compatible with Neutrik etherCON locking connectors), the SGI Stereo allows a single Cat5 Ethernet cable to be used to connect the TX to the RX. This allows guitar players with stereo rigs to connect to dual amplifiers in a remote location, such as an amp room in a studio or when amplifiers are placed remotely on large stages. The system can also be used with a facility's existing Ethernet infrastructure, which is beneficial for home studios and any applications where rooms are wired with Ethernet cables but no analogue studio tie lines.
How it works

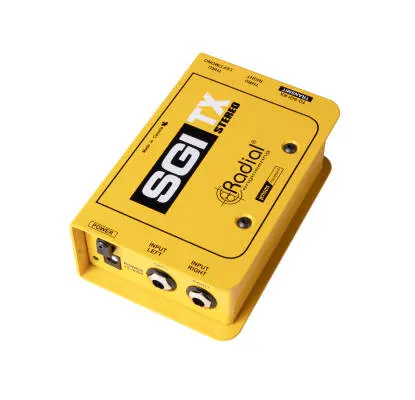

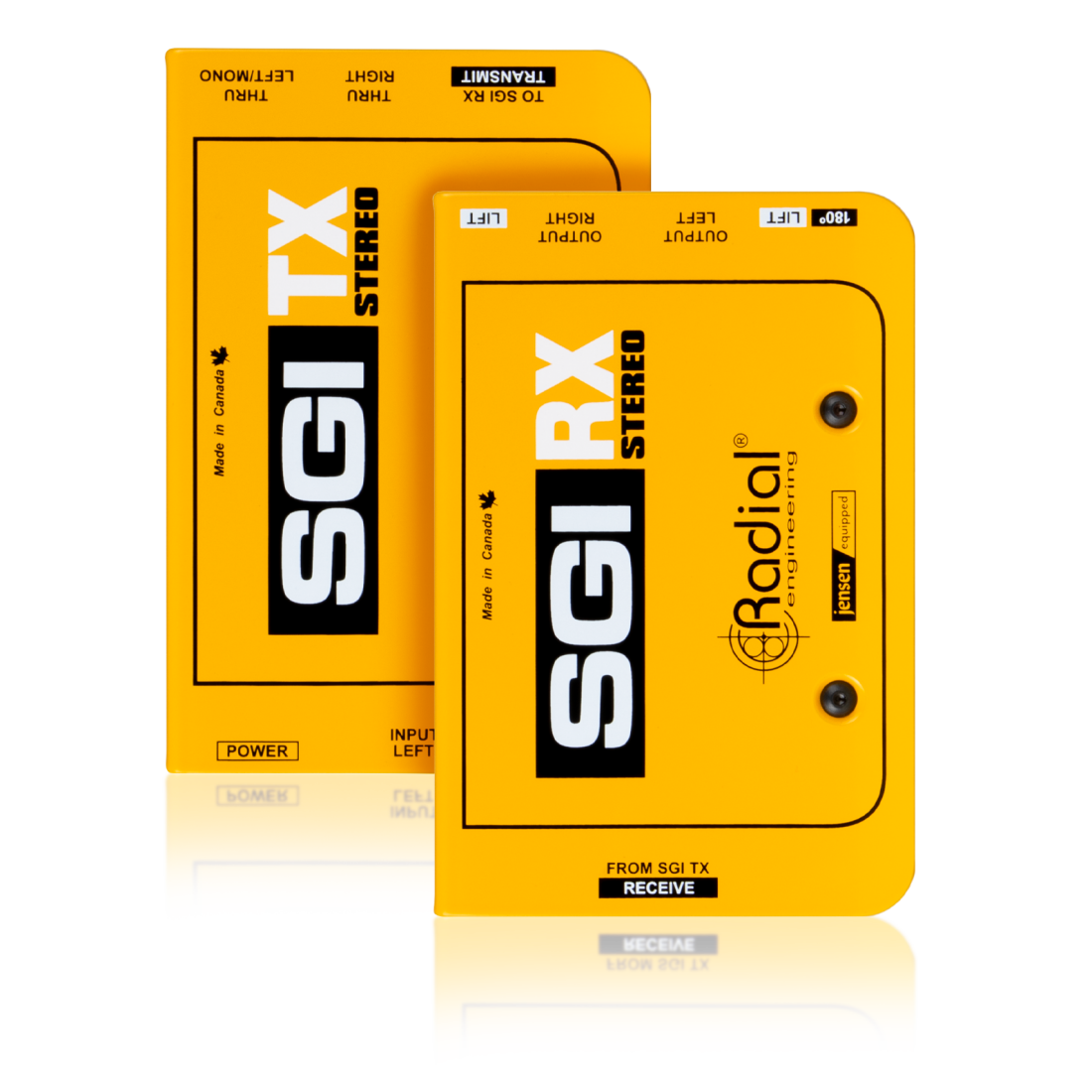

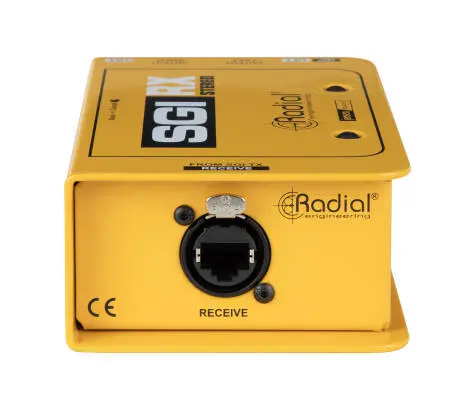

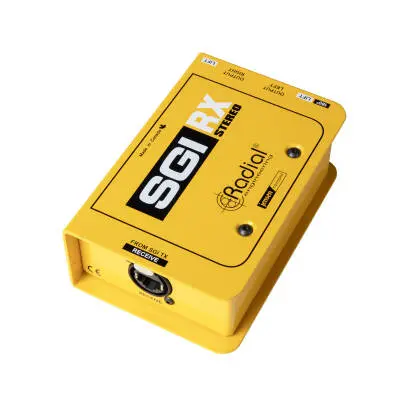

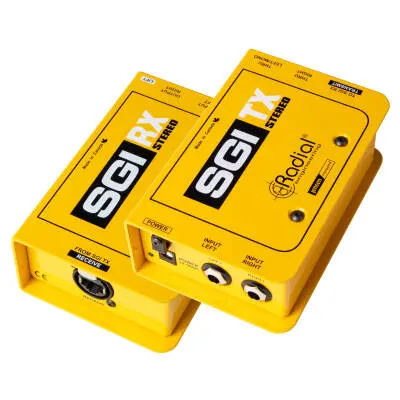

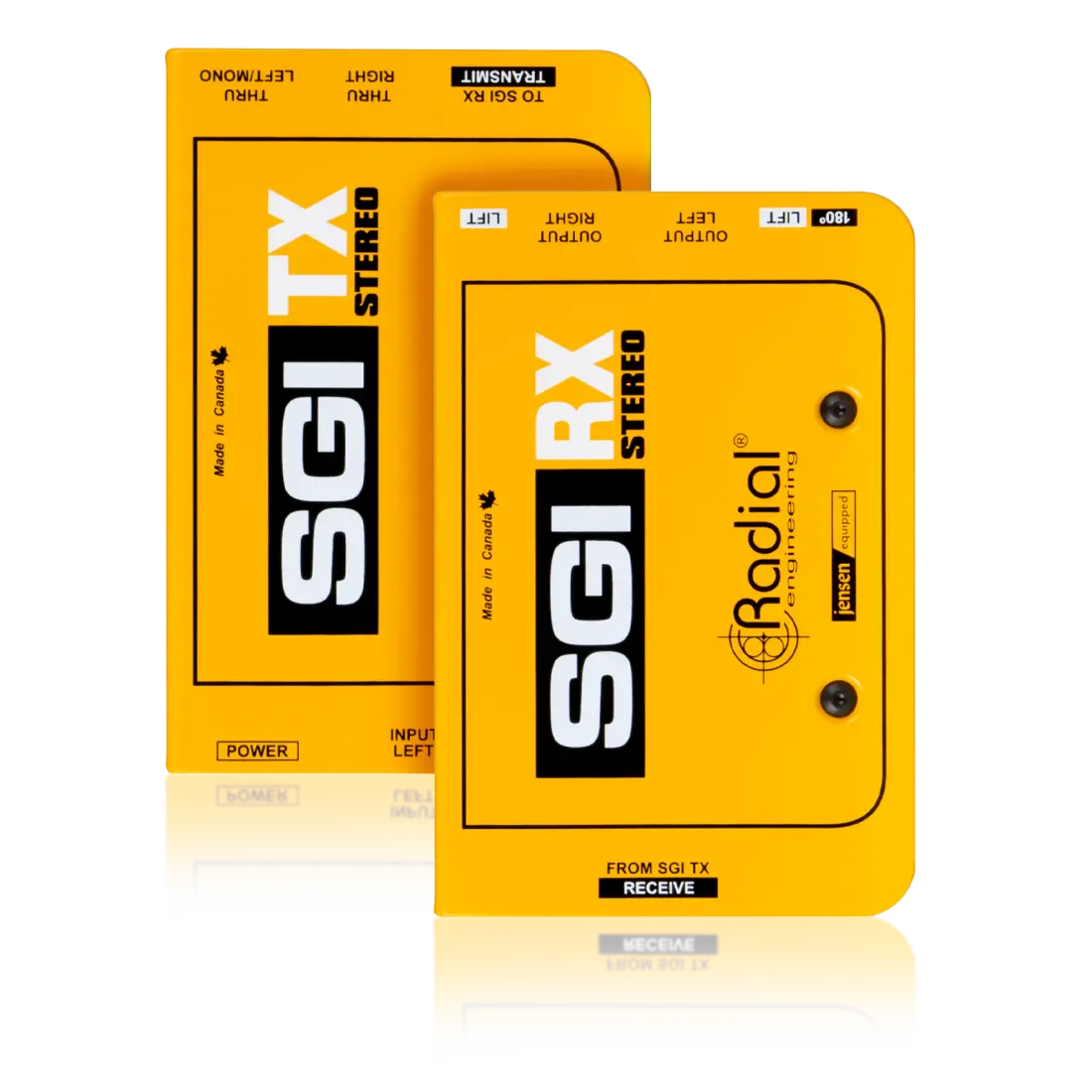

The SGI Stereo consists of two boxes: the SGI Stereo TX transmitter and the SGI Stereo RX receiver. To use, simply plug your pedalboard output's 1/4" cables into the TX Left/Right inputs, the TX to the RX via a single standard Cat5 Ethernet cable, and the Left/Right 1/4" outputs of the RX to your amplifiers. The SGI Stereo TX uses a discrete buffered circuit to drive your signals over long distances, while the SGI Stereo RX captures the stereo signal and converts it to the appropriate impedance to feed your amplifier(s), while retaining the original tone.

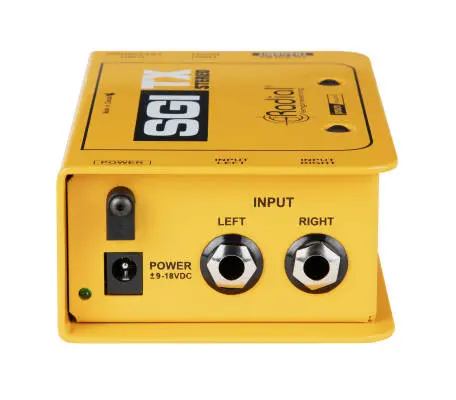

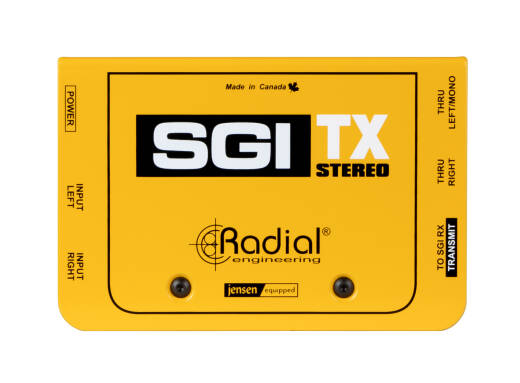

SGI Stereo TX Additional features

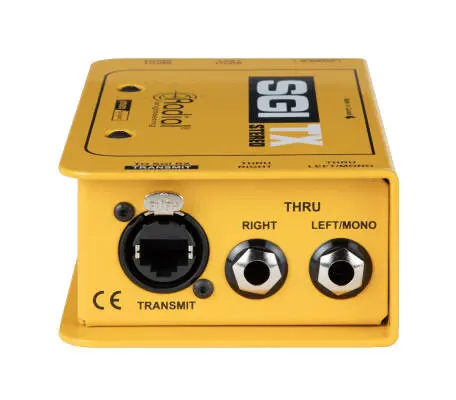

The TX unit is now equipped with Left/Right 1/4" Thru output jacks for sending unbalanced signals to local amplifiers or a direct box, eliminating the need to unplug from the SGI TX when connecting to nearby amps. If a connection is made to the Left Thru jack but not the Right Thru, both the left and right channels will be summed together on the Left Thru output.
SGI Stereo RX Additional features

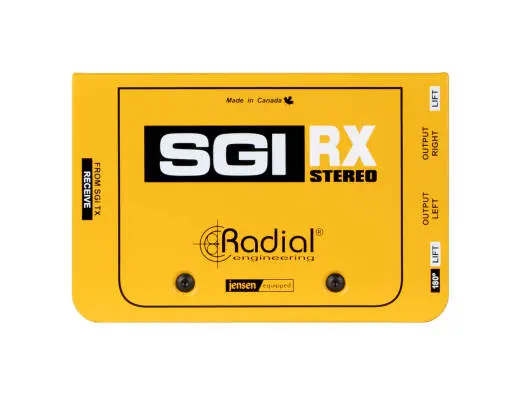

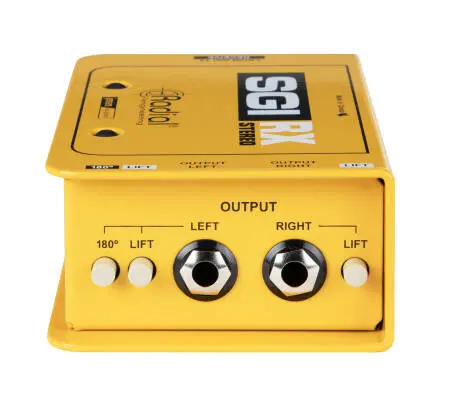

The SGI Stereo RX unit is equipped with a 180° Polarity reverse switch for the Left Output, which can be used to correct signal cancellation for amplifiers wired out of phase, as well as independent Ground Lift switches for each channel.
Jensen transformer equipped
The SGI Stereo Line Driver system features premium Jensen transformers: two in the SGI Stereo TX and two in the RX. In addition to helping with isolation to prevent hum and buzz from ground loops, Jensen transformers are a key part of the circuit that converts the signal at each end of the system. Using industry-leading Jensen transformers in the SGI Stereo system helps achieve a wider, flatter frequency response, lower noise and distortion, improved dynamic range, and a greater signal-to-noise ratio, allowing you to deliver audio cleanly across long distances without altering your original signal and tone.
Economic cabling & Pedalboard friendly
The SGI Stereo ships with an included 15V power supply to power the TX transmit unit, but it can also be used with standard pedalboard power supplies, making it easier to integrate on a pedalboard. You can use any power supply from 9V to 18V, and both centre-pin positive and centre-pin negative polarities are accepted. The SGI Stereo also employs analogue audio over Ethernet, which requires no digital conversion and allows you to use a lightweight, economical standard Cat5 Ethernet cable to run long distances between the transmit (TX) and receive (RX) units easily, eliminating the need for XLR cables. It also allows you to connect using existing building Ethernet infrastructure to send signals between rooms without long cable runs.
Features
• Balanced stereo line driver for guitar pedals, pedalboards, or amp modellers• Send signals up to 100 metres (300ft) without loss or noise
• Premium Jensen transformers for optimal sound quality
• Delivers natural tone to off-stage amplifiers
• Transmits analog audio over a single, economical Cat5 Ethernet cable
Specifications
- Frequency response: 20Hz - 18kHz, 1dB- Dynamic range: 103.4dB @ -20dBV, 20kHz BW
- Total harmonic distortion: 0.0052% @ -20dBu, 1kHz, 22Hz - 22kHz
- Intermodulation Distortion: 0.024% 60Hz/7kHz, 4:1, +4dBu
- Input Impedance: 200kΩ
- Output Impedance: 1.3kΩ
- Maximum Input: 8.28dBu @ 1% THD+N, 1kHz, unbalanced
- Cross Talk: -32.7dB @ -20dBu, 10kHz
- Total Harmonic Distortion + Noise: 0.0056% @ -20dBu, 1kHz, 22Hz - 22kHz
- Signal to Noise Ratio: 91dB re -20dBu, 1kHz
Features
- Input Connectors: 6x 1/4" TS, 2x etherCON locking RJ45
- Output Connectors: 6x 1/4" TS, 2x etherCON locking RJ45
- 180 Switch (RX Only): Reverses Polarity on Left output
- Ground Lift Switches (RX Only): Disconnects Pin-1 on associated 1/4" jack
- Power (TX Only): +9-18VDC compatible
General
- Construction: 14-gauge Steel Chassis
- Finish: Durable Powder Coat
- Power: +9-18VDC compatible (ships with 15VDC)
- Warranty: Radial 3-year, transferable
- Conditions: For use in dry locations only between 5°C and 40°C
