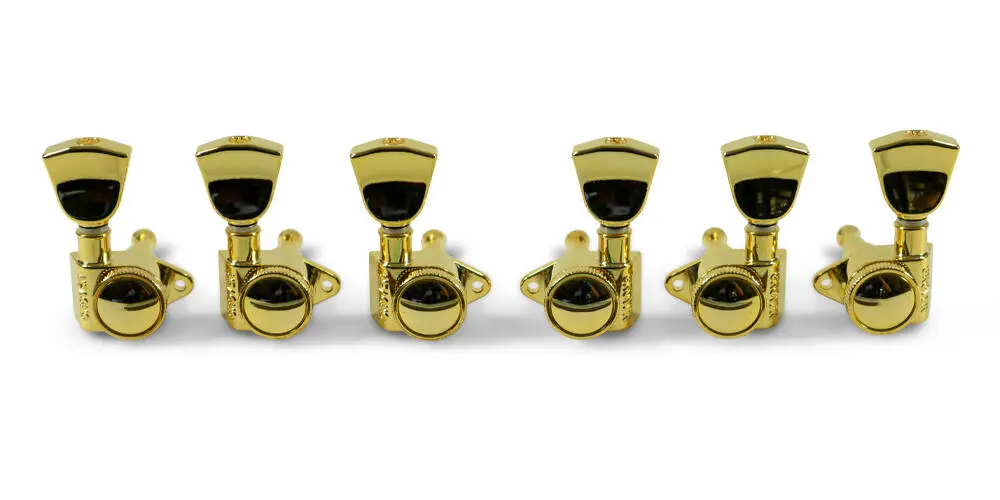

WD Music 3 Per Side Roto-Grip Locking Rotomatics - Gold with Keystone Buttons

The newest addition to the Grover family, these locking machine heads utilize the famous 18:1 Rotomatic® design with a "thumb screw" mechanism which locks the string into place. Insert the string through the post hole, wrap around once, then lock by tightening with the thumb screw. Perfect replacement for the most standard machine heads. Includes all mounting hardware.

Please Note: Grover tuning machines produced prior 1985 use different specifications for threading and shaft sizing. Current production replacement parts are not interchangeable on vintage (pre-1985) Grover tuning machines.

Specifications

- Gear ratio: 18:1
- Peghole Requirement: 25/64 in. (10mm)
- Post Length: 1 inch (25.4mm)
- Post Diameter: 15/64 in. (6mm)
- Bushing Type: Hex Head screw in
- Collar Diameter: 25/64 in. (10mm)
- Collar Height: 25/64 in. (10mm)
- Mounting Screw Hole Location: 6 O'clock low
