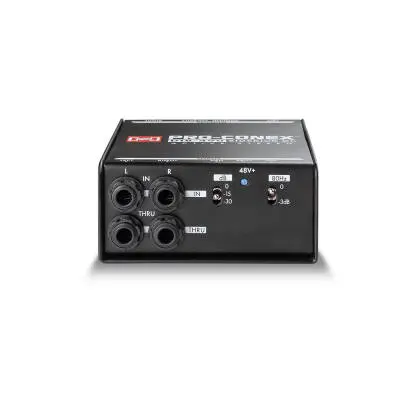

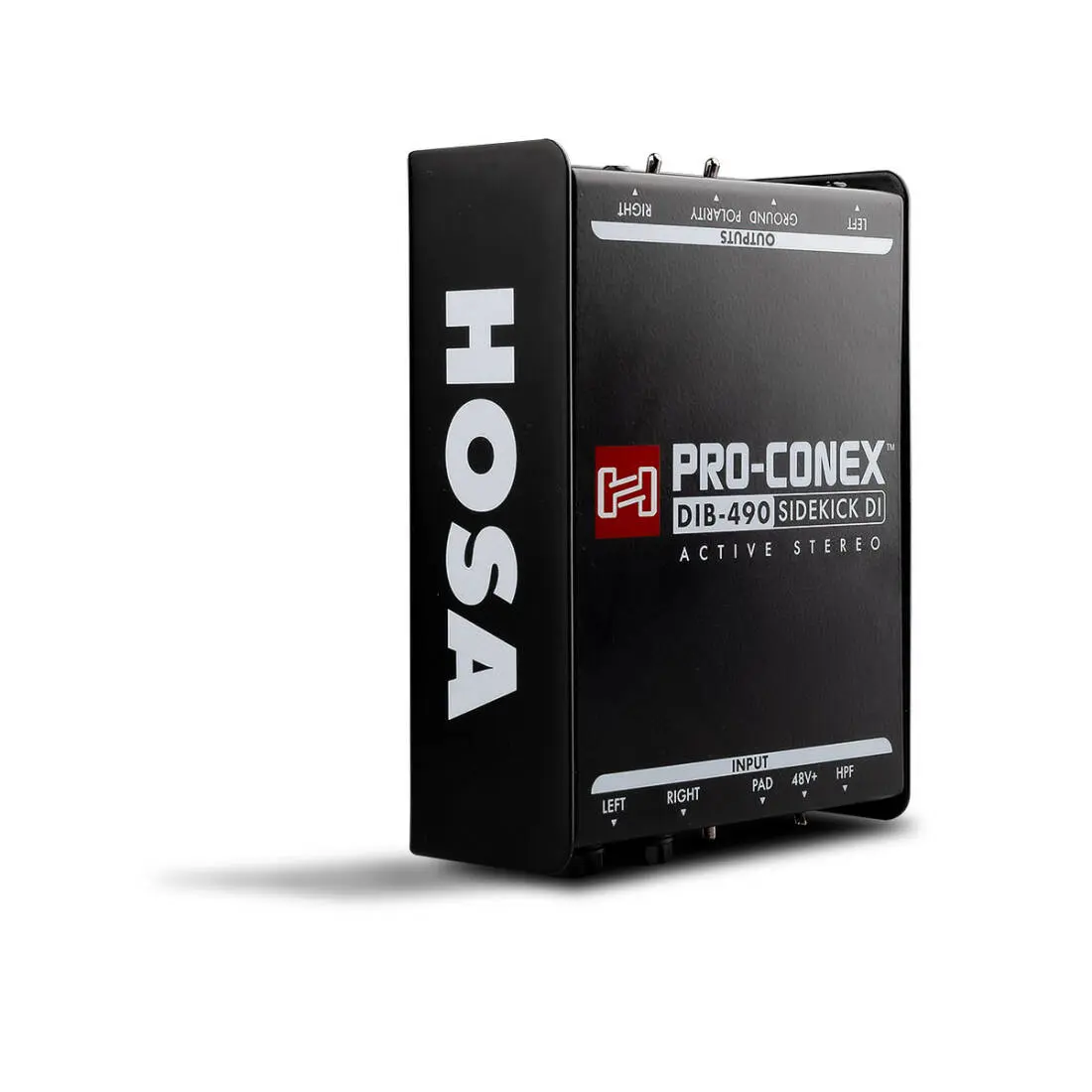

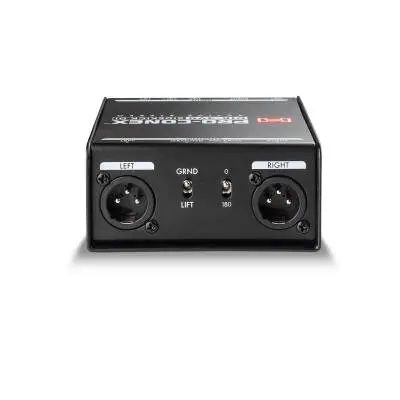

Hosa Pro Conex Sidekick Active Stereo DI Box

The DIB-490 is the active stereo model in the Hosa Pro-Conex Sidekick direct box series. Designed to streamline the connection of stereo instruments and high-impedance sources to a DAW or mixing console, the DIB-490 utilizes 48V Phantom Power to deliver an active, high-headroom signal path that preserves the transient response and frequency content of your source.

This dual-channel unit is the ideal solution for stereo keyboards, synthesizers, and drum machines, or for connecting two separate mono instruments (like a bass and guitar) through a single box. Unlike passive DIs that can load down high-impedance signals, the Sidekicks active buffering presents a high input impedance to your instrument, ensuring the natural tone remains bright and clear.

Features

• Dual Channel
• 48v Phantom Power
• 0db, -15db, and -20 db attentuation pad
• Ground lift and polarity flip switches
• Two 1/4" Thru outputs for sending the unprocessed signal to stage amps while feeding the PA
• Two 1/4" TS unbalanced inputs
• Two XLR3 male balanced outputs

Specifications

Circuit Type: Active (Transformerless Balancing)
Channels: 2 (Stereo or Dual Mono)
Inputs: 2 x 1/4" TS (Unbalanced)
Outputs: 2 x XLR3M (Balanced)
Thru/Link: 2 x 1/4" TS
Power Source: 48V Phantom Power
Input Pad: 0dB, -15dB, -30dB
Switches: Ground Lift, Polarity Reverse, Pad
