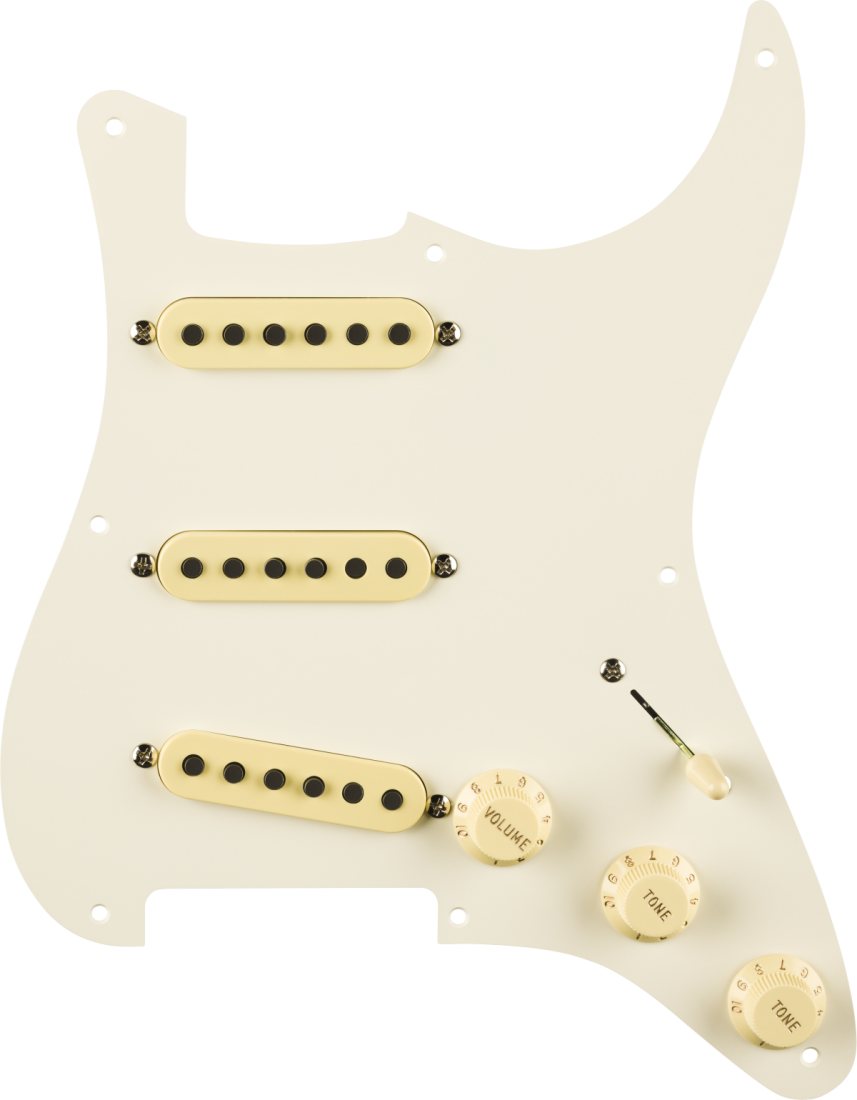

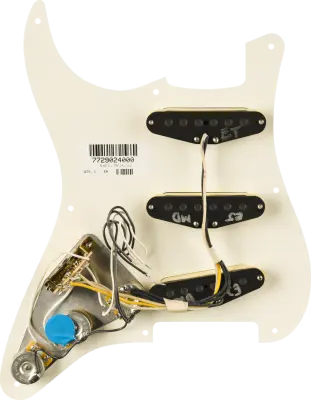

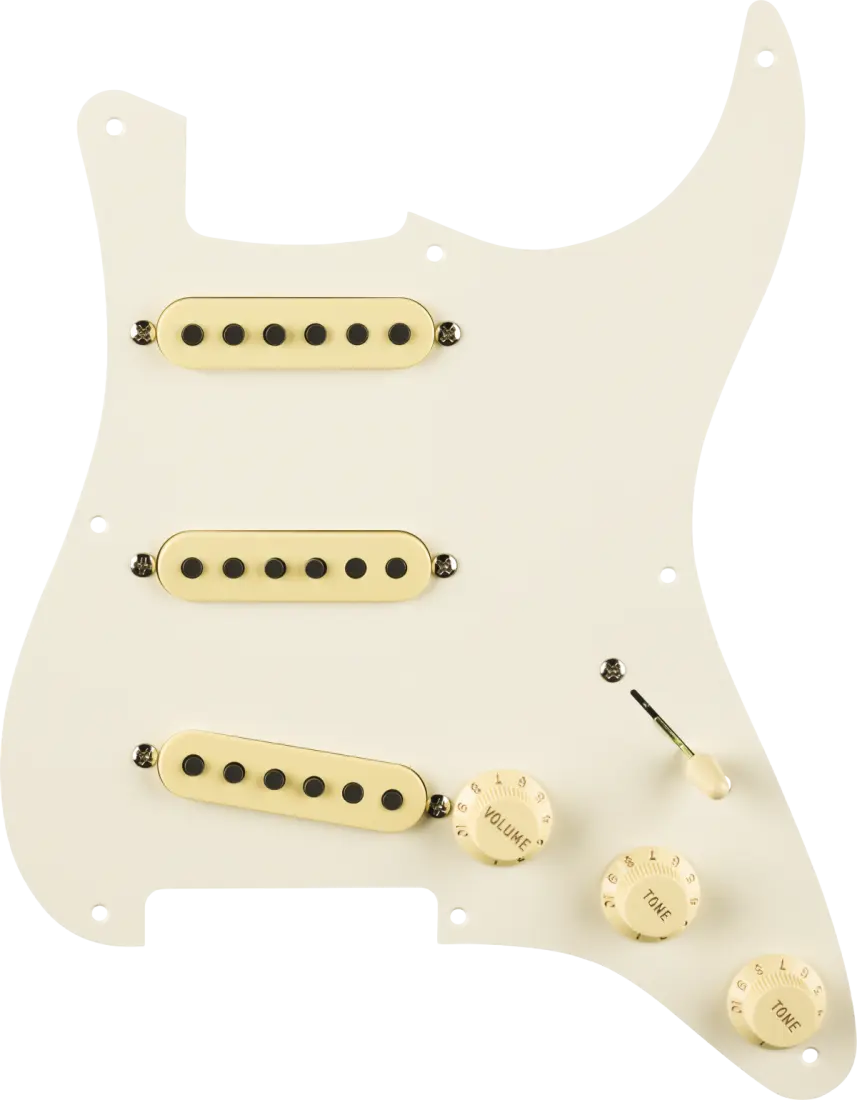

Fender Eric Johnson Signature Pre-Wired Strat Pickguard, 8 Hole - Parchment

Customize your tone with the Pre-Wired Stratocaster pickguards. Made with premium components in the same factory as Fender's iconic guitars, this drop-in pickguard is easy to install. Simply remove your old guard, solder the output jack and ground wires, screw in the new guard and you're ready to rock with pure Fender sound.

With slightly hotter output than typical vintage pickups and a powerful combination of magnets, these sonically potent and highly dynamic pickups produce the perfect balance of clean, dirty rhythm and lead tones to satisfy all level of players, through any amplifier. The neck pickup is based on a '54 Strat pickup with oversized alnico 3 magnets. The middle pickup, based on a '63 Strat pickup, uses specially treated alnico magnets and is reverse wound to cancel hum when used with the neck or bridge pickup. The bridge pickup uses alnico 5 magnets and is specially voiced to be hotter without sacrificing that sweet top end sparkle.

Features

• Hotter output bridge pickup
• Highly dynamic, balanced output
• Oversize alnico 3 magnets in neck pickup
• Alnico 5 magnets in bridge and middle pickups
• Reverse-wound middle pickup to eliminate hum

Specifications

General
Series: Artist Signature
Orientation: Right-Hand
Color: Parchment
Country Of Origin: US

Hardware
Pickguard: 1-Ply Parchment
Pickguard Ply: 1-Ply
Pickup Covers: Aged White
Control Knobs: Aged White
Switch Tip: Aged White
Hardware Finish: Chrome

Electronics
Bridge Pickup: Custom Eric Johnson Signature Stratocaster® Bridge Pickup
Middle Pickup: Custom Eric Johnson Signature Stratocaster® RWRP Middle Pickup
Neck Pickup: Custom Eric Johnson Signature Stratocaster® Neck Pickup
Pickup Configuration: SSS
Lead Wire: Cloth-covered
Magnet Type: Neck and Middle: Alnico 3, Bridge: Alnico 5
Magnet Wire: Formvar-coated
Pole Pieces: Staggered
Bobbin Material: Fiber
Controls: Master Volume, Tone 1. (Neck Pickup), Tone 2. (Bridge Pickup)
Switching: 5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup
Output: Vintage
DC Resistance: Neck: 5.8-6k, Middle: 6.3-6.5k, Bridge: 6.7-6.9k
Inductance: Neck/Middle: 2.5-2.7 Henries, Bridge: 2.9-3.1 Henries
Power Requirements: Passive
Potentiometers: CTS 250K
