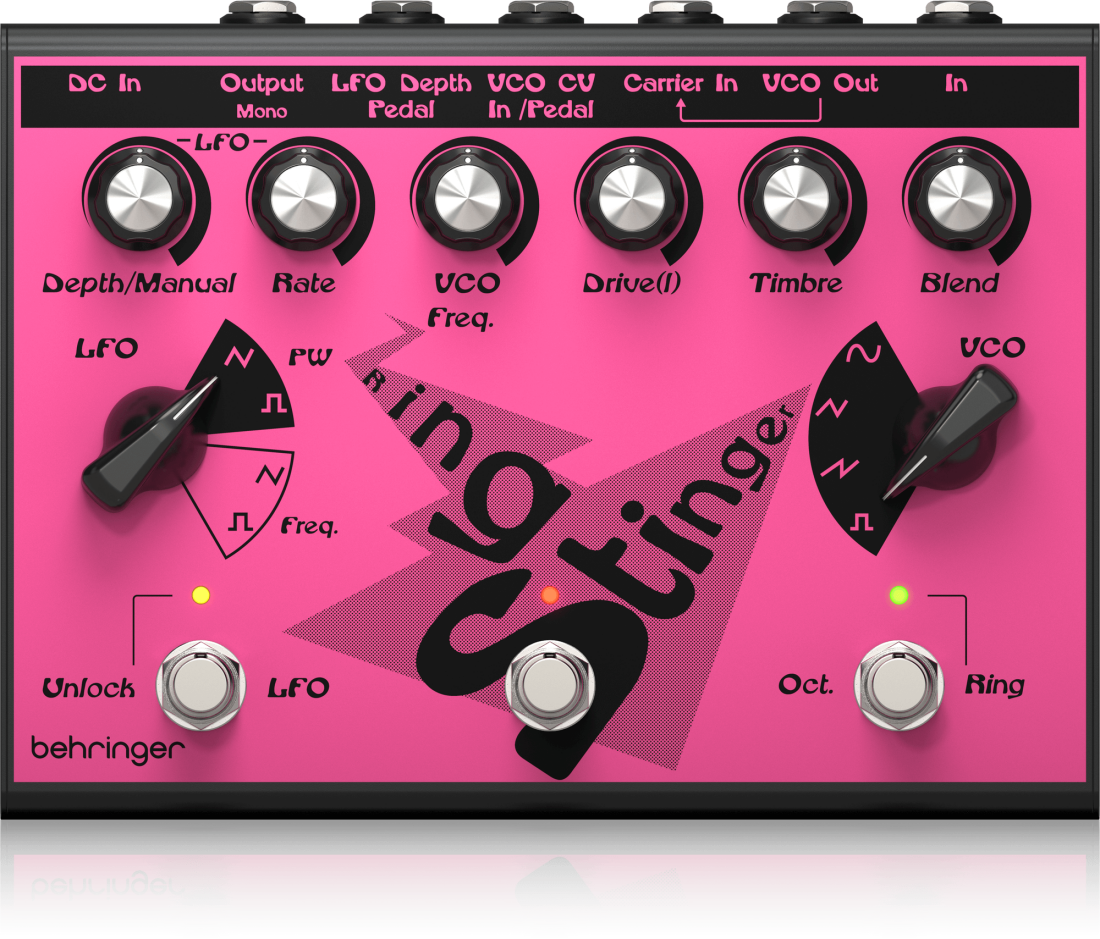

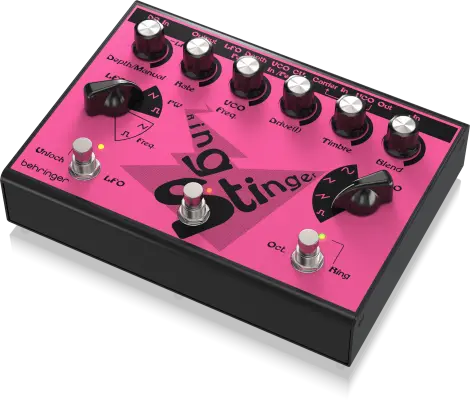

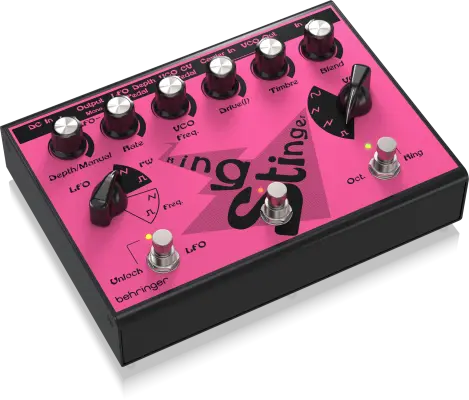

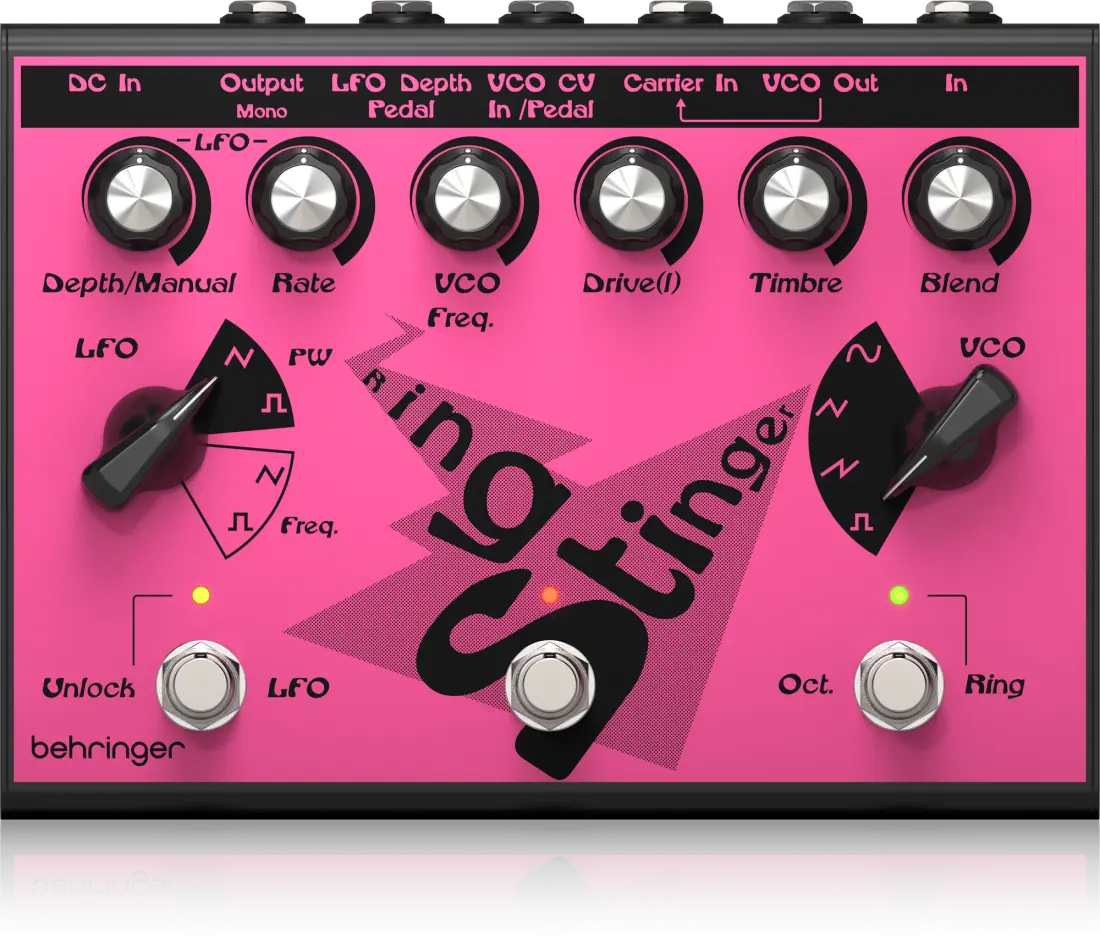

Behringer Ring Stinger Restyled '90s Ring Modulator

Ring Mod With A Hint Of Fuzz
Welcome to a world of sound sculpting carnage like something before! Yes that's right, this box of madness brings back to life the DNA of a boutique 90's gem that had previously been lost to time. Jammed packed with a concoction of Ring Modulation and Fuzz, the tones produced by this box truly have to be heard to be understood.

Out Of Control
Experimentation is firmly at the beating heart of this pedal, so it only makes sense that you get a massive amount of control to bend sound to your will. One tweak can send you hurtling in a new direction. The control does not stop there, add to the mix, control of LFO Depth and VCO frequency via external expression, plus the ability to input your own carrier signal and you are beginning to unravel the world of possibilities available to you.

One For All And All For One
Guitarists, synth players, bassists, harpists, electric violinists and everything in between. You're all welcome here! No matter what you're looking to sonically tear apart and reinvent, Ring Stinger will welcome you with open arms. In fact the more creative the input the source the better! Explore an entirely new soundscape for your instrument with a pedal previously reserved for boutique collectors.

Features

• Ring Modulation: core feature that creates metallic and harmonic overtones through signal manipulation
• Pitch Shifting: allows for real-time control of pitch modulation, producing unique and experimental tones
• Expression Pedal Compatibility: enables dynamic control of various parameters, adding expressiveness
• Low-Frequency Oscillator (LFO): provides rhythmic modulation patterns for dynamic soundscapes
• Harmonic Generation: generates harmonics and sidebands for complex and evolving textures
• Filter Section: incorporates filters to shape and sculpt the modulated signal
• Mix Control: balances the dry and modulated signals for precise tonal blending
• Waveform Selection: offers different modulation waveform options for versatility
• Frequency Control: adjusts the frequency range of the ring modulation effect
• Voltage-Controlled Oscillator (VCO): adds a VCO for even more control over pitch and modulation
• Assignable Parameters: allows users to assign expression control to various parameters
• True Bypass: maintains the integrity of the dry signal when the effect is disengaged
• Vintage Aesthetic: features a distinctive, retro design that stands out on pedalboards
• Powered Options: works with a standard DC power supply

Specifications

Audio Connections
Input
- Connector: 1 x 1/4" TS, unbalanced
- Impedance: 1 MΩ

VCO Out
- Connector: 1 x 1/4" TS, unbalanced
- Output impedance: 470 Ω
- Carrier In impedance: 97 kΩ

Output mono
- Connector: 1 x 1/4" TS, unbalanced
- Impedance: 470 Ω

Control Connections
LFO Depth Pedal
- Connector: 1 x 1/4" TRS
- Impedance: 810 Ω, unbalanced
- CV input range: 0 V to +5 V

VCO CV In/Pedal
- Connector: 1 x 1/4" TRS
- Impedance: 1 MΩ, unbalanced
- CV input range: 0 V to +5 V

Controls
- Depth / Manual: 1 x rotary knob
- Rate: 1 x rotary knob
- VCO Freq.: 1 x rotary knob
- Drive (l): 1 x rotary knob
- Timbre: 1 x rotary knob
- Blend: 1 x rotary knob
- LFO (Triangle/Square/ Triangle/Square): 1 x rotary switch
- VCO (Sine/Triangle/ Sawtooth/Square): 1 x rotary switch
- LFO (Unlock): 1 x footswitch
- Bypass: 1 x footswitch
- Oct./Ring: 1 x footswitch

System
- Frequency response: 20 Hz to 20 kHz (+0 / -2 dB)
- Dynamic range: 86 dB
- Signal-to-noise ratio: 76 dB
- Overall gain: +15 dB

Power Supply / Voltage
- Power input: Standard 9 V DC, centre negative, > 400 mA
- Power consumption: 0.7 W

Dimensions / Weight
- Dimensions (H x W x D): 62.3 x 200.1 x 148.5 mm (2.5 x 7.9 x 5.9")
- Weight: 1087.0 g (38.3 oz)
