WD Music Concentric Knobs - Black (Single)

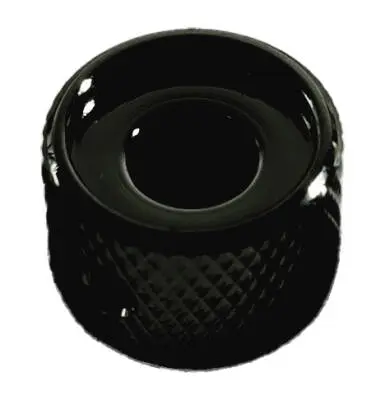

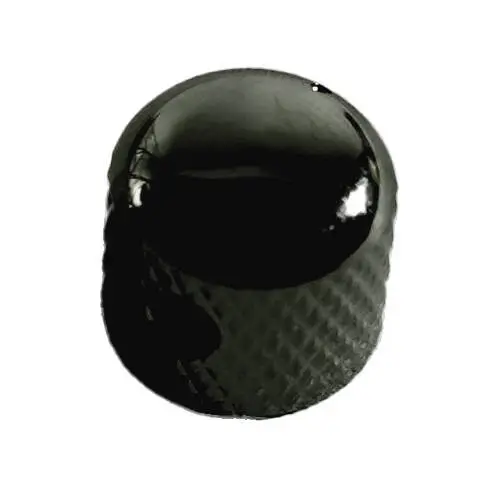

WD Concentric pot knobs are made to fit the WD Concentric pots, part # CCP. The bottom knob with inset and top knob allows for independent controls of the two wipers and offer dual controls in one pot location. These knobs are brass and attach using a set screw to the two independent solid shafts of WD part CCP. The bottom knob inset is 3/32 in deep and allows the upper knob to sit lower within the diameter of the bottom knob lowering the overall height of the two knobs stacked from the top of the instrument by that amount.

Specifications

- Lower knob height: .5 in. (12.55mm)
- Lower knob diameter: .75 in. (19.25mm)
- Lower knob inset: 3/32 in. (2.35mm)
- Upper knob height: 35/64 in. (14mm)
- Upper knob diameter: 19/32 in. (15.2mm)
- Overall height stacked: 61/64 in. (24.2mm)
- Top and bottom set screw requires 2mm Allen wrench
