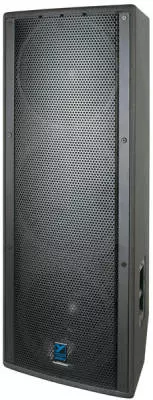

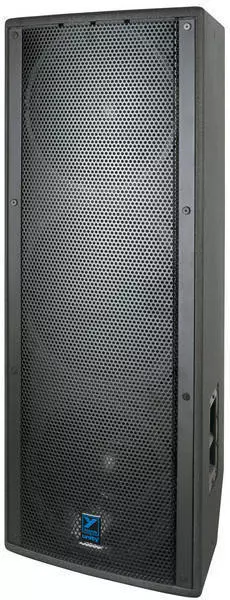

Yorkville Sound Dual 15 Inch Elite Speaker Cabinet Painted
Several of the lite loudspeakers are loaded with 80 x 50 rotatable ABS Waveguide horn assemblies (the E10 utilizes a 100 x 25 horn). The ability to rotate the horn assembly ensures that the cabinet can provide optimum high frequency dispersion when the loudspeaker is used in either a vertical, horizontal or arrayed application.
Integrated stand mount adapters and flyware means these enclosures can be utilized in any permanent install or touring application. In addition, the modified cabinet shape means the lite series can be installed much closer to vertical surfaces and in some cases, under balconies in tight locations, and can be arrayed in a much tighter less obtrusive cluster.
Advanced Crossover Networks and Protection Schemes
The majority of the lite range feature seamless driver interaction through sophisticated high-slope passive networks and ingenious component protection schemes. Rugged jackplates are inset and include a combination of both Speakon and 1/4" phone jack inputs.
Advanced PTC Horn Protection makes its debut in the lite series.
PTC is an ingenious current sensing / self resetting breaker that offers some serious advantages over current protection schemes used in many loudspeaker cabinets. This protection scheme, while always present in the signal path, remains inaudible until it becomes necessary for it to react. It kicks in at a point where it effectively reduces output to the horn and protects that diaphragm from damage due to excessive power input or signal distortion. Unlike a breaker it does not require a physical reset to allow signal back to the horn driver, and unlike a bulb or fuse, does not need to be replaced if the circuit is tripped, and the fuse is blown.
Where PTC shines is in heavy feedback environments where most horn diaphragm damage occurs. In rare situations even where a microphone might be dropped in a monitor, the sustained 'squeal' can destroy diaphragms in seconds. PTC will significantly reduce output level to the horn to protect the diaphragm. When the situation has been rectified, and the feedback eliminated the horn will return to full operating level within half a second.
The E2152 features the ATP (Active-Transistor) protection system, which allows the horn driver to operate at levels significantly above those required for normal operation. The ATP brickwall element of the protection circuit uses power transistors configured to operate linearly yet have the fast attack required to protect against harmful transients. Along with ATP, the crossover also incorporates air core coils and polypropylene capacitors to guarantee reliable and distortion free operation at extreme levels. The sonic benefit is higher output and greater transparency when operating at high levels.
Processor Controlled
Full function stereo analog processors that are configurable for passive or bi-amp operation, as well as live or recorded music applications make sure that your lite system is always tuned and ready.
Rugged Driver Mounting System
All lite cabinets feature a specially reinforced driver mounting system that makes sure the horn drivers will still be attached to the horns when you get to the show. The ABS or composite horns are pressure fitted to the driver which is bolted to the internal driver support.
Custom Design Horns
Custom ABS plastic and composite horns are specifically designed for each cabinet and manufactured right in our factory for optimum quality control. This insures proper waveguide output for better clarity and lower distortion.
Curved Metal Speaker Grilles
Curved metal grilles absorb shocks evenly to resist dings and dents while eliminating frequency resonance. The trapezoidal cabinet shape allows for arrayable performance without phase cancellation.
Recessed Handles
All lite cabinets feature attractively recessed bar handles. Great care is taken to make sure that they "stay out of the way", but are easy to get at when you need them.
Integrated Wheels
Tilt back wheels and top-mounted handles are standard issue on the larger cabinets such as the E215, E2152, LS1208 and LS1004.
