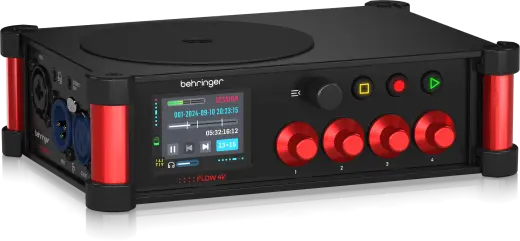

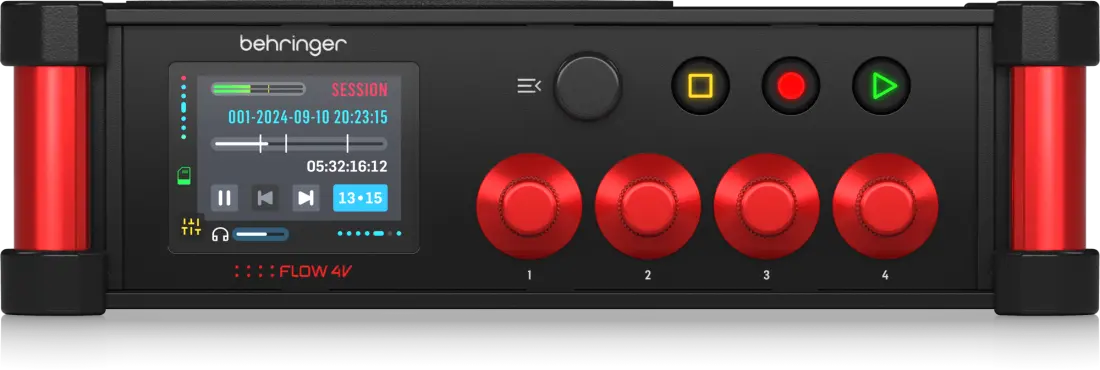

Behringer Flow 4V Digital Audio Mixer for Video Production

FLOW 4V is built for modern video production. Capture clean, multitrack audio on set. Stay perfectly in sync with your camera. Move faster from shoot to edit. Film. Stream. Create content. Without compromise.

Forget ruined takes. FLOW 4V captures everything from whispers to impact hits. 4 dual-gain mic preamps dual-stage A/D converters. An extreme 142 dB dynamic range. Quiet details stay clean. Loud moments virtually impossible to clip.

Specifications

General
Frequency Range (+/- 1 dB): 5 Hz - 22 kHz
Dynamic Range (Inputs): 140 dB (142 dB A-weighted)
Frame Rate (FPS): 29.98, 24, 25, 30, 50, 60

Mic Inputs
Type: 4 x XLR/ 1/4" TRS combo jacks, balanced
EIN (20 Hz - 20 kHz): -130 dBu (-132 dBu A-weighted)
Distortion (THD + N): 0.007% @ -40 dBu in
0.0003% @ -20 dBu in
Crosstalk rejection @ 1kHz, adjacent channels: -110 dB
Max Input Level: XLR: +18 dBu
TRS: +29.5 dBu

Impedance: XLR: 9.5 kΩ bal.
TRS: 30 kΩ bal.
Max Gain: +70 dB
Phantom Power: +48 V, switchable

AUX IN
Type: 1 x 1/8" TRS jack, stereo
Distortion (THD + N):  0.008% @ + 6 dBu in
Max Input Level: +24 dBu 
Impedance: 10 kΩ

HEADSET IN/OUT
Type: 1 x 1/8" TRRS jack, stereo + mic in
Impedance: 40 Ω 
Max Input Level: +10 dBu
Max Output Level: 110 mW @ 30Ω
110 mW @ 75Ω
75 mW @ 300Ω

STEREO OUT
Type: 1 x 1/8" TRS jack, stereo
Impedance: 100 Ω
Max Output Level: +4.6 dBu

USB Audio Interface
Type: USB 2.0
Connector: Type C
Sample Rate: 48 kHz
Bit Depth: 24-bit / 32-bit float
Channel at Host: 12 IN/ 2 OUT

HDMI
Type: Micro HDMI
CEC: Camera Controlled Rec Start

Bluetooth
Frequency range: 2402 MHz ~ 2480 MHz
Channel Number: 79
Version: Bluetooth 4.0 Dual Mode
Compatibility: Supports A2DP 1.2 profile
Max Communication Range: 12 m (without interference)
Max Output Power: 9.6 dBm
Gain: 1.84 dBi

Power Supply / Voltage
Connector: USB-C
Power Supply / Voltage: USB-C PD
Power Consumption: 10 W
