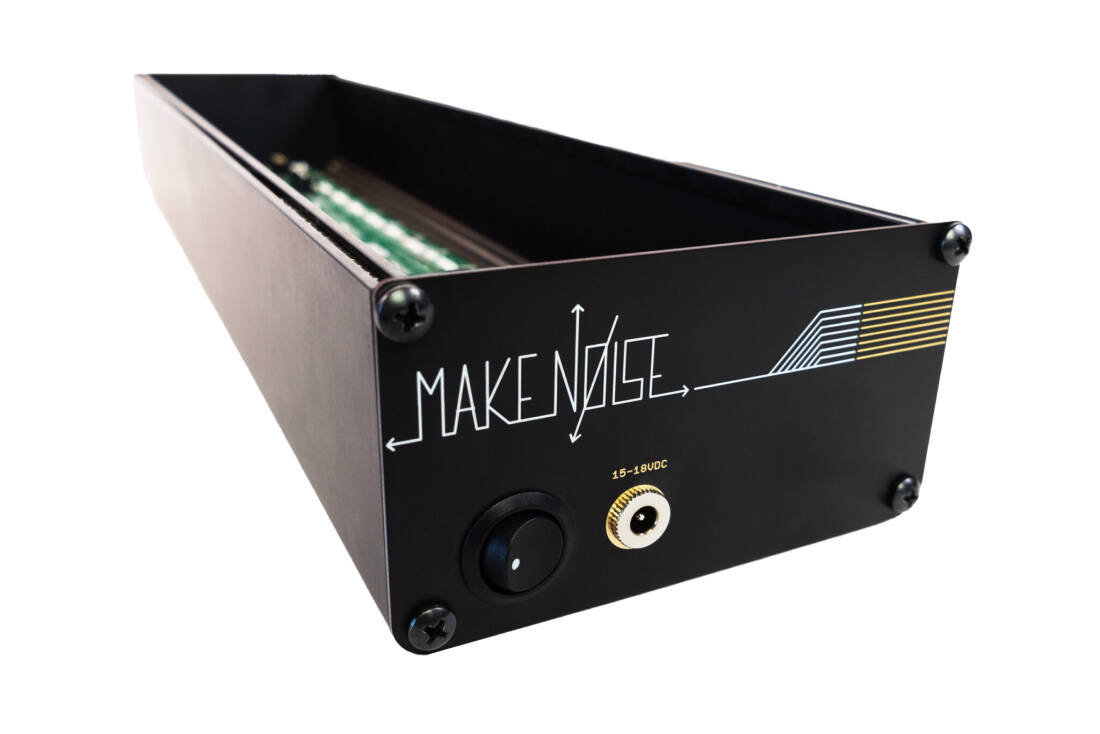

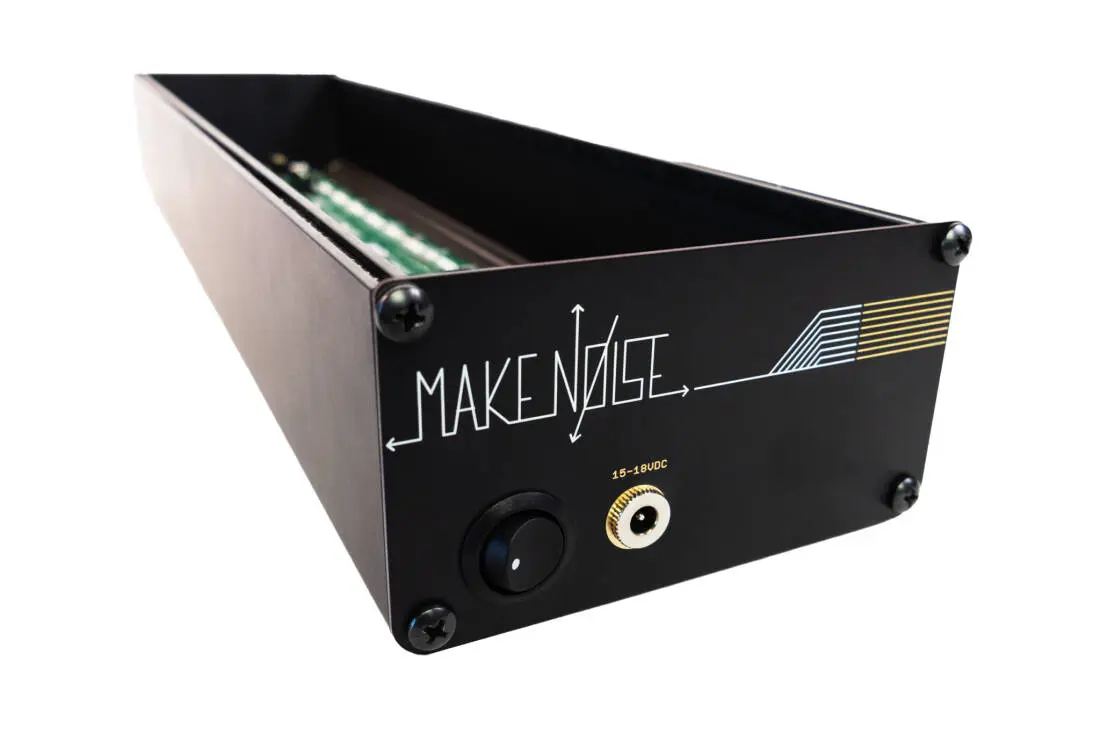

Make Noise 2 Zone Skiff

In 2009, Tony designed the first Skiff to complement the vertically oriented Doepfer P6 cases available at the time by providing an ergonomic enclosure for Make Noise's Rene and Pressure Points touch controllers. These early skiffs were shallow, handcrafted wood designs. In 2015, a revised aluminum 3U Make Noise Skiff was released. This new design had enough depth to fit a wide range of modules, providing a smart way to build a small modular synthesizer.

Now, the Skiff has been updated again, this time to meet the more demanding power standards of today, with the 2-Zone Bus Board providing nearly double the power of its predecessor, plus the multi-zone design making it easy to isolate noise-susceptible or noise-causing modules from each other. The low-profile power headers are shrouded for easy and efficient module installation.

As before, the Skiff's powder-coated aluminum construction is extremely durable. The clean, simple lines and matte black color place visual emphasis where the action is; the patch the artist has created.

Features

• Black Powder Coated Aluminum
• 2-Zone Bus Board provides ample power and module isolation
• 16 Shrouded Power Headers
• 40 Sliding Square Nuts, 40 Black M2.5 Screws
• Side Mounted On/Off Switch
• 5V Power included
• Select Bus and Eurorack Bus Compatible
• Universal AC Power Adapter works worldwide

Specifications

Size: 3U
Total HP: 104
Outer Dimensions: 21.5" x 5.14" x 2.75"
Max Module Depth: 2" over bus board, 2.5"
Weight: 4.55 lbs (8.1 lbs packed)
Power: +12VDC @ 2A, -12VDC @ 1.2A, +5VDC @ 1A
