Korg microAUDIO 22 Audio Interface
Additional Photos:
Product Videos :
Related Products
Description
Compact Form. Premium Sound
microAUDIO offers a pristine, open sound with a strong sense of depth and generous headroom in a compact, desktop-ready design.
Studio-grade preamps are tuned for musical gain with minimal noise, prioritizing clarity while avoiding excess circuitry. Both models support 24-bit/192kHz audio and include balanced inputs and outputs for high-quality recording and playback.
From detailed vocal work to layering synthesizers or performing live, every nuance is faithfully captured.
Intuitive, Hands-On Control for Creative Flow
Each channel of the microAUDIO series features versatile Mic, Line, and Hi-Z inputs with 48V phantom power, plus assignable Noise Gate and either a Compressor or Limiter for smooth, musical gain with minimal noise. These processors can be applied not only to input signals, but also to any audio played back from a connected computer.
Front-panel knobs provide direct access to essential functions, and zero-latency direct monitoring ensures immediate feedback during recording or live performance. The headphone output can be assigned independently of the main outputs, allowing you to route a click track exclusively to the headphones or monitor cue signals when connected to DJ applications.
The Stereo Link function allows both channels to be controlled simultaneously with a single knob, making it ideal for stereo synthesizers and other paired sources. This workflow keeps the technical side simple so you can stay focused on creating.
Ready for Streaming and Mobile Creation
Built-in loopback mode sends computer audio directly into your livestream or DAW without complicated routing. This is ideal for streaming, sampling, or capturing content on the fly.
With USB-C connectivity, microAUDIO works seamlessly with smartphones and tablets, making it easy to create or stream from anywhere.
Whether recording at home, performing on stage, or streaming online, the microAUDIO series adapts to your workflow and delivers consistent, professional sound.
Software Bundle for Instant Creation
microAUDIO includes a complete software suite with instruments and production tools such as Ableton Live Lite, Native Instruments Komplete Select, and iZotope Ozone Elements. This covers everything from composition and recording to mixing and mastering. You can begin creating immediately.
Specifications
Audio formatSampling rate: 44.1 kHz/48 kHz/88.2 kHz/96 kHz/176.4 kHz/192 kHz
Bit rate: 24-bit
Mic input
Dynamic range: 109.5 dB (A characteristic)
THD+N: less than 0.015% (minimum gain, -1 dBFS input)
Maximum input level: -2 dBu (minimum gain)
Gain range: 56 dB Impedance: 1.5 kΩ
Line input
Dynamic range: 109.5 dB (A characteristic)
THD+N: less than 0.004% (minimum gain, -1 dBFS input, 22 Hz/22 kHz bandpass filter)
Maximum input level: 13 dBu/18 dBu (SE/ DIF) (minimum gain) Gain range: 56 dB
Impedance: 1 MΩ/2 MΩ (SE/DIF)
Line output
Dynamic range: 109.5 dB (A characteristic)
THD+N: less than 0.0015% (minimum gain, -1 dBFS input)
Maximum output level: 10 dBu/16 dBu (minimum gain)
Impedance: 330 Ω/660 Ω (SE/DIF)
Headphone output
Dynamic range: 107 dB (A characteristic)
THD+N: less than 0.0015% (minimum gain, -1 dBFS input, 22 Hz/22 kHz bandpass filter)
Maximum output level: 10 dBu (minimum gain)
Impedance: 20 Ω

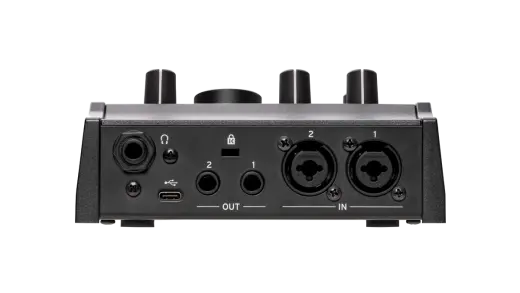

Jacks and ports
IN 1, 2 jacks (xLR/6.3 mm TRS monaural phone jack)
OUT 1, 2 jacks (6.3 mm TRS monaural phone jacks)
(USB) port (Type-C)
(headphones) jack (6.3 mm stereo phone jack)
Power supply: USB bus power
Current consumption: 800 mA or less
Dimensions (W x D x H): 150 x 128 x 68 mm/5.91" x 5.04" x 2.68"
Weight: 407 g/0.90 lb
Included items: USB cable, Quick Start Guide
