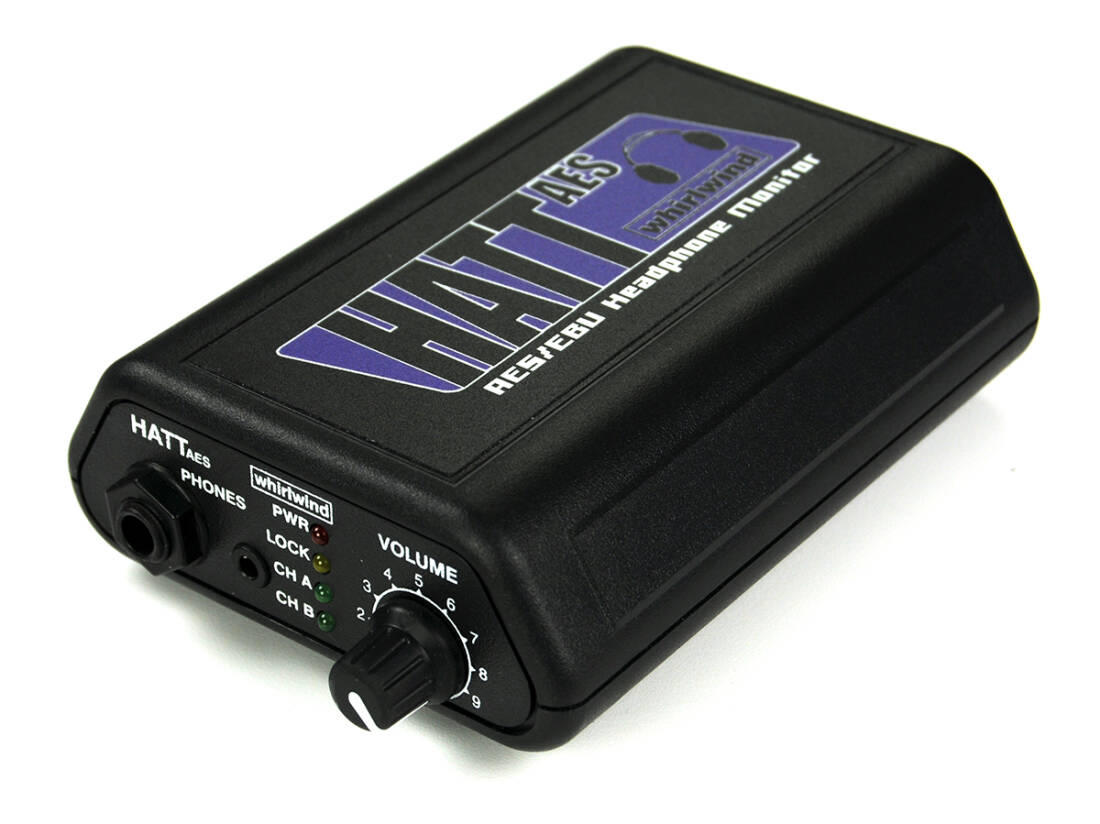

Whirlwind HATT AES Active Headphone Amplifier
Additional Photos:
Related Products
Description
The HATT-AES is powered by an included model #PS6 "wall wart" supply. Both 1/4" TRS and 3.5mm TRS headphone jacks are provided and the volume control adjusts the listening level. The HATT-AES is housed in an attractive, durable ABS box for placement anywhere a high quality headphone driver is required.
Specifications
GeneralNumber of Headphone Channels: Single Channel
Headphone Impedance: 32 Ohms recommended
Connectivity
Analog Audio I/O:
- 1x 1/8" / 3.5 mm TRS Stereo Input
- 1x 1/4" TRS Headphone Output
- 1x 1/8" / 3.5 mm TRS Headphone Output
Digital Audio I/O:
- 1x AES3 Input
- 1x AES3 Thru
Performance
Frequency Response
+/- .8 dB 20 Hz to 20 kHz (30 Ohm load)
+/- .2 dB 20 Hz to 16 kHz (10 kΩ load)
THD+N:
< .05% (20 Hz to 20 kHz, 30 Ohm load)
< .004% (20 Hz to 20 kHz, 10 kΩ load)
Input Impedance
100 kΩ AES
10 kΩ analog
Total Gain: 20 dB
Maximum Input level
+0 dBfs (5 Vpp) AES
+3 dBV analog
Maximum output level: +4 dBV
Noise at unity gain: < -98 dBV
Power
Power requirements: 6 VDC @ 300mA (Power Adapter included)
Short circuit protection: Withstands shorted output at full level indefinitely
