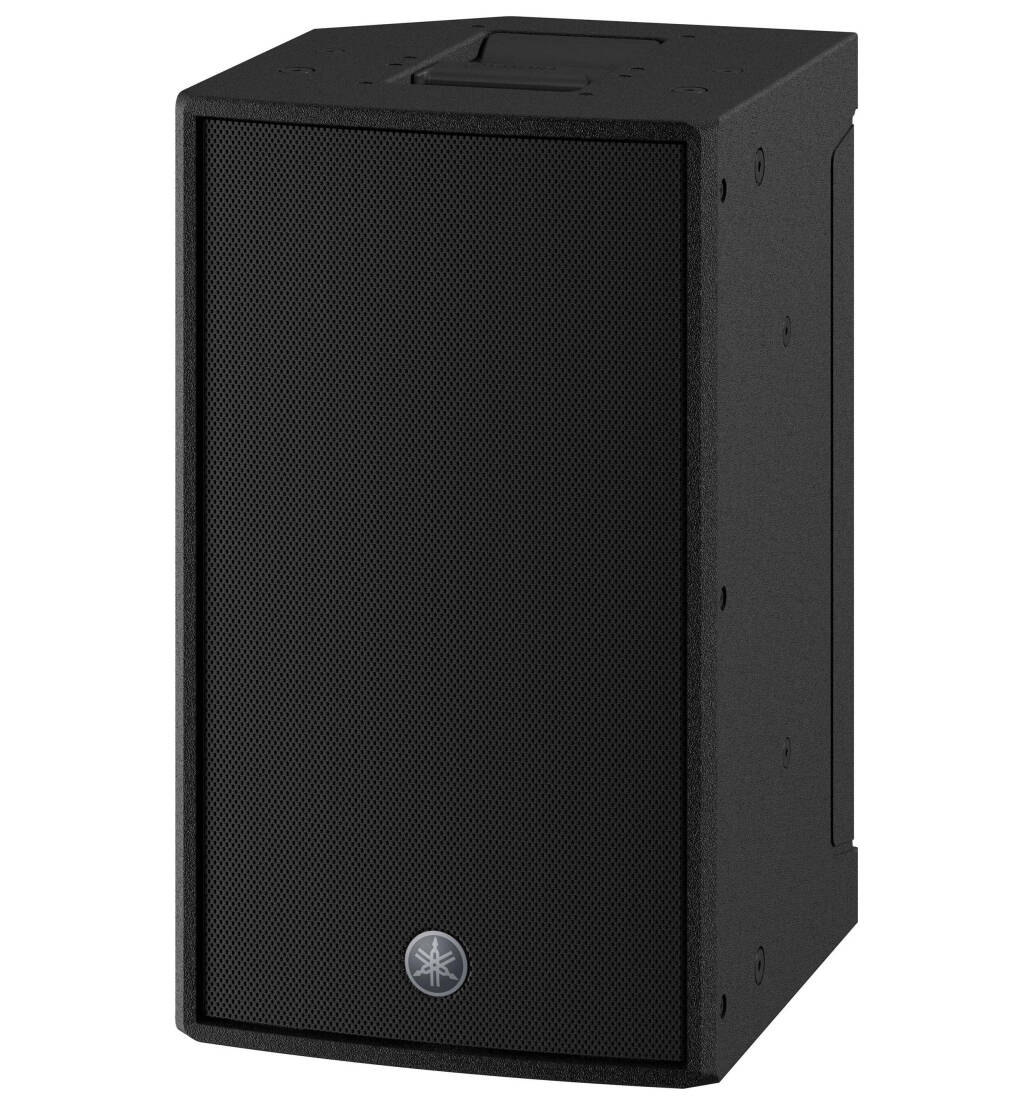

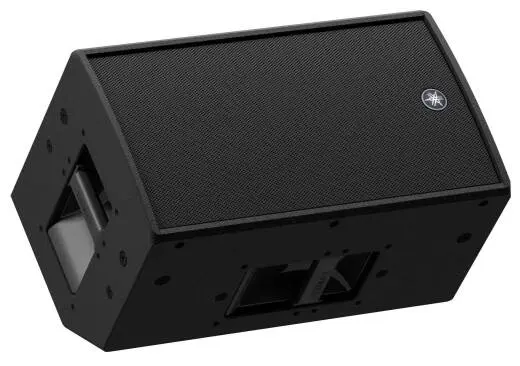

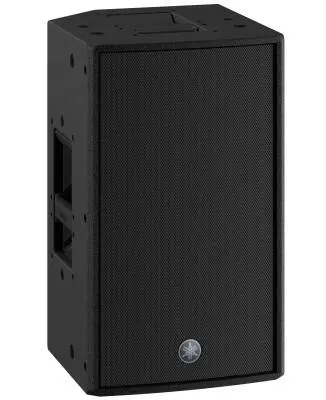

Yamaha CRZ10 10'' 700W 2-Way Loudspeaker
Additional Photos:
Product Videos :
Related Products
Description
The CZR Series features 15", 12" and 10" models with transducers with die-cast aluminum frames with a 3" voice coil for very high power input, and a lightweight yet powerful neodymium magnet that helps to add punch and power to your bass. The HF unit achieves vivid, soaring highs from its titanium diaphragm with a 2" voice coil and neodymium magnet. Like the DZR, the CZR models also feature the rotatable constant directivity horn design (90° x 50° for the CZR15, and 90° x 60° for the CZR12 and CZR10) for increased flexibility in mounting vertically or horizontally.
Features
• 2-way loudspeaker with a 2" HF and a 10" LF• Features Yamaha's own Wide Dispersion CD Waveguide Horn
• High power 700W (PGM) power handling and Bi-amp capable
• Floor monitoring setting
• Lightweight yet very durable plywood cabinet with premium graded Polyurea coating
• Dual-angle pole socket
• Optional speaker cover (SPCVR-DZR10, sold separately)
• Rotatable horn and variety of U-bracket options (UB-DZR10H/V) for rigging allow for very flexible setup and speaker placement
Specifications
Speaker type: 2-way Speaker, Bass-reflexFrequency range (-10dB): Passive: 43 Hz - 20 kHz, Normal (*1): 46 Hz - 20 kHz, FOH (*1): 43 Hz - 20 kHz
Coverage area: H90°x V60° Rotatable Constant Directivity Horn
Floor Monitor Angle: 50°
Components

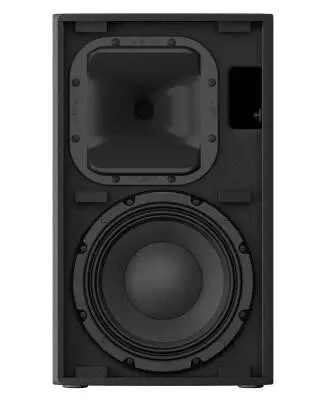

LF: 10" Cone, 3" Voice Coil, Neodymium magnet
HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover: 2.5 kHz
Power rating:
NOISE: Passive (EIA 426-A) 350 W, Bi-amp LF (EIA 426-A): 350W, HF (AES): 50W
PGM: Passive (EIA 426-A) 700 W, Bi-amp LF (EIA 426-A): 700W, HF (AES): 100W
PEAK: Passive (EIA 426-A) 1400 W, Bi-amp LF (EIA 426-A): 1400W, HF (AES): 200W
Nominal impedance
Passive: 8Ω, Bi-amp: LF: 8Ω, HF: 16Ω
SPL
Sensitivity (1W; 1m on axis): Passive: 95dB SPL, Bi-amp: LF: 95dB SPL, HF: 108dB SPL
Peak (Calculated): Passive: 127 dB SPL, Bi-amp: LF: 127dB SPL, HF: 131dB SPL
I/O connectors: SpeakON NL4MP x 2 (Parallel)
Handle: Aluminium die-cast, Top x1, Side x1
Pole socket: ⌀35 mm x2 (0° or -7°)
Rigging: M10 x 8, M8 x 2
Dimensions (W x H x D): 315 mm x 537 mm with rubber feet x 345 mm (12.4" x 21.1" x 13.6")
Net weight: 14.0 kg (30.9 lbs)
Others: Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black/White
*1: With recommended DSP processing.
