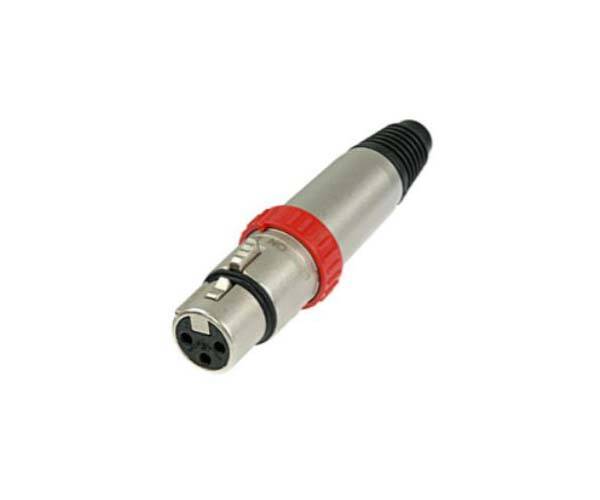

Neutrik 3 Pole Female Cable Connector w/On-Off Switch - Nickel

FX cable connector with noiseless ON-OFF switch short-circuiting contacts 2+3. For use with a microphone without switch.

Features

• Built in noiseless ON-OFF switch short-circuiting contacts 2 + 3
• For use on a microphone without switch
• Rugged zinc diecast shell, long lasting and durable
• Rugged metal boot
• Chuck type strain relief system for secure clamping of cables
• Boot with rubber gland gives high protection against bending stresses

Specifications

Connection Type: XLR
Gender: female

Electrical
Capacitance between contacts: ≤ 4 pF
Contact resistance: ≤ 3 mΩ
Dielectric strength: 1.5 kVdc
Insulation resistance: > 10 GΩ (initial)
Rated current per contact: 16 A
Rated voltage: < 50 V

Mechanical
Cable O.D.: 3.5 - 7.0 mm
Insertion force: ≤ 20 N
Withdrawal force: ≤ 20 N
Lifetime: > 1000 mating cycles
Wiresize: max. 2.5 mm
Wiresize: max. 14 AWG
Wiring: Solder contacts
Locking device: Latch lock

Material
Boot: Polyurethan
Contact plating: 0.2 um Au hard alloy over 2 m Ni
Contacts: Bronze (CuSn6)
Insert: Polyamide (PA66)
Locking element: St3K32 (latch) / Ck 67 (spring)
Locking element plating: Nickel
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Nickel
Strain relief: Polyacetal (POM)

Environmental
Flammability: UL 94 V-0
Standard compliance: IEC 61076-2-103
Protection class: IP 40
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
