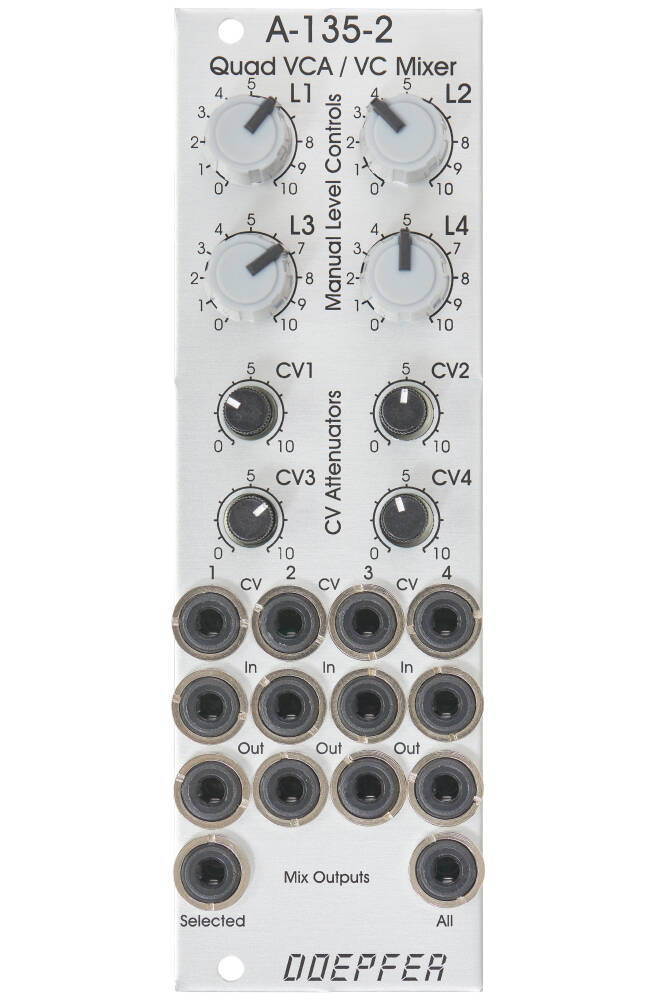

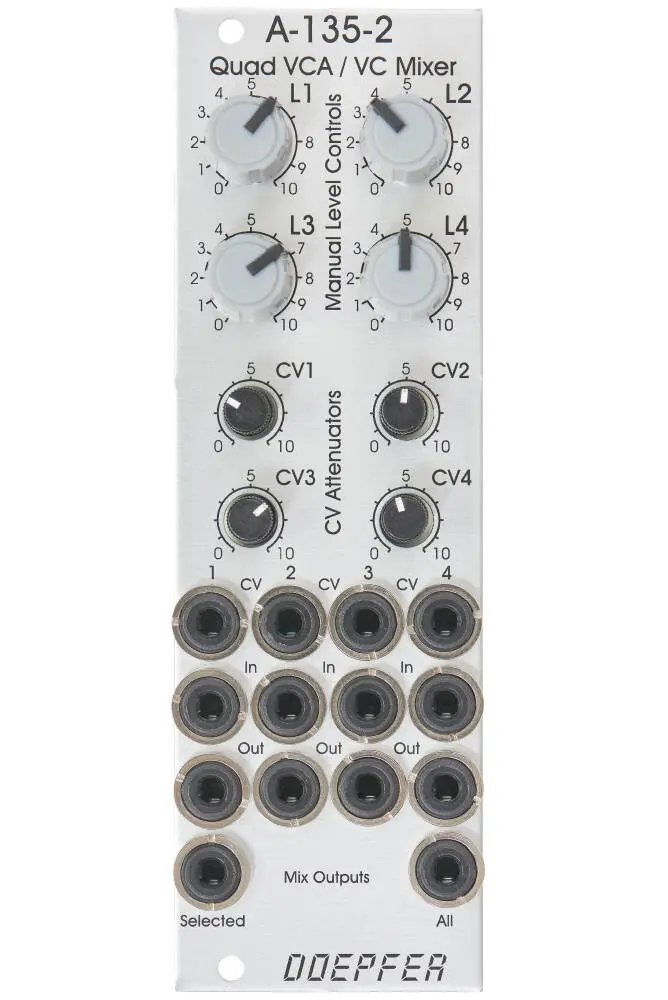

Doepfer A-135-2 Voltage Controlled Mixer
Related Products
Description
A-135-2 is a miniature version of the A-135-1. Behind a front panel with 8 HP only four linear VCAs (voltage controlled amplifiers) and a voltage controlled mixer based on the VCAs are available
Control voltage input with associated attenuator: (CV1 - CV4), for the full VCA control range about 0 - +5V control voltage are required (attenuator fully clockwise), for higher control voltages the attenuator is used, the attenuators are without knobs, just plastic shafts with white marker
Signal Input
Signal Output
All inputs and outputs are DC coupled. Consequently the VCAs can be used to process both audio and control voltages (e.g. to control the level of LFOs or envelopes)
Specifications
Level: (manual control of the VCA amplification), small rubberized knob (L1 - L4)Control voltage input with associated attenuator: (CV1 - CV4), for the full VCA control range about 0 - +5V control voltage are required (attenuator fully clockwise), for higher control voltages the attenuator is used, the attenuators are without knobs, just plastic shafts with white marker
Signal Input
Signal Output
All inputs and outputs are DC coupled. Consequently the VCAs can be used to process both audio and control voltages (e.g. to control the level of LFOs or envelopes)
