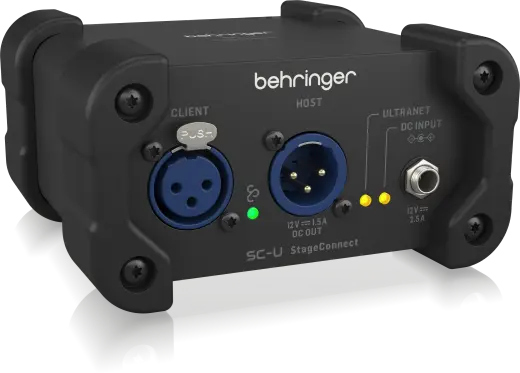

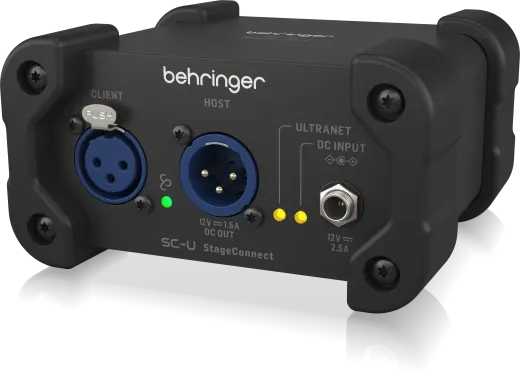

Behringer 32-Channel USB StageConnect Interface

Features

• 3-way bridge between StageConnect systems, multi-channel USB audio and Ultranet systems, such as the Behringer P16 products
• Compact and sturdy enclosure the size of a DI box
• Communication between systems with different word clocks/sample rates via asynchronous 32-channel sample rate conversion (0.4 ms latency, 140 dB dynamic range)
• StageConnect 32-channel bidirectional audio transmission with sub-millisecond latency at 44.1/48 kHz and 24 bits over standard 3-pin XLR DMX or mic cable
• MIDI data transmission from USB host computer to StageConnect bus
• Host connector for multi-channel audio connections with other with other StageConnect devices
• Client connector for daisy-chaining multiple devices
• External DC power supply included

Specifications

Processing
StageConnect Bus: 32 Channels, 44.1/48 kHz, 24-bit PCM audio
I/O Latency: 0.1 ms

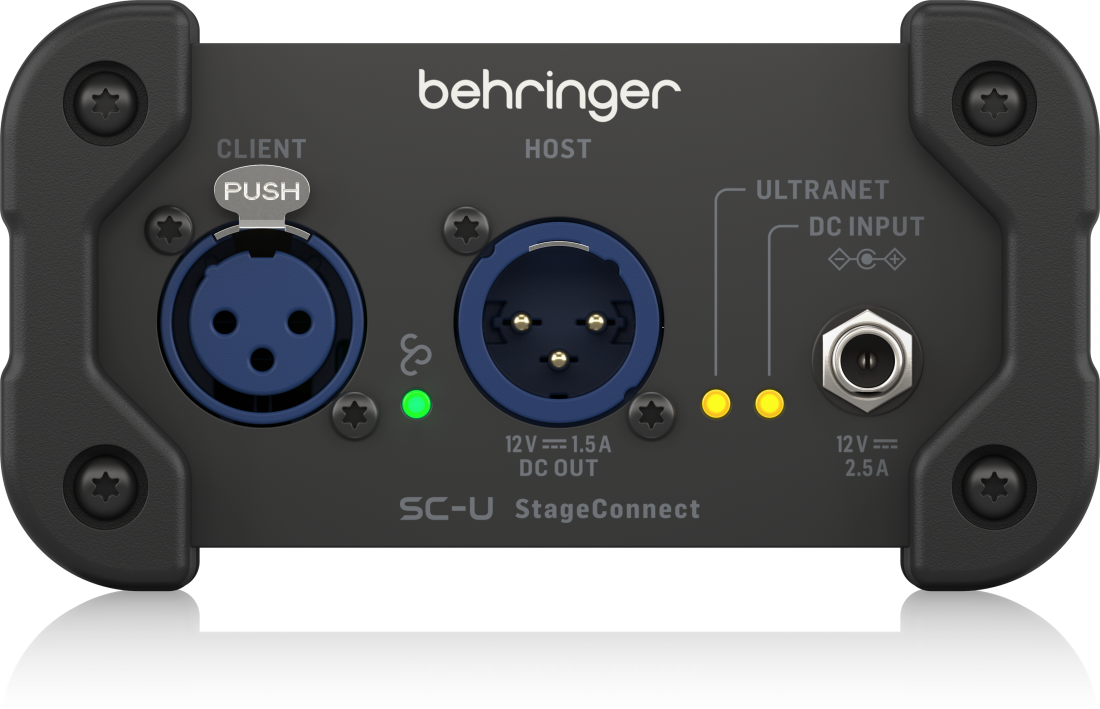

Connectors
Ultranet: 2 x RJ45
Shielded CAT5e Cable: Max 75 meters
StageConnect: 1 XLR male, 1 XLR female
Shielded balanced 110Ω DMX cable: Max 40 meters

USB
Type C
USB Audio In/Out Configurations: 32 In/0 Out, 24 In/8 Out, 16 In/16 Out, 8 In/24 Out
USB Audio Class 2 Compatible with OS
Windows 10, 11 (ASIO/WDM), OSC (CoreAudio), Linux

Power
Power Supply: 12 V DC / 2.5 A, 30 W adapter included. Remote power input via SC Client (female). Remote power output via SC Host (male).
12 V DC / 1.5 A, 18 W
Power Consumption: 2 W
