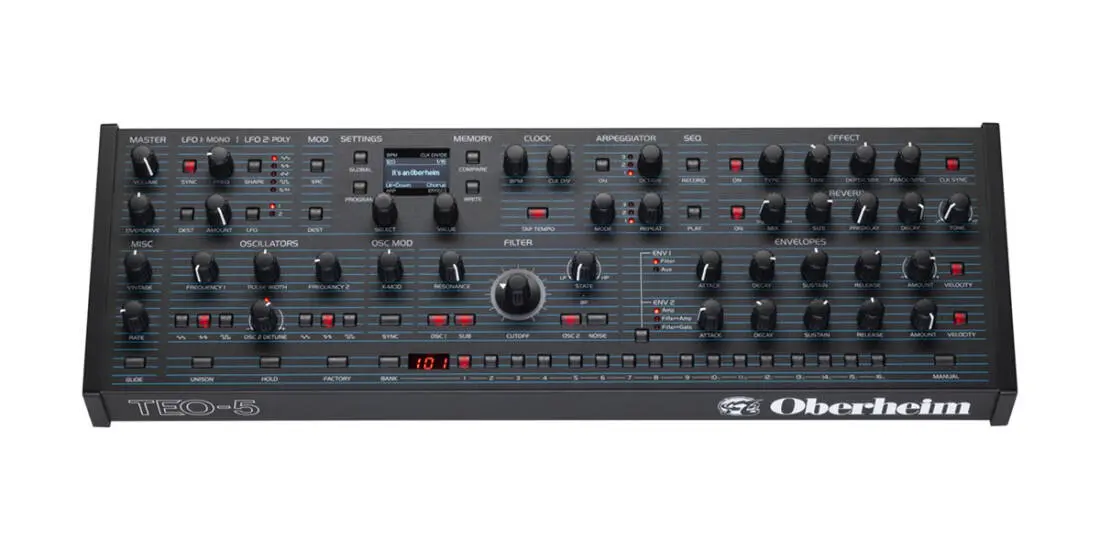

Oberheim TEO-5 Compact 5-Voice Polyphonic Desktop Module
Additional Photos:
Related Products
Description
Compact Oberheim polysynth with legendary SEM tone and modern through‑zero FM. The TEO-5 desktop module integrates effortlessly into your synth setup, offering all the sonic power and hands-on control of its acclaimed keyboard sibling in less than half the size.
Specifications
Voice Path- 5-voice, 2x VCOs with saw, square/pulse, triangle, and noise
- Oscillator hard sync and X-Mod with linear through-zero FM
- Simultaneously selectable wave shapes plus sub-oscillator
- Discrete SEM-lineage VCF delivers authentic Oberheim tone and presence
- Filter State knob morphs from low-pass to high-pass through notch, with selectable band-pass mode
- Poly and Mono LFOs with 5 wave shapes and tempo sync
- Meticulously modeled envelope responses based on OB-8
- Modulation matrix with 19 slots x 19 sources x 64 destinations in a flexible design where almost any mod route is possible, including audio rate sources and destinations.
- Enhanced unison allows variable voice stacking from 1-5 voices
- Polyphonic portamento
- Vintage knob recreates vintage synth characteristics by adding voice-to voice variations in component behavior
- Full-featured arpeggiator
- Polyphonic step sequencer with up to 64 steps
- One dedicated reverb effect with damping, pre-delay, decay and tone
- One multi-effect with stereo delay, BBD delay, tape delay, chorus, flanger, Oberheim phase shifter and ring modulator emulations, vintage rotating speaker, distortion, high-pass filter and Lo-Fi
- Dedicated overdrive effect
Hardware
- 256 factory programs in classic and modern styles, with storage space for 256 more custom user programs
- Direct program access, including single-button access to the current set of 16 programs
- Velocity sensitivity adds expressiveness to volume and filter
- Channel Aftertouch adds real-time performance-based modulation
- Modulation wheel and spring-loaded pitch wheel with selectable range per program (wheels on keyboard version only)
- Hold switch latches held notes on
- Manual switch: when on, the front panel is live; what you see is what you hear
- Transpose controls for +/- 2 octaves range (keyboard version only)
- Integral, fanless, heatsink-free power supply
- High-resolution OLED display enables patch management and easy access to advanced features
- Dimensions: 21" L x 7" W x 3.5" H
- Weight: 6.8 lbs.

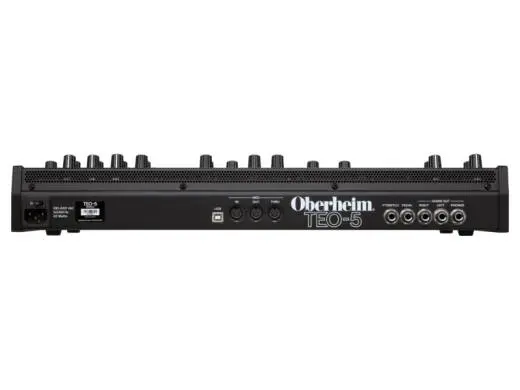

Ins & Outs
- Right, Left and Headphone outputs
- Footswitch sustain and expression pedal inputs
- 5-pin DIN MIDI In, Out, Thru
- USB MIDI
