Sequential Take 5 Compact Poly Synth Desktop Module
Additional Photos:
Related Products
Description

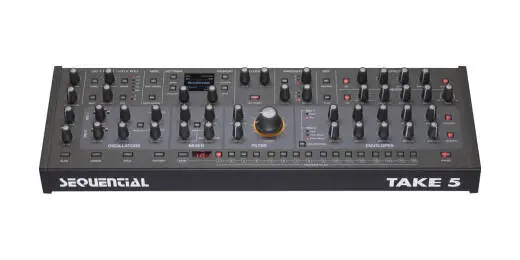

The Sequential Take 5 desktop module is a compact, full-featured, full-throttle VCO/VCF-based poly synth. Building on the success of the Take 5 keyboard, the desktop module features the same powerful analog oscillators and filters that deliver the iconic warmth and depth of the Prophet-5 enhanced with modern modulation options and studio-quality digital effects. Now, that sought-after sound comes in a space-saving design that's ideal for both studio setups and live performances where portability and efficiency are paramount.

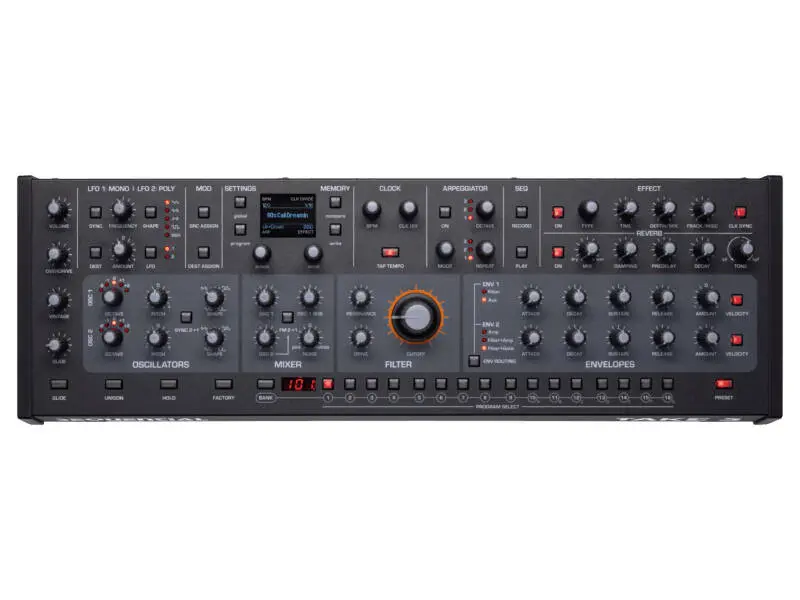

The Take 5 Desktop Module offers the same hands-on, knob-per-function experience as its keyboard counterpart, making sound design intuitive and immediate. Users can dive deep into sound creation with straightforward controls that make it fast and easy to shape and refine their sound.
Perfect for smaller studios, bedroom setups, or mobile rigs, the Take 5 Desktop Module brings Sequential's signature sound to a wider audience than ever before. It's designed to make music-making easier, more fun, and more accessible-wherever inspiration strikes.
Features
• Two analog VCOs per voice• Continuously variable wave shape (sine, sawtooth, variable-width pulse) per oscillator
• Hard sync: oscillator 1 syncs to oscillator 2
• Square wave sub-octave generator (oscillator 1) per voice
• Keyboard tracking on/off for each oscillator
• Front-panel FM (frequency modulation)
• Four-pole, resonant, low-pass filter per voice, based on Prophet-5 Rev 4 design
• Filter can be driven into self-oscillation with the Resonance control
• Bi-polar filter envelope amount
• Two 5-stage envelope generators (ADSR + delay) with variable routing (filter, amplifier, auxiliary)
• Velocity modulation of each envelope amount
• Envelopes freely assignable to multiple modulation destinations
• 1 Global LFO and 1 Per-Voice LFO
• Five LFO wave shapes: triangle, sawtooth, reverse sawtooth, square, and random (sample and hold)
• LFO Clock sync (internal or external MIDI clock)
• LFOs freely assignable to multiple modulation destinations
Specifications
Hardware- Hold switch latches held notes on
- Polyphonic glide (portamento)
- Unison (monophonic) mode with configurable voice count, from one to all five voices, and key modes
- Factory switch: when off, the front panel is live; what you see is what you hear
- 21" L x 7" W x 3.5" H (53.3 cm x 17.8 cm x 8.9 cm)
- Weight: 6.8 lbs. (3.08 kg)

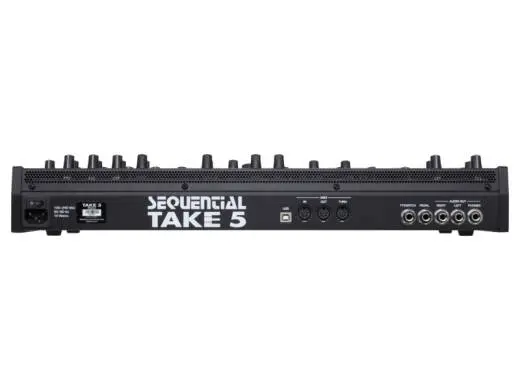

Inputs and Outputs
- 1 MIDI In, 1 MIDI Out, and 1 MIDI Thru port
- USB port for bidirectional MIDI communication
- 1 Sustain/footswitch input
- 1 Expression pedal input
- Main stereo output (2 x 1/4" phone jack)
- Headphone out (stereo 1/4" phone jack)
- IEC AC power inlet for internal power supply
- Power supply operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz; 14 watts maximum power consumption
